Discontinued | This Item is No Longer Available

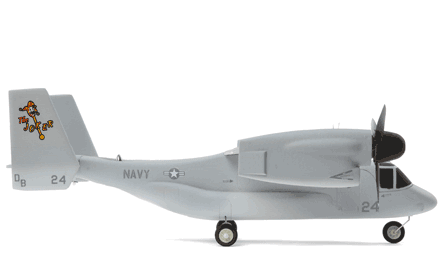

V-22 Osprey VTOL PNP, 487mm

Item No.
E-flite - EFL9675
Selected Store

Introduction

The Bell Boeing V-22® Osprey is an innovative and unique multi-role combat aircraft that combines the functionality and vertical performance of a helicopter with the long-range, high-speed forward flight performance of an airplane. The tremendous advantages these capabilities offer is why multiple branches of the US military use it in a variety of roles from equipment and troop transport, to search and rescue, special operations and beyond. The E-flite® V-22 Osprey is an officially-licensed replica of the amazing VTOL (Vertical Take Off and Landing) capable tiltrotor aircraft that features an exclusive flight control system that makes it possible to fly in both helicopter/multirotor and airplane flight.

Needed to Complete
  • (1) Full-range 6+ Channel Transmitter and Serial Receiver
  • (1) 3S 11.1V 800mAh 30C LiPo with JST Connector
  • (1) Compatible LiPo charger
What's in the Box?
  • (1) E-flite V-22 Osprey VTOL with:
    • (3) Brushless ESCs (installed)
    • (3) Brushless Outrunner Motors (installed)
    • (5) Sub-Micro Servos (installed)
    • (1) Flight Controller (installed)
  • (1) Decal Sheet
  • (1) Set of Spare Main Props
  • (1) Product Manual

Overview

The E-flite® V-22 Osprey is the scale VTOL (Vertical Take Off and Landing) model you've always wanted. It's an officially-licensed replica of the unique and innovative Bell Boeing tiltrotor aircraft that combines the vertical functionality of a helicopter with the forward flight performance of an airplane. The exclusive flight control system makes it possible to fly in both helicopter/multirotor and airplane flight, and the optimized software makes the transition so simple and predictable that you will feel comfortable and confident even on your first flight. Simply flip the flight mode switch and the V-22 will automatically adjust the tiltrotor positions to transition into forward or hovering flight.

Best of all you can have the V-22 in the air in almost no time at all! The airframe arrives fully-assembled with a factory-installed flight controller, servos, motors and ESCs (plus a Spektrum™ serial receiver in the BNF Basic version). It's also factory-finished in multicolor paint, and the included decal sheet allows you to customize the finish with multiple military branch trim scheme options. The super-simple transmitter setup only requires assigning one switch for flight mode selection, then you're ready to install a fully charged 3S 11.1V 800mAh LiPo battery (sold separately) to fly. You also have the choice to install the landing gear with a castering nose wheel so you can taxi and perform 'rolling' take offs and landings, or you can leave it off to enjoy the 'retracted' gear look.

The E-flite V-22 Osprey's incredible vertical takeoff and landing capabilities, combined with its compact size and lightweight yet durable composite-reinforced EPO airframe, makes it possible to fly in places and spaces many other RC models can't. And no matter where you fly it, the V-22 delivers a scale VTOL flying experience that's unlike any other- and is a proud tribute to the groundbreaking original.

Key Features

  • The scale VTOL (Vertical Take Off and Landing) capable model you've always wanted
  • Officially-licensed replica of the unique and innovative Bell Boeing V-22® Osprey tiltrotor aircraft
  • Combines the vertical functionality of a helicopter with the forward flight performance of an airplane
  • Compact size so it can be flown in more places and smaller spaces, including indoors
  • The exclusive and expertly tuned flight control system makes it all possible
  • Automatic transition between helicopter/multirotor and airplane flight
  • Stability and Acro flight modes deliver a wide range of performance
  • Super-simple transmitter setup- no complex programming required
  • Powerful brushless motors compatible with 3S 800mAh batteries
  • Factory-installed flight controller, servos and power systems
  • Included decal sheet offers multiple trim scheme options
  • Lightweight and extremely durable EPO airframe
  • Factory-finished and no assembly required
  • FPV-ready (recommended camera and video transmitter sold separately)
Exclusive Flight Control Software Makes it Possible

At the heart of it all is exclusive flight control software that has been expertly tuned by our engineers. The end result makes it possible for many RC pilots with both airplane and helicopter/multirotor flight experience to successfully enjoy scale VTOL flight.

Exclusive Flight Control Software Makes it Possible
Automated Transition

Making the transition between helicopter/multirotor and airplane flight is as simple as flipping a single switch. The flight controller will automatically rotate the tiltrotors and activate the control surfaces as needed.

Automated Transition
Three Flight Modes

Easy-to-use Stability and Acro flight modes deliver a wide range of performance:

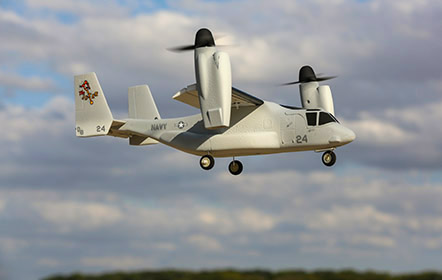

Multirotor Stability Mode

Multirotor Stability Mode limits pitch and bank angles and automatically self-levels the aircraft when you release the sticks. This helps to prevent crashes and makes it possible to take off and land vertically like a pro, even if you've never flown a VTOL aircraft before.

Multirotor Stability Mode

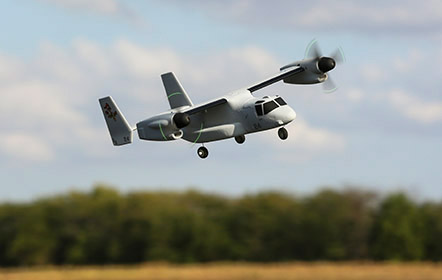

Airplane Stability Mode

Airplane Stability Mode automatically rotates the tiltrotors and activates the control surfaces for airplane flight. Pitch and bank angle limits, plus automatic self-leveling when you release the sticks, work to help prevent crashes.

Airplane Stability Mode
Airplane Acro Mode

There are no angle limits and self-leveling is no longer active in the Airplane Acro Mode. This allows for tighter maneuvering and even provides the capability to perform some aerobatic maneuvers including loops and rolls.

Airplane Acro Mode
Super-Simple Setup

This Plug-N-Play® version is ready to accept your 6+ channel Spektrum DSMX® or DSM2® compatible serial receiver that easily connects to the factory-installed flight controller for use with a full-range 6+ channel transmitter. No complex transmitter setup or programming is required. A single 3-position switch is used for selecting between the three flight modes.

Super-Simple Setup

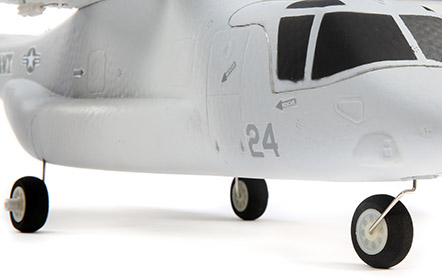

Landing Gear Options

No tools are required to install (or remove) the included landing gear that features a castering nose wheel so you can taxi and perform 'rolling' take offs and landings. Or you can leave it off to simulate a 'retracted' gear look and for added performance.

Landing Gear Options

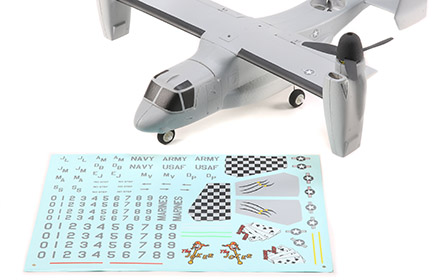

Customizable Trim Scheme

The included decal sheet allows you to customize the factory-painted finish with multiple military branch trim scheme options.

Customizable Trim Scheme

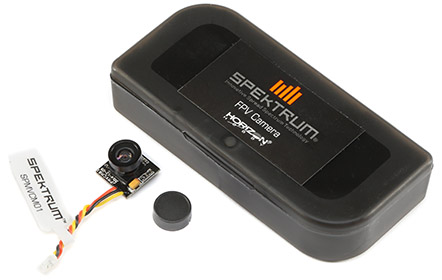

FPV (First-Person View) Ready

For an FPV flying experience like no other, the V-22 Osprey is set up to accommodate and power the recommended FPV camera and video transmitter (both sold separately)

FPV (First-Person View) Ready

Product Specs

Approximate Assembly Time
Less than 1 Hour
Approximate Flight Time
4 minutes
CG (Center of Gravity)
0.98 - 1.2" (25 - 30mm) from the leading edge of the wing root
Charger
Sold Separately
Completion Level
Plug-N-Play
Material
EPO foam
Minimum Required Radio
Full range 2.4GHz 6-channel TX & RX with Spektrum DSMX technology
Motor Size
Two 2250Kv, one 4000Kv
Power Type
Electric
Product Length
19.2" (487mm)
Propeller Size
5 x 3, 2 x 1.8
Recommended Motor Battery
3S 800mAh with JST connector required
Servos
Two 5g sub micro analog air servos, three 3.7g sub micro analog air servos
Wing Area
62 sq in (4 sq dm)
