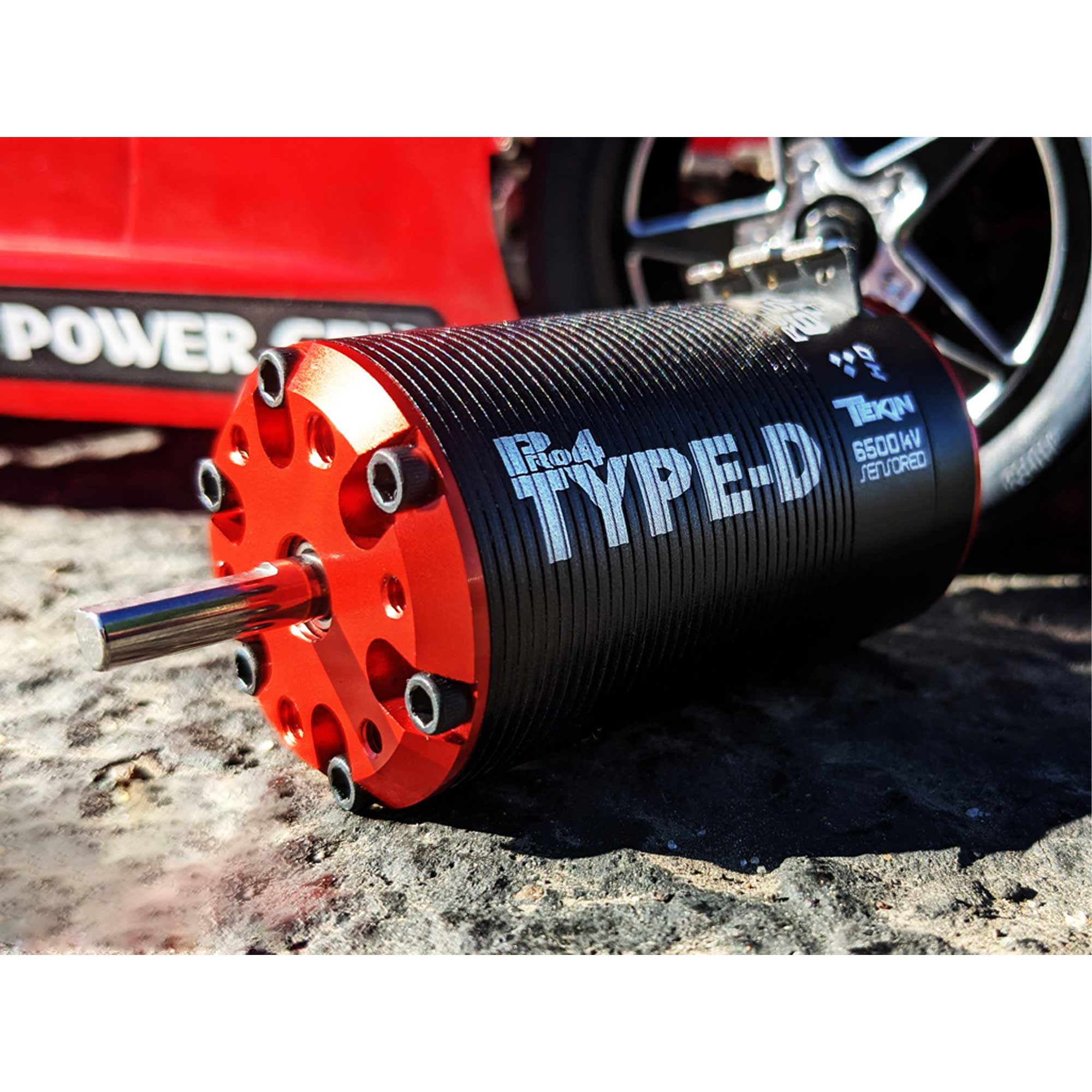

Pro4 Type-D Drag Motor, Brushless, 1D 6500kv, 5mm Shaft

Brushless
Item No.
Tekin - TEKTT2535
Write a Review
$159.99
RC Club points earned on this item shown at checkout.
Product $159.99
Add Ons
Estimated Total: $159.99
Estimated Total: $159.99
The link to Pro4 Type-D Drag Motor, Brushless, 1D 6500kv, 5mm Shaft has been copied
Selected Store

Overview

Utilizing an oversized Ultra Torque HD Rotor and the highest quality materials available, we designed the TYPE-D Drag Motor to deliver more power across all RPMS. From Pro Mod to Street Eliminator classes, these PRO series motors create huge power whenever you need it. The PRO4 Type-D is competition performance with the power and speed you need to win.

  • 4 Pole 12 Slot Hi-Torque Motor Design
  • Long Can 550 Size Provides More Power And Torque
  • CNC Machined 6061 T6 Billet Aluminum Heatsink Can
  • Drag Race Specific
  • 5mm Output Shaft

Features

  • 4 Pole 12 Slot Hi-Torque Motor Design
  • Long Can 550 Size Provides More Power And Torque
  • CNC Machined 6061 T6 Billet Aluminum Heatsink Can
  • Drag Race Specific
  • 5mm Output Shaft
  • Neodymium Sintered Magnets
  • Rebuildable Design
  • High Purity Copper Windings Maximizes Efficiency
  • Precision Engineered For Maximum Energy Conversion
  • Dual-Plug Sensor Wire Harness For Use With All Sensored And Sensorless Systems
  • High RPM ABEC5 Oversized Bearings
  • Oversized Front Bearing Adds Durability

Product Specs

Application
1/10 Drag Racing
Input Voltage
1-2S LiPo/LiHV 4.3-8.7V
Motor Type
Brushless
Number of Poles
4
Outer Diameter
1.41" (36 mm)
Product Length
2.5" (64 mm)
Product Weight
7.8oz / 221g
RPM/Volt (Kv)
6500
Shaft Diameter
0.196" (5 mm)
Shaft Length
0.6023622" (15 mm)
Tekin's PRO4 motor lineup introduces the TYPE-D, a purpose-built 4-pole 12-slot HD No Prep Drag Racing Motor.

Product Details

icon-box
In The Box
  • (1) Pro4 Type-D Drag Motor
Pro4 Type-D Drag Motor, Brushless, 1D 6500kv, 5mm Shaft
