- Speed: @4.8V .16sec/60' / @6.0V .14sec/60'
- Torque: @4.8V 41.66oz/in / @6.0V 48.60oz/in
- High Torque and Precision Centering
- Rugged Metal Gears
- Ball Bearing-Supported Output Shaft
- Perfect for Applications where a Standard Servo is too Heavy or Large but Standard Torque is Required
Product Specs
Application
Small Glow, Electric Aircraft, Helicopters, Cars, Boats
Bearing
Top Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Current Draw Idle
8mA
Current Draw Stall
1,200 mA
Deadband
>5µs
Gear Type
Metal
Input Voltage
4.8V ~ 6.0V
Maximum Servo Speed
0.16 sec/60 deg @ 4.8V, 0.14 sec/60 deg @ 6.0V
Maximum Servo Torque
42oz/in @ 4.8V, 49oz/in @ 6.0V
Motor Type
Brushed
Product Height
1.18" (30 mm)
Product Length
1.14" (29 mm)
Product Weight
0.77oz (21.9g)
Product Width
0.51" (13 mm)
Programmable
No
Servo Operating Voltage
4.8 - 6.0V
Servo Size Category
Micro
Servo Type
Analog
Spline Count
24 - Tooth
Water-Resistant
No
Wire Gauge
28 AWG
Compatibility
Spektrum - SPMAR10400T
Spektrum - SPMAR14400T
Spektrum - SPMAR20400T
Spektrum - SPMAR410
Spektrum - SPM-1030
Spektrum - SPMAR630
Spektrum - SPM-1031
Spektrum - SPMAR631
Spektrum - SPM-1032
Spektrum - SPMAR637T
Spektrum - SPMAR8020T
Spektrum - SPM-1033
Spektrum - SPMAR8360T
Spektrum - SPMR10110
Tactic RC - TACJ2410
Get Info From Communities

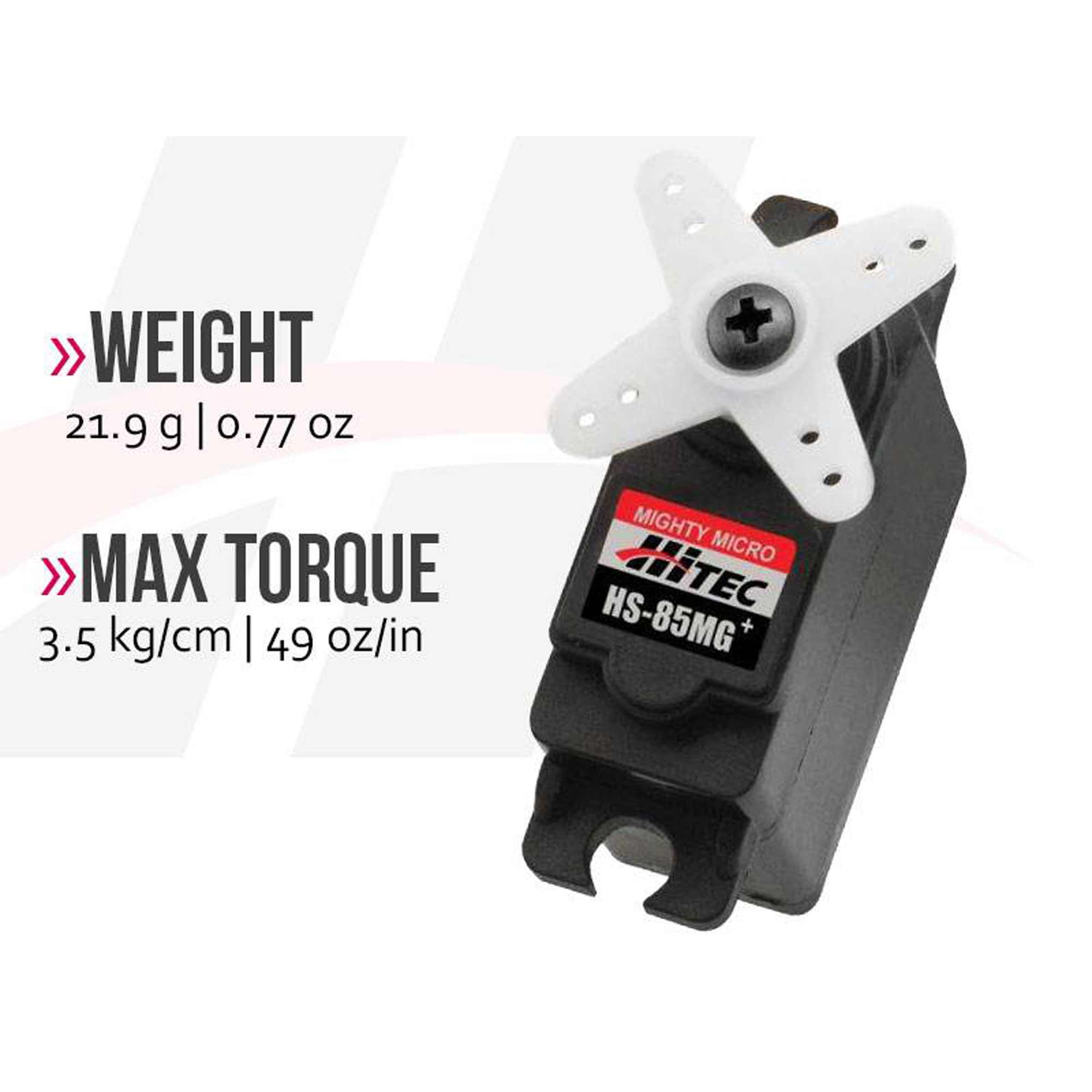

The HS-85MG features a high power motor for greater speed and torque. The HS-85MG is the choice of modelers looking for a high performance servo without breaking the bank. The ball bearing supported output shaft and sturdy gear trains are preferred for smaller glow and electric airplanes, heli’s and sail planes.
Product Details
In The Box
- (1) HS-85MG Micro Analog Metal Gear Servo
