- Speed: @4.8V .18sec/60' / @6.0V .15sec/60'
- Torque: @4.8V 76.37oz/in / @6.0V 94.43oz/in
- Affordable High Speed Metal Gear Servo
- Strong Three-Pole Ferrite Motor
- Heavy Duty Metal Gear Train
- Revolutionary Metal/Plastic First Gear (MP Gear)
- Dual Ball Bearing-Supported Output Shaft
Product Specs
Application
Sport Aircraft, Cars
Bearing
Dual Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Current Draw Idle
9.1 mA
Current Draw Stall
2,500 mA
Deadband
>5µs
Gear Type
Metal
Input Voltage
4.8 - 6.0V
Maximum Servo Speed
0.18 sec/60 deg @ 4.8V, 0.15 sec/60 deg @ 6.0V
Maximum Servo Torque
76oz/in @ 4.8V, 94oz/in @ 6.0V
Motor Type
Brushed
Product Height
1.48" (38 mm)
Product Length
1.59" (40 mm)
Product Weight
1.94oz (55.2g)
Product Width
0.77" (20 mm)
Programmable
No
Servo Operating Voltage
4.8 - 6.0V
Servo Size Category
Standard
Servo Type
Analog
Spline Count
24 - Tooth
Water-Resistant
No
Wire Gauge
22 AWG
Compatibility
Kyosho - KYO34425T1
Pro Boat - PRB08025
Horizon Hobby - HRZ00006
Redcat Racing - RER03778
Tamiya - TAM7255252
RC4WD - RC4ZR0008
Spektrum - SPMSLR300
Spektrum - SPMSR215
Spektrum - SPMSR315
Spektrum - SPMSTX300
Spektrum - SPMAR10400T
Spektrum - SPMAR14400T
Spektrum - SPMAR20400T
Spektrum - SPMAR410
Spektrum - SPM-1030
Spektrum - SPMAR630
Spektrum - SPM-1031
Spektrum - SPMAR631
Spektrum - SPM-1032
Spektrum - SPMAR637T
Spektrum - SPMAR8020T
Spektrum - SPM-1033
Spektrum - SPMAR8360T
Spektrum - SPM9746
Get Info From Communities

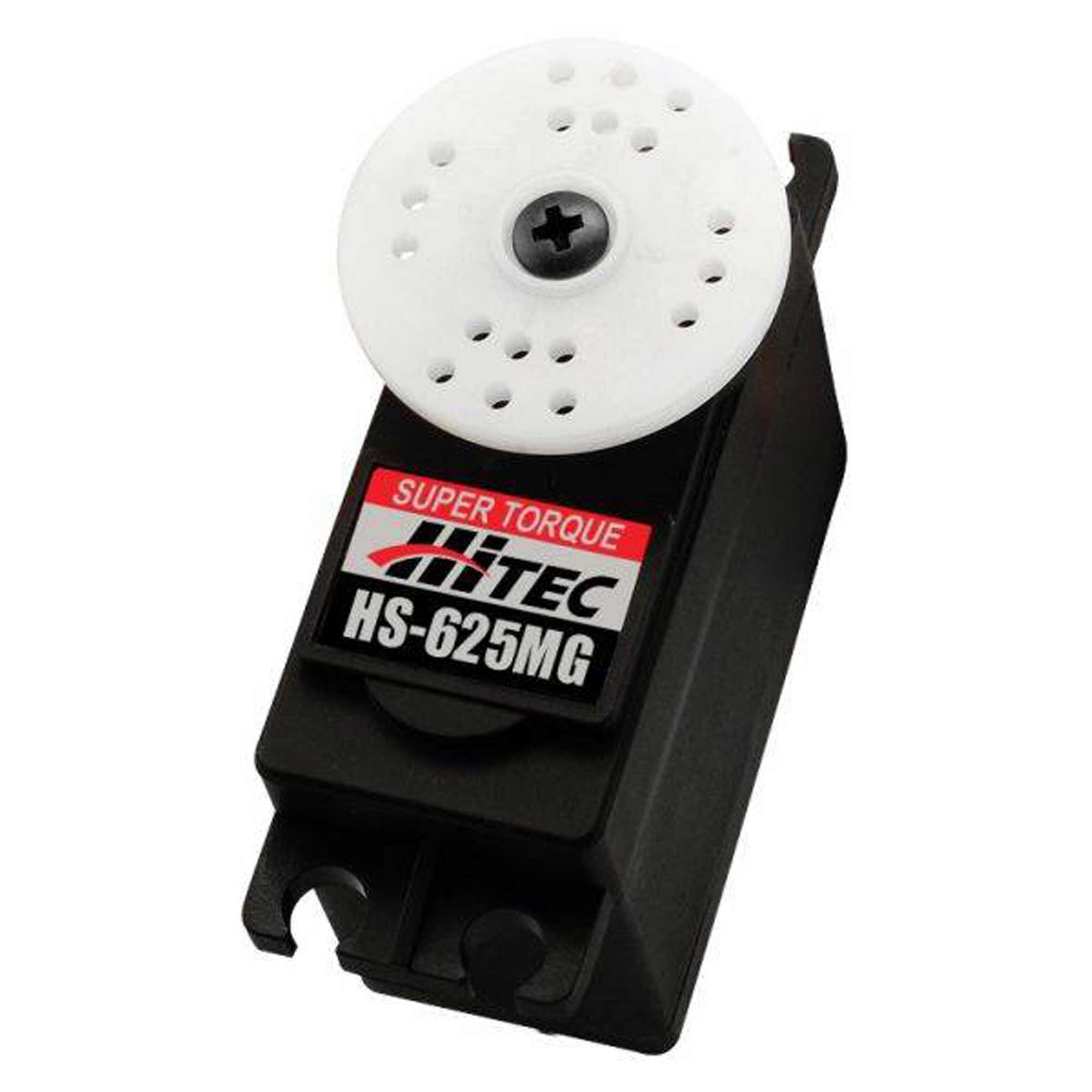

The powerful high speed HS-625MG is a perfect choice for those applications requiring a fast and strong standard size servo. Utilizing our M/P and metal gear train technology, the HS-625MG is a fantastic sport servo for larger planes and 10th scale sport vehicles.
Product Details
In The Box
- (1) HS-625MG Standard Analog Super Torque Metal Gear Servo
