- Speed: @4.8V .17sec/60' / @6.0V .14sec/60'
- Torque: @4.8V 194oz/in / @6.0V 236oz/in
- Quick and Precise Coreless Motor
- Heavy Duty Metal Gears
- 7.4v 2-Cell LiPo Capability
- Standard Programmable Digital Circuit
Product Specs
Application
Sport Aircraft, Helicopters, Cars, Boats
Bearing
Dual Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Current Draw Idle
4 mA
Current Draw Stall
2,700 mA
Deadband
2µs
Gear Type
Metal
Input Voltage
6.0V ~ 7.4V
Maximum Servo Speed
0.17 sec/60 deg @ 6.0V, 0.14 sec/60 deg @ 7.4V
Maximum Servo Torque
194oz/in @ 6.0V, 236oz/in @ 7.4V
Motor Type
Brushed
Product Height
1.49" (38 mm)
Product Length
1.57" (40 mm)
Product Weight
2.10oz (60g)
Product Width
0.78" (20 mm)
Programmable
Yes
Servo Operating Voltage
6.0 - 7.4V (HV)
Servo Size Category
Standard
Servo Type
Digital
Spline Count
24 - Tooth
Water-Resistant
No
Wire Gauge
25 AWG
Compatibility
Kyosho - KYO34425T1
TEKNO RC LLC - TKR9003
Mugen Seiki USA - MUGE2027
Mugen Seiki USA - MUGE2028
Hangar 9 - HAN5280CDLE130
Hangar 9 - HAN5280CDLE170
Hangar 9 - HAN4670CR
Hangar 9 - HAN2390CDLE60T
Hangar 9 - HAN2390CDLE61
Get Info From Communities

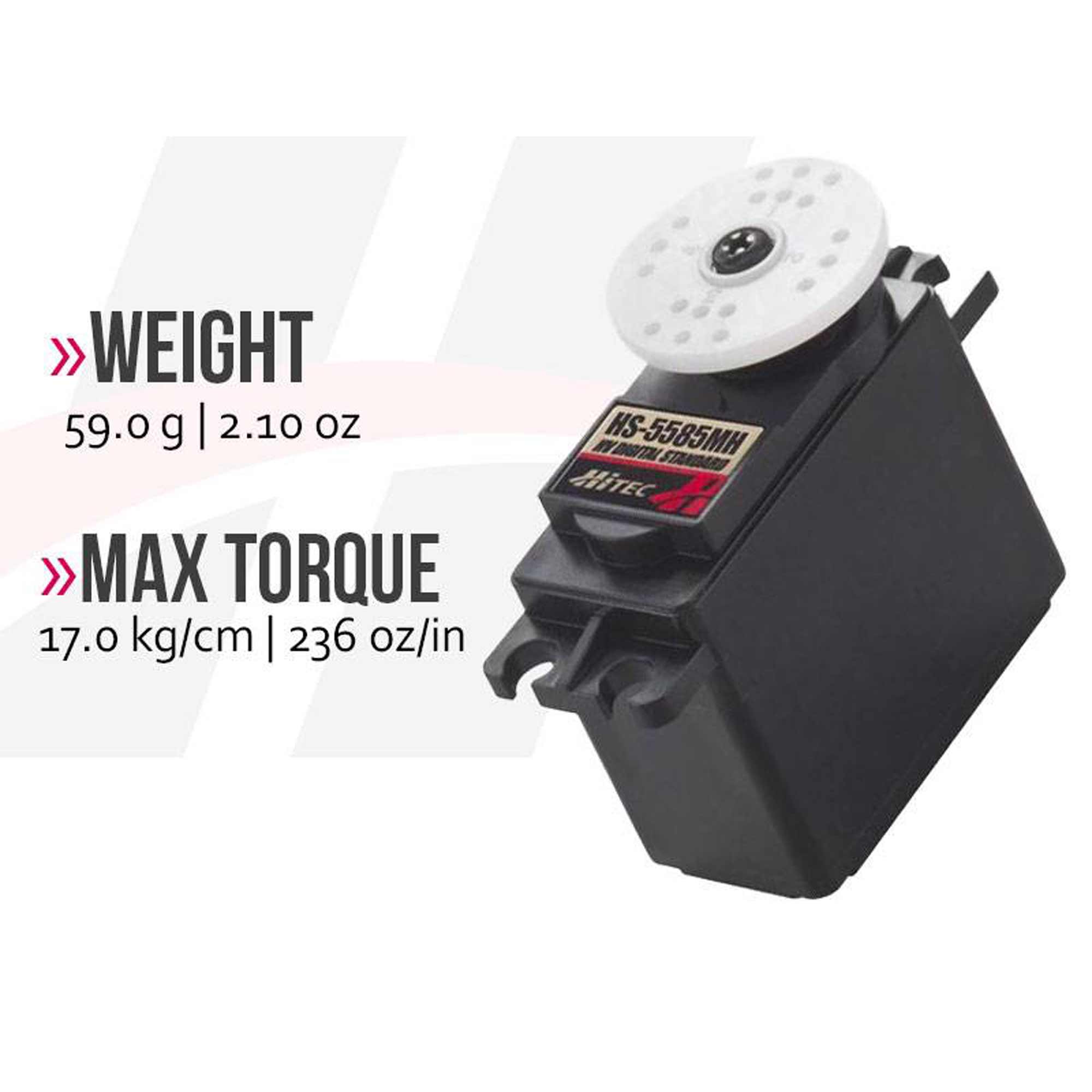

Increase your performance not your budget with the high voltage, high torque, digital HS-5585MH. Featuring a high performance coreless motor, heavy-duty metal gears and dual ball bearings, the HS-5565MH is rated for 7.4 volt, 2S LiPo operation. The HS-5585MH, supplies your 1/10th monster trucks to 1/8th scale buggies and truggies and high performance airplanes up to 35 percent with outstanding strength and precision.
Product Details
In The Box
- (1) HS-5585MH Standard Digital HV High Torque Metal Gear Servo
