- Speed: @4.8V .17sec/60' / @6.0V .13sec/60'
- Torque: @4.8V 50oz/in / @6.0V 60oz/in
- Rugged Metal Gears
- Ball Bearing-Supported Output Shaft
- Standard Programmable Digital Circuit for More Holding Power
- Standard Servo Performance in a Micro Package
Product Specs
Application
50oz park flyers, 42-50oz sport planes, 2M/DLG sailplanes, 1:16 scale on-road, buggies & SC trucks, 1:16 scale power boats
Bearing
Top Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Current Draw Idle
3 mA
Current Draw Stall
1,750 mA
Deadband
2µs
Gear Type
Metal
Input Voltage
6.0V ~ 7.4V
Maximum Servo Speed
0.17 sec/60 deg @ 6.0V, 0.13 sec/60 deg @ 7.4V
Maximum Servo Torque
50oz/in @ 6.0V, 60oz/in @ 7.4V
Motor Type
Brushed
Product Height
1.18" (30 mm)
Product Length
1.14" (29 mm)
Product Weight
0.77oz (21.9g)
Product Width
0.51" (13 mm)
Programmable
Yes
Servo Operating Voltage
6.0 - 7.4V (HV)
Servo Size Category
Micro
Servo Type
Digital
Spline Count
24 Teeth
Water-Resistant
No
Wire Gauge
28 AWG
Compatibility
Spektrum - SPMAR10400T
Spektrum - SPMAR14400T
Spektrum - SPMAR20400T
Spektrum - SPMAR410
Spektrum - SPM-1030
Spektrum - SPMAR630
Spektrum - SPM-1031
Spektrum - SPMAR631
Spektrum - SPM-1032
Spektrum - SPMAR637T
Spektrum - SPMAR8020T
Spektrum - SPM-1033
Spektrum - SPMAR8360T
Spektrum - SPMR10110
Tactic RC - TACJ2410
Get Info From Communities

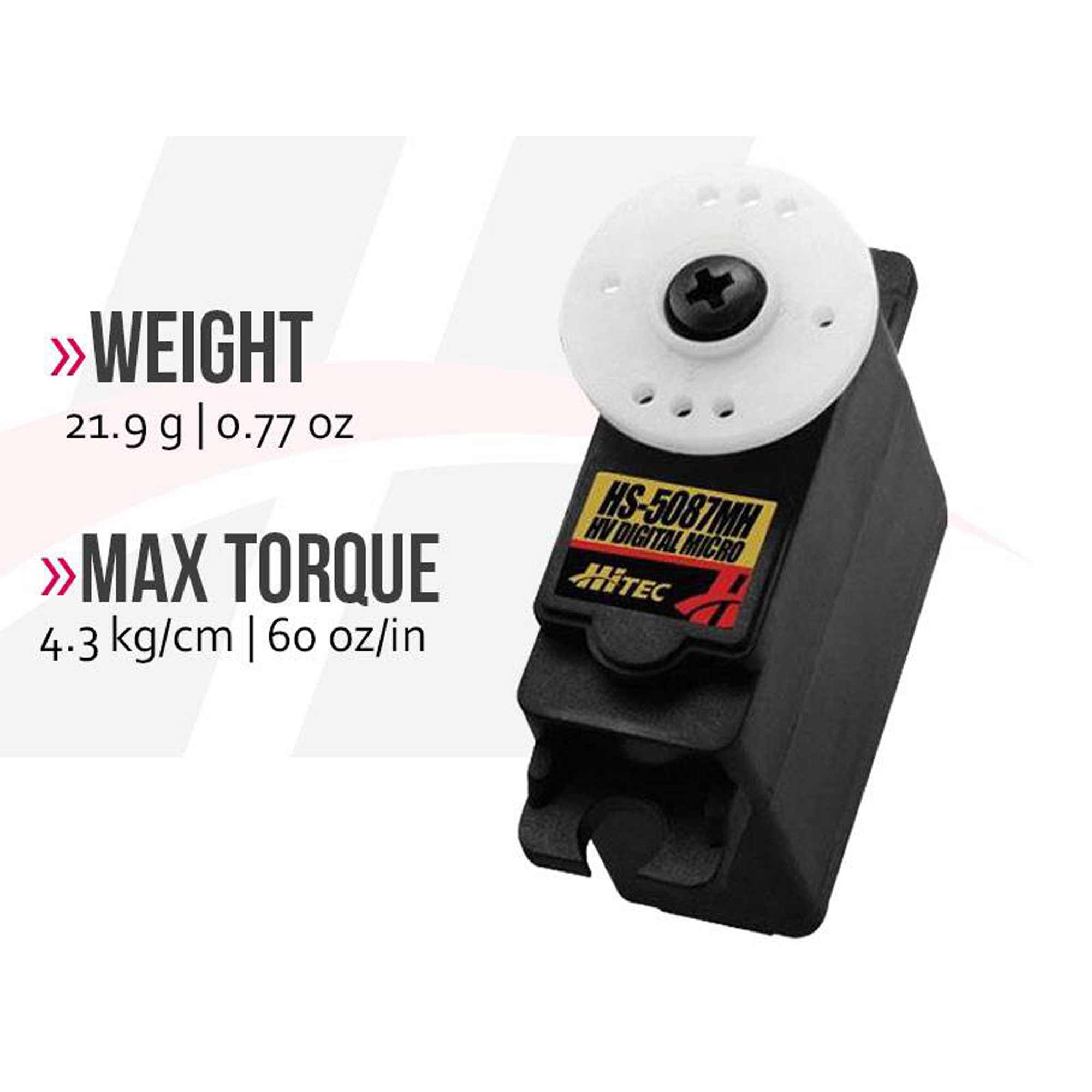

The HS-5087MH digital, metal gear micro servo is the high voltage version of our ever popular HS-5085MG. Built with a 3-pole ferrite motor and heavy-duty metal gears, this servo will bring maximum performance to your hobby and deliver extra power with a 2-cell 7.4V LiPo battery. Whether you are a beginner or an expert in the RC field, our HS-5087MH will provide the strength and capability you need and want in a micro servo. Drivers will find it the perfect steering servo for their 1/16th scale vehicles. Pilots with .15 to .40-size glow and electric aircraft will relish in its power and reliability. Its precision and performance also make it perfect for 500-size helicopters.
Product Details
In The Box
- (1) HS-5087MH Micro Digital HV Metal Gear Servo
