- Speed: @4.8V .22sec/60' / @6.0V .18sec/60'
- Torque: @4.8V 67oz/in / @6.0V 83oz/in
- Top Selling Heavy Duty Standard Servo
- High Impact Karbonite Gears
- Top Ball Bearings
- Excellent Centering and Resolution
Product Specs
Application
Glow, Electric Aircraft
Bearing
Top Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Current Draw Idle
10 mA
Current Draw Stall
1,200 mA
Deadband
3µs
Gear Type
Karbonite
Input Voltage
4.8V ~ 6.0V
Maximum Servo Speed
0.22 sec/60 deg @ 4.8V, 0.18 sec/60 deg @ 6.0V
Maximum Servo Torque
67oz/in @ 4.8V, 83oz/in @ 6.0V
Motor Type
Brushed
Product Height
1.49" (38 mm)
Product Length
1.57" (40 mm)
Product Weight
1.59oz (45.0g)
Product Width
0.78" (20 mm)
Programmable
No
Servo Operating Voltage
4.8 - 6.0V
Servo Size Category
Standard
Servo Type
Analog
Spline Count
24 - Tooth
Water-Resistant
No
Wire Gauge
25 AWG
Compatibility
Kyosho - KYO34425T1
Spektrum - SPMAR10400T
Spektrum - SPMAR14400T
Spektrum - SPMAR20400T
Spektrum - SPMAR410
Spektrum - SPM-1030
Spektrum - SPMAR630
Spektrum - SPM-1031
Spektrum - SPMAR631
Spektrum - SPM-1032
Spektrum - SPMAR637T
Spektrum - SPMAR8020T
Spektrum - SPM-1033
Spektrum - SPMAR8360T
Spektrum - SPM9746
Get Info From Communities

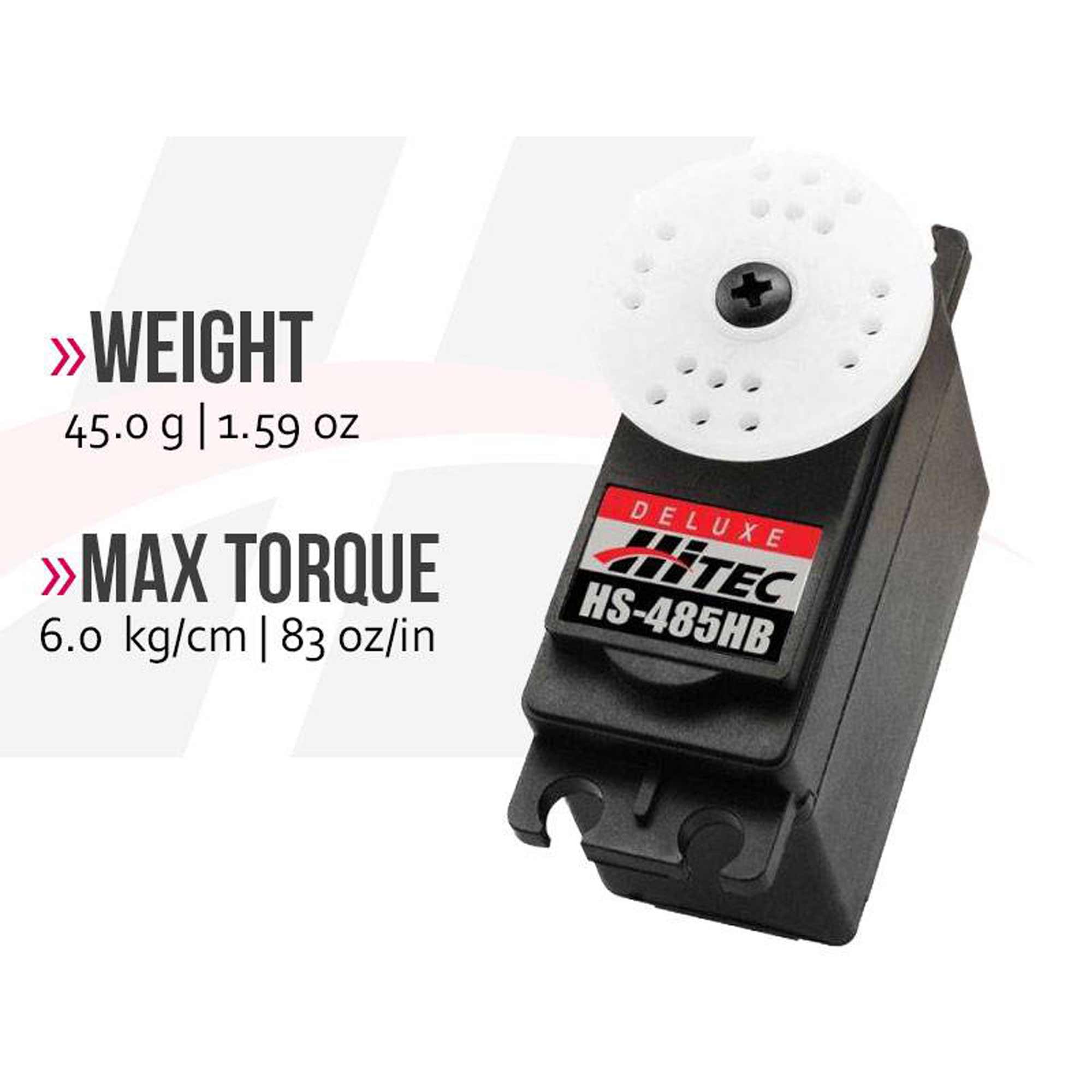

The HS-485HB updates the very popular HS-475HB by adding more torque and greater speed. With its top ball bearing, heavy duty, high impact Karbonite™ gears and high performance circuitry, the HS-485HB offers lots of torque and features excellent centering and resolution.
Product Details
In The Box
- (1) HS-485HB Standard Analog Karbonite Gear Aircraft Servo
