- Speed: @4.8V .14sec/60' / @6.0V .11sec/60'
- Torque: @4.8V 54.15oz/in / @6.0V 66.65oz/in
- Full Size Performance in a Mini Package
- Durable Metal Gears
- Top Ball Bearings
- Perfect for Applications Requiring a Small, Lightweight, High Speed, High Torque Servo
Product Specs
Application
Small Aircraft, Helicopters, Cars, Boats
Bearing
Top Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Current Draw Idle
8mA
Current Draw Stall
1,200 mA
Deadband
>5µs
Gear Type
Metal
Input Voltage
4.8V ~ 6.0V
Maximum Servo Speed
0.14 sec/60 deg @ 4.8V, 0.11 sec/60 deg @ 6.0V
Maximum Servo Torque
54oz/in @ 4.8V, 67oz/in @ 6.0V
Motor Type
Brushed
Product Height
1.22" (31 mm)
Product Length
1.27" (32 mm)
Product Weight
1.09oz (31.0g)
Product Width
0.66" (17 mm)
Programmable
No
Servo Operating Voltage
4.8 - 6.0V
Servo Size Category
Mini
Servo Type
Analog
Spline Count
24 - Tooth
Water-Resistant
No
Wire Gauge
25 AWG
Compatibility
Pro Boat - PRB08025
Horizon Hobby - HRZ00006
Redcat Racing - RER03778
Tamiya - TAM7255252
Spektrum - SPM2340
RC4WD - RC4ZR0008
Spektrum - SPMSLR300
Spektrum - SPMSR215
Spektrum - SPMSR315
Spektrum - SPMSTX300
Spektrum - SPMAR10400T
Spektrum - SPMAR14400T
Spektrum - SPMAR20400T
Spektrum - SPMAR410
Spektrum - SPM-1030
Spektrum - SPMAR630
Spektrum - SPM-1031
Spektrum - SPMAR631
Spektrum - SPM-1032
Spektrum - SPMAR637T
Spektrum - SPMAR8020T
Spektrum - SPM-1033
Spektrum - SPMAR8360T
Spektrum - SPM9746
Get Info From Communities

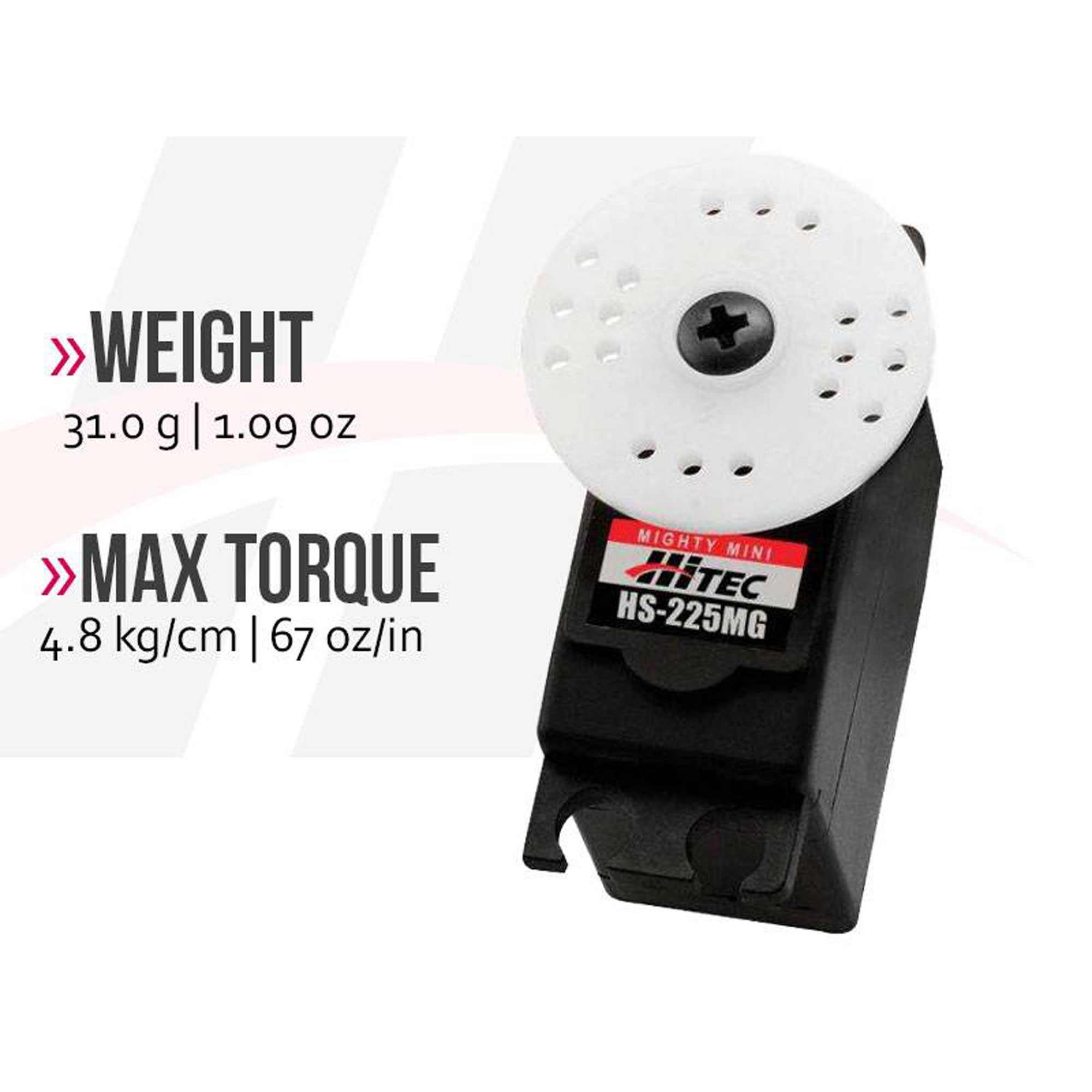

The analog HS-225MG represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225MG high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology.
Product Details
In The Box
- HS-225MG Mini Analog Metal Gear Servo
