Discontinued | This Item is No Longer Available

GT60 60cc 2-Cycle Gas Engine with Ignition Module

Item No.
OS Engines - OSMG1560
5
Selected Store

MORE POWER for 50 cc class aircraft

The GT60 is everything 50 cc fliers want in a gasoline engine — durable, efficient, easy to operate and high performance. A liner-less cylinder makes the engine light, makes it cool faster and gives better exhaust-scavenging characteristics. Plus, its throttle times make the GT60 the choice for 3D flying, delivering power when you need it.
O.S. Two Year Limited Warranty
  • Quick-starting IG-02 electric ignition system uses 4-6 cell NiCds/NiMHs or 2-cell LiPos.
  • Rear-mounted Walbro® carburetor is custom-designed for the GT60.
  • Connecting rod features needle roller bearings at both ends.
  • Angled spark plug allows easy installation in tight spaces.
  • Recommended prop sizes: 22x8, 22x10, 23x8, 24x8, 24x10.

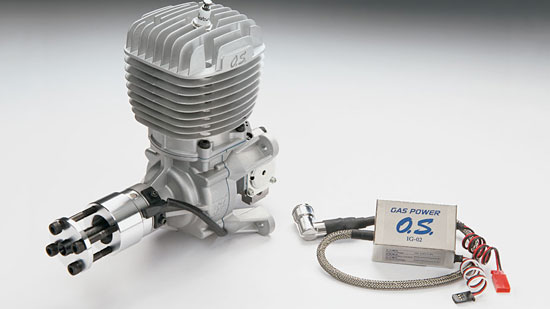

O.S. GT60 Gas w/Muffler - electronic ignition
Includes electronic ignition module and CM-6 spark plug.

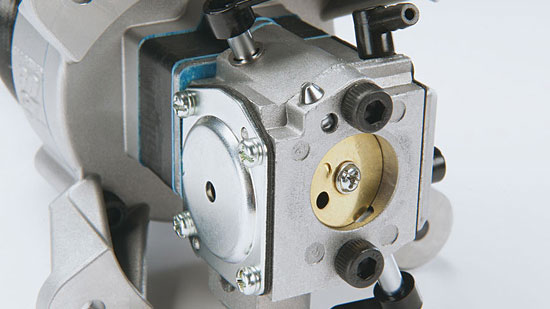

O.S. GT60 Gas w/Muffler - rear-mounted carb
Pilots prefer a rear-mounted carb — and O.S. designers listened. The carb is custom-designed by Walbro specifically for the GT60.

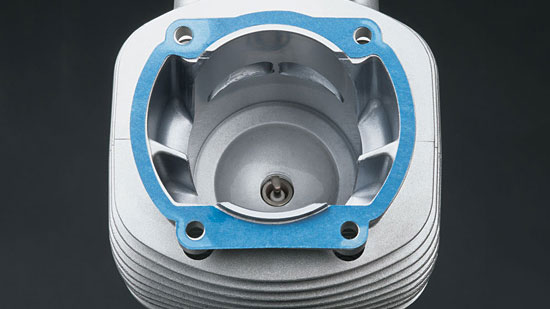

O.S. GT60 Gas w/Muffler - liner-less cylinder
The GT60's liner-less cylinder head lowers weight, improves cooling, and contributes to increased scavenging efficiency.

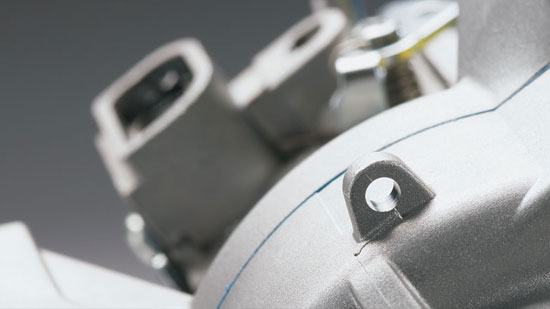

O.S. GT60 Gas w/Muffler - choke rod guide
A choke rod guide has been integrated into the crankcase for effortless set-up.

Product Specs

Bore
1.73 in (44.0mm)
Cylinder Type
Linerless
Cylinders
Single
Displacement
3.66 cu in (59.91 cc)
Engine (Only) Weight
49.38 oz (1,400 g)
Ignition Weight
3.7 oz (105 g)
Muffler Weight
6.3 oz (178 g)
Plug Type
CM6 Spark Plug
Power Type
Gas
Product Height
6.9 in (175mm) lower mounting tab to top of cylinder head
Product Length
6.5 in (166.4mm) from carb to drive hub
Product Width
3.8 in (97.6mm) at mounting tabs
Prop Range
22 x 10 - 24 x 10
RPM Range
1,600 - 8,000 rpm
Stroke
1.55 in (39.4mm)
Total Weight
3.71 lbs (1683 g)
