Gasoline power for your .90-1.20 aircraft
An investment in O.S. gasoline power quickly pays for itself in fast starts, higher power and more flights from your fuel budget. For the many planes that use 2-stroke .60-.91 or 4-stroke 1.20 glow engines, the GT22 – the third gasoline engine available from O.S. – is the perfect choice. It cranks out nearly 10% more power than other 2-stroke gasoline engines of similar size! Throughout the GT22, the fit and finish are outstanding – always delivering the same high performance as when you first installed your brand new, hand-crafted, quality inspected O.S. engine.
- Pitts style muffler has been reinforced at seam, bend and mounting bolt locations for strength.
- Redesigned for even easier starting, the IG-02 electronic ignition system handles 4-6 cell NiCd/NiMH or 2-cell LiPo/LiFe batteries.
- Includes single prop nut with locking nut.
- Uses beam mounting for easy installation in planes designed for glow power.
- Rear-mounted Walbro carburetor is custom-designed for the GT22 – a choke rod guide has also been integrated into the crankcase for effortless setup.

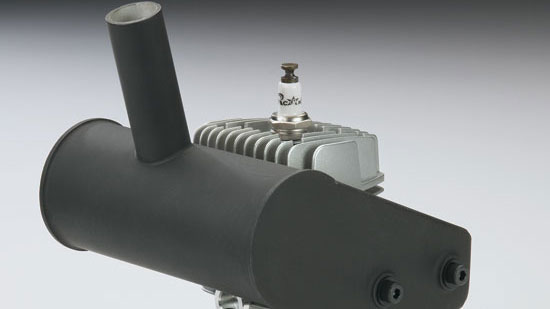

The GT22 Pitts muffler is built to last, with reinforced mounting bolt holes and webbing at high-stress points.

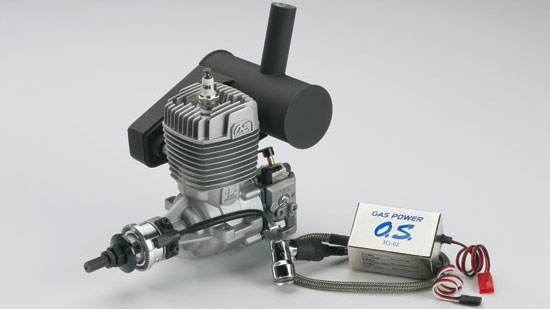

Complete package includes engine, muffler, electronic ignition module, CM-6 spark plug, muffler gasket and bolts.
Product Specs
Benchmark Prop
15x10
Bore
1.26" (32mm)
Crankshaft Threads
UNF-2A 5/16-24
Crankshaft Type
Threaded
Cylinders
Single
Displacement
1.35 cu in (22 cc)
Engine (Only) Weight
26.86 oz (761.6 g) w/o muffler
Ignition Weight
3.70 oz (105 g)
Muffler Type
2-piece aluminum
Muffler Weight
4.68 oz (132.6g)
Oil Type & Content
50:1 mix ratio 2-cycle
Plug Type
CM-6 spark plug
Power Type
Gas
Product Height
3.1" (140.5mm) bottom of mounting tab to top of muffler
Product Length
5.5" (139.5mm) from carburetor to front of drive hub
Product Width
2.7" (70mm) at mounting tabs
Prop Range
16 x 8 - 17 x 8
RPM Range
1,800 - 9,000
Stroke
1.08" (27.5mm)
Compatibility
Get Info From Communities
FAQ
Yes, the ignition unit is provided with the engine.
