DLE-85 85cc Gas Engine with Electronic Ignition and Muffler

Item No.
DLE Engines - DLEG0085
5
Selected Store

Smooth single-cylinder power

Giant-scale enthusiasts will love the power, performance and value of the DLE-85cc! The engineers at DLE have thought of everything. Vibration — a real concern for many single cylinder engines — is checked by a vibration-dampening engine mount. Plus, an exhaust extension lets the engine fit in more planes without cowl modifications. This extension will flex or pop off during a hard landing, helping to protect the engine.

  • The ignition module will accept input voltages from 4.8V to 8.4V.
  • Suggested prop sizes: 25 x 10, 26 x 9, 27 x 8
  • Includes an engine mount specially designed to dampen vibration
  • An exhaust extension on the included muffler aids in installation and helps protect the engine and muffler in the event of a hard landing

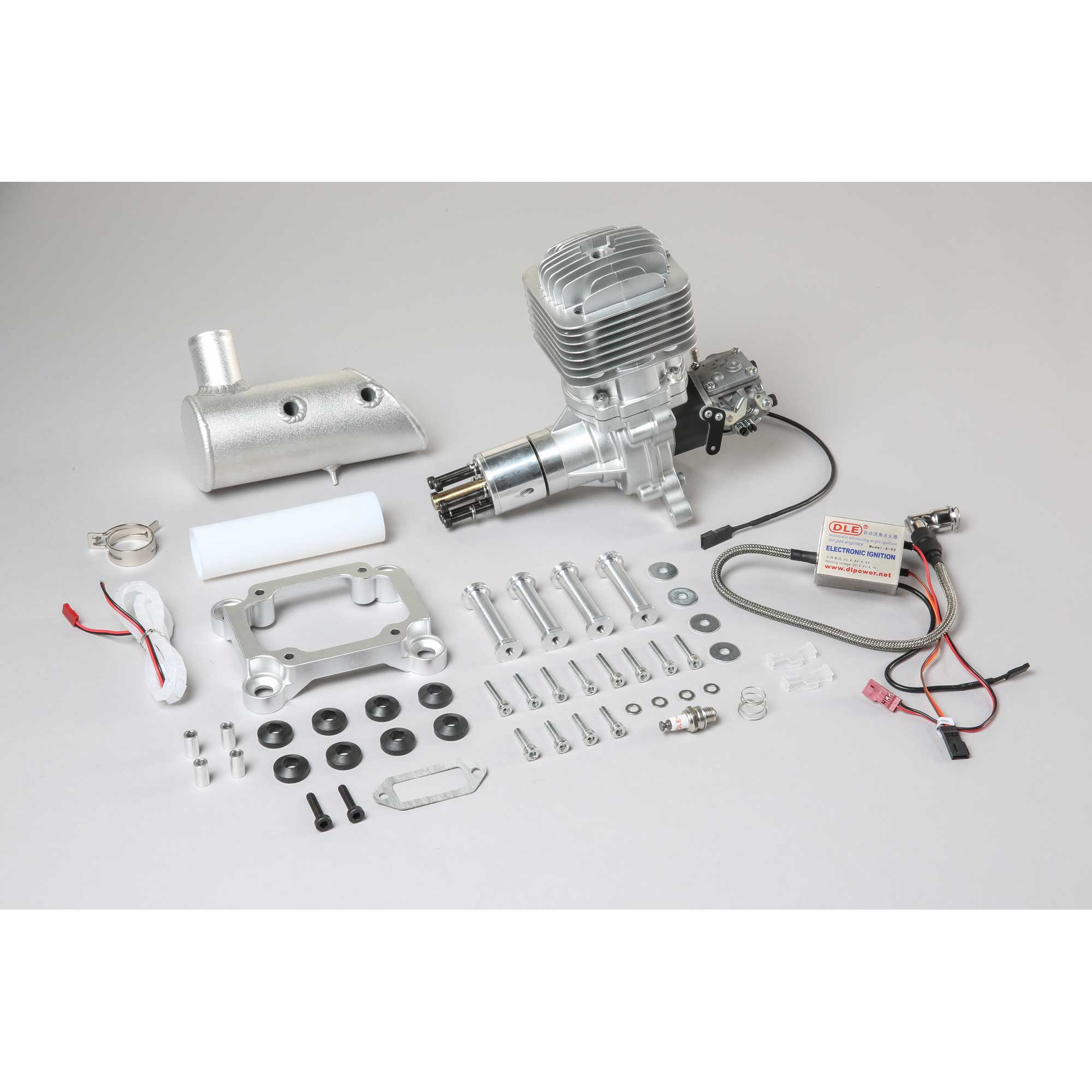

DLE Engines DLE-85cc Gas Engine - Parts Layout
You get all this with the DLE-85: ignition module, spark plug, engine standoffs, vibration-dampening engine mount and muffler with exhaust extension.
DLE Engines DLE-85cc Gas Engine - engine mount
The DLE-85’s engine mount combats performance-robbing vibration, and unlike comparable engines, is standard equipment.
  • Engine mount specifically designed to dampen vibration
  • Exhaust extension on the included muffler aids in installation and helps protect the engine and muffler in the event of a hard landing
  • Ignition module will accept the optional DLE tachometer

Product Specs

Bore
2.05" (52mm)
Crankshaft Type
Threaded
Cylinders
Single
Displacement
5.18 cu in (84.88 cc)
Engine (Only) Weight
68 oz (1930 g )
Ignition Weight
4.58 oz (110g)
Muffler Type
2-piece aluminum
Muffler Weight
8.8 oz (250 g)
Oil Type & Content
30:1 2-cycle oil mixture
Plug Type
NGK CM6
Power Type
Gas
Product Height
5.51" (140mm) fron center of crankshaft to top of cylinder head
Product Length
7.87" (200mm) from mount to front of prop hub
Prop Range
25 x 10 - 27 x 8
Starter Type
Hand Held Starter
Stroke
1.57" (40mm)
Total Weight
6.04lbs (2744g)

Product Details

icon-box
In The Box
  • (1) DLE-85 Engine with Ignition Module
  • (1) Spark Plug
  • Engine Standoffs
  • (1) Engine Mount
  • (1) Muffler w/Exhaust Extension
  • (1) Fiber Muffler Gasket
  • (1) Product manual
icon-how-to
Needed to Complete
  • Unleaded gasoline
  • Two-stroke oil
  • 4.8 - 6V NiMH/NiCd, or 6.6V LiFe or 7.4V LiPo battery for ignition (separate receiver style pack can be used)
  • **NOTE, 1st version ignition is marked 'A-01' on the label and requires a regulator if using 2S LiPo/LiFe battery
  • If ignition module is the A-02 model it has a built-in voltage regulator. Model A-02 designation is located above the word "Ignition" on top of the case**
  • Propeller
