Discontinued
|
This Item is No Longer Available
DLE-60 60cc Twin Gas Engine with Electronic Ignition and Mufflers
Item No.
DLE Engines -
DLEG0060
Selected Store
Smooth operator.
If you're looking for smooth, consistent performance in a 60cc engine, look no further. The DLE-60cc Twin delivers that and more! Its twin opposed cylinders provide very smooth operation, while keeping weight low and producing the power your bird requires. Electronic ignition, spark plug and Pitts style mufflers are included.
Electronic ignition is the no-hassle answer to simpler starts, higher performance and minimal RF noise.
With DLE, accessories are an added value instead of an extra cost.
Product Specs
Bore
1.42" (36mm)
Crankshaft Type
Threaded
Cylinders
Twin
Displacement
3.7 cu in (61cc)
Engine (Only) Weight
55 oz (1,560g)
Ignition Weight
5.6 oz (160 g)
Muffler Type
2-piece aluminum
Muffler Weight
5.6oz (160g)
Oil Type & Content
30:1 2-cycle oil mixture
Plug Type
NGK CM6
Power Type
Gas
Product Height
3.6" (92mm)
Product Length
6.3" (160mm) from end of standoff to prop hub
Product Width
8.5" (276mm) from spark plug to spark plug
Prop Range
22 x 10 - 24x8
Starter Type
Hand Held Starter
Stroke
1.18" (30mm)
Total Weight
4.3 lbs (1936 g)
Compatibility
Hangar 9 - HAN2390CDLE60T
Hangar 9 - HAN2390CDLE61
Get Info From Communities
FAQ
The width including plug caps is 276mm.
Product Details

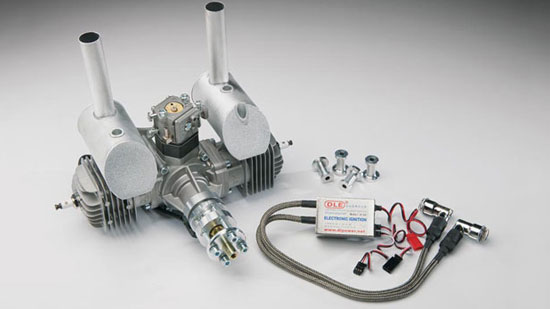

In The Box
- (1) DLE 60cc Engine
- (1) Electronic ignition
- (1) NGK CM6 Spark plug
- (2) Pitts style mufflers
- (1) Engine stand-offs
Needed to Complete
- Gasoline with at least 87 octane rating
- 2-cycle oil, mix ratio for this engine is 30 parts gas to one part oil and must be followed exactly for warranty consideration and optimum performance
- 4.8 - 12V battery for ignition (separate receiver style pack can be used)

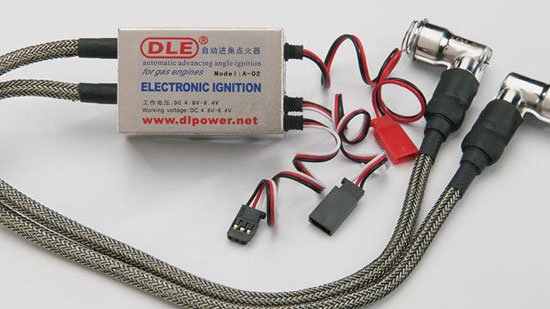

- NOTE, 1st version ignition is marked 'A-01' on the label and requires a regulator if using 2S LiPo/LiFe battery If ignition module is the A-02 model it has a built-in voltage regulator. Model A-02 designation is located above the word "Ignition" on top of the case
- Propeller: 22x10, 23x8, 23x10, 24x8
- Field equipment
