DLE-55RA Gas Rear Exhaust with Electronic Ignition
DLE-55RA Gas Rear Exhaust with Electronic Ignition
Discontinued | This Item is No Longer Available

DLE-55RA Gas Rear Exhaust with Electronic Ignition

Item No.
DLE Engines - DLEG0455
4.5
Selected Store

More power!

DLE takes 50cc performance to a new level with the rear exhaust DLE-55RA. Everything about this engine screams performance, from the piston skirt – designed to be lightweight for quick throttle response and tons of power – to the rear exhaust that lets you easily install a tuned pipe in your aircraft. The 55RA provides 100 more rpm than the standard DLE55. It includes engines standoffs, electronic ignition, spark plug and Pitts style muffler.
DLE Engines DLE-55RA Gasoline Engine - Accessories
With DLE, accessories are an added value instead of an extra cost.

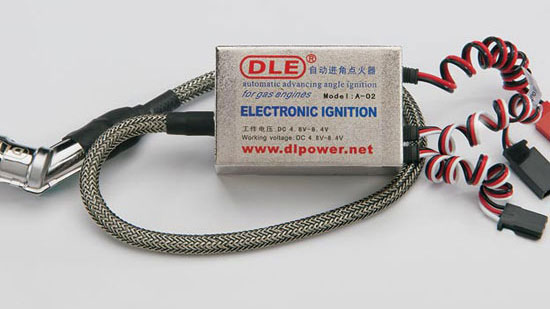

DLE Engines DLE-55RA Gasoline Engine - Electronic Ignition
Electronic ignition is the no-hassle answer to simpler starts, higher performance and minimal RF noise.
  • High performance in a compact package
  • Rear exhaust for the perfect tuned pipe setup
  • Pitts style aluminum muffler
  • Piston with re-engineered skirt for less piston weight resulting in such advantages as awesome throttle response, more power and longer engine life
  • Electronic ignition is the no-hassle answer to simpler starts, higher performance and minimal RF noise, **Ignition Sensor available separately**
  • Producing 100 more rpm than the DLE50, the DLE 55-RA comes with engine standoffs, electronic ignition, spark plug and muffler

Product Specs

Bore
1.76" (45mm)
Crankshaft Type
Threaded
Cylinders
Single
Displacement
3.39 cu in (55.6cc)
Engine (Only) Weight
3.74 lbs (1.33 kg)
Ignition Weight
5.11 oz (145 g)
Muffler Type
Pitts
Muffler Weight
3.17 oz (90 g)
Oil Type & Content
30:1 2-cycle oil mixture
Plug Type
NGK CM6
Power Type
Gas
Product Height
4.92" (125mm) from center of crankshaft to top of cylinder head
Product Length
6.7" (171mm) from standoff to prop hub
Product Width
3.54" (90mm) between center of mounting holes
Prop Range
22 x 8 - 23 x 10
Starter Type
Hand Held Starter
Stroke
1.37" (35mm)
Total Weight
3.4lbs (1565g)

Compatibility

No results for your given fitment filters
Replacement Parts
Optional Parts

Get Info From Communities

RC 101
Buying Guides
Troubleshooting
Downloads
How-To's

FAQ

The sensor is the device that detects propeller/crankshaft rotation, and sends a signal to the ignition unit, so that the spark plug can be fired at the appropriate time. It is needed, and included with each DLE engine.

It will depend on the propeller brand/style, and also the type of model. 20x10 would be a reasonable starting point.

Product Details

icon-box

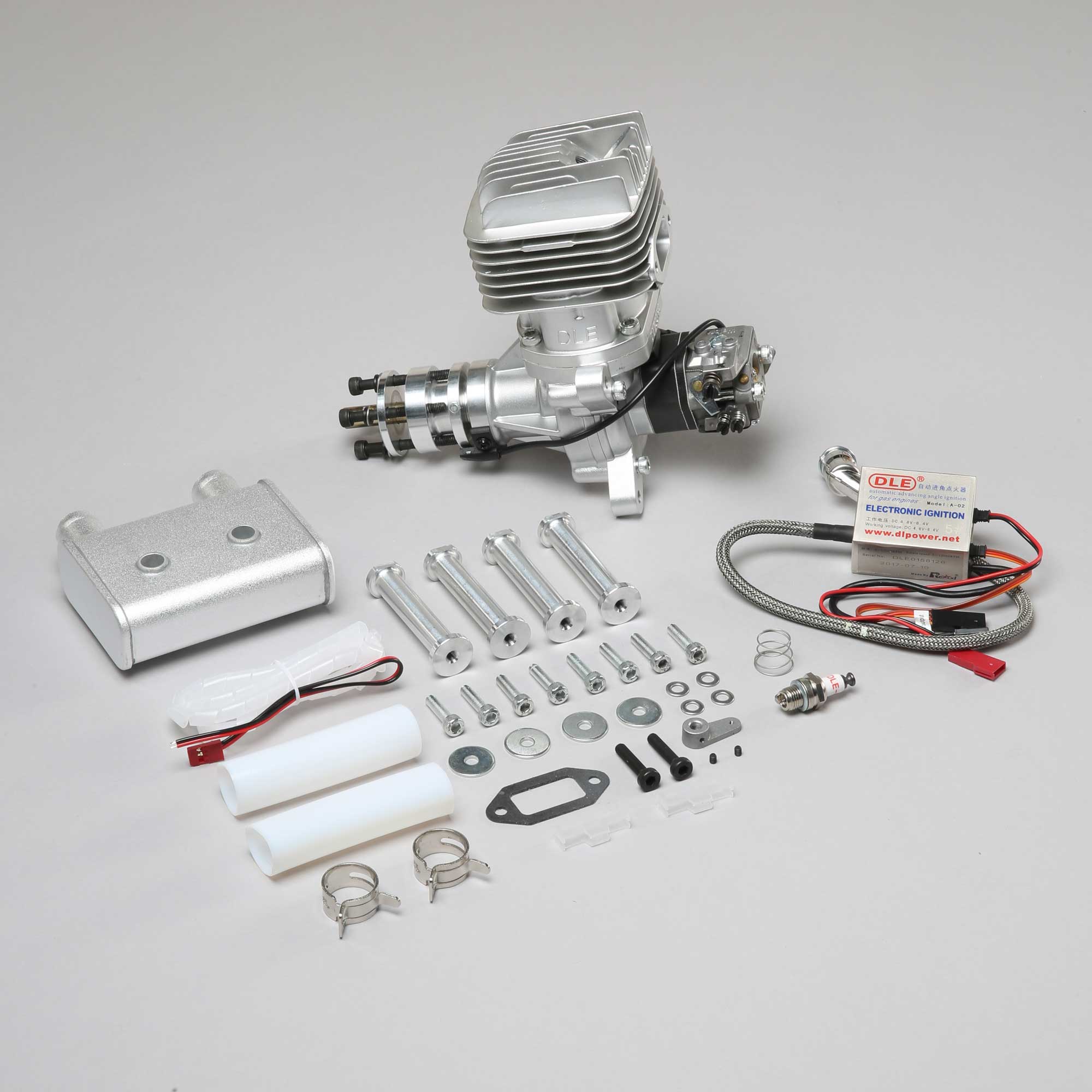

In The Box
  • (1) DLE 55-RA Gasoline Engine
  • (1) Electronic Ignition
  • (1) Pitts Muffler
  • (1) DLE CM6 Spark Plug
  • (4) Engine Standoffs with Mounting Hardware
  • (1) Integrated Choke Rod Guide
  • (1) Rear-mounted Carb
  • (1) Product manual
icon-how-to
Needed to Complete
  • Gasoline with at least 87 octane rating
  • 2-cycle oil, mix ratio for this engine is 30 parts gas to one part oil and must be followed exactly for warranty consideration and optimum performance
  • 4.8 - 12V battery for ignition (separate receiver style pack can be used)
  • **NOTE, 1st version ignition is marked 'A-01' on the label and requires a regulator if using 2S LiPo/LiFe battery If ignition module is the A-02 model it has a built-in voltage regulator. Model A-02 designation is located above the word "Ignition" on top of the case**
  • Propeller and field equipment
