DLE-35RA Gas Rear Exhaust with Electronic Ignition
DLE-35RA Gas Rear Exhaust with Electronic Ignition
Discontinued | This Item is No Longer Available

DLE-35RA Gas Rear Exhaust with Electronic Ignition

Item No.
DLE Engines - DLEG0435
4.8
Selected Store

High performance in a compact package!

The DLE-35RA features a rear exhaust for the perfect tuned pipe setup. It also includes a newly designed piston with re-engineered skirt for less piston weight – resulting in such advantages as awesome throttle response, more power and longer engine life. Producing 400 more rpm than the DLE30, the DLE-35RA comes with engine standoffs, electronic ignition, spark plug and muffler.

DLE Engines DLE-35RA Gas Engine - Electronic Ignition
Electronic ignition is the no-hassle answer to simpler starts, higher performance and minimal RF noise.
DLE Engines DLE-35RA Gas Engine - Accessories
With DLE, accessories are an added value instead of an extra cost.
  • This engine is designed with a lighter piston skirt for lower weight, better throttle response, and increased resistance to wear.
  • The customized, pumped DLE carburetor delivers consistent fuel flow, while the 2-stage muffler reduces back pressure and increases power.
  • The advanced aluminum alloy crankcase is CNC-machined to exacting standards for high performance and long life.
  • Fully automatic electronic ignition delivers easy starts and consistent runs.

Product Specs

Bore
1.5" 38.5mm)
Crankshaft Type
Threaded
Cylinders
Single
Displacement
2.13 cu in (34.5cc)
Engine (Only) Weight
2.06 lbs (936 g)
Ignition Weight
5.26 oz (147 g)
Muffler Type
Pitts
Muffler Weight
2.61 oz (74 g)
Oil Type & Content
30:1 2-cycle oil mixture
Plug Type
NGK CM6
Power Type
Gas
Product Height
4.33" (110mm) from crankshaft center to top of cylinder head
Product Length
6.30" (160mm)
Product Width
3.15" (80mm) between center of mounting holes
Prop Range
18x10 - 20x10
Starter Type
Hand Held Starter
Stroke
1.18" (30mm)
Total Weight
2.5 lbs (1157 g)

Compatibility

No results for your given fitment filters

Product Details

icon-box
In The Box

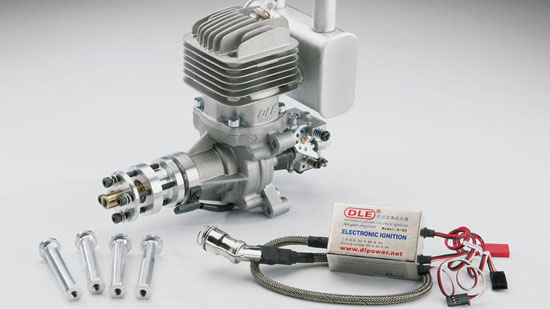

  • (1) DLE 35-RA Gasoline Engine
  • (1) Electronic Ignition
  • (1) Muffler
  • (1) DLE CM6 Spark Plug
  • (4) Engine Standoffs with Mounting Hardware
  • (1) Integrated Choke Rod Guide
  • (1) Rear-mounted Carb
  • (1) Product manual
icon-how-to
Needed to Complete
  • Gasoline with at least 87 octane rating
  • 2-cycle oil, mix ratio for this engine is 30 parts gas to one part oil and must be followed exactly for warranty consideration and optimum performance
  • 4.8 - 8.4V battery for ignition (separate receiver pack can be used)
  • **NOTE, 1st version ignition is marked 'A-01' on the label and requires a regulator if using 2S LiPo/LiFe battery If ignition module is the A-02 model it has a built-in voltage regulator. Model A-02 designation is located above the word "Ignition" on top of the case**
  • Propeller and field equipment
