Discontinued | This Item is No Longer Available

DLE-120 120cc Twin Gas Engine with Electronic Ignition and Mufflers

Item No.
DLE Engines - DLEG0120
3.9
Selected Store

Maximum power at minimum weight

The DLE-120 delivers 50 lbs of static thrust—more than enough power for intense 3D maneuvers. Twin opposed cylinders reduce vibration and engine wear and increase performance. It’s all packed into an alloy crankcase that is strong and light. Mufflers, standoffs and electronic ignition boost performance even further. The DLE-120 delivers the most punch at the lowest weight and the lowest price of any engine in its class. What more do you need to know?
  • Efficient, light design for a high power-to-weight ratio
  • Light pistons for fast acceleration, excellent compression and low vibration
  • CNC-machined parts for high performance and long life
  • Improved piston and cylinder contact area for increased engine lifespan.
  • Sealed crankshaft bearings
  • Matched mufflers included for optimized power
  • Two mufflers
  • Electronic ignition module with spark plugs
  • Standoffs
  • Spiral wire wrap

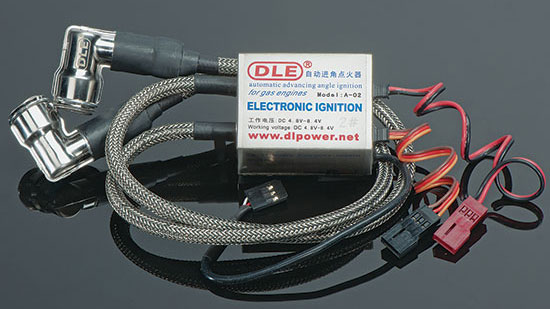

DLE Engines DLE-120cc Twin Gas Engine - ignition
Electronic ignition delivers ultra-smooth idle, easy starting and awesome throttle transition.

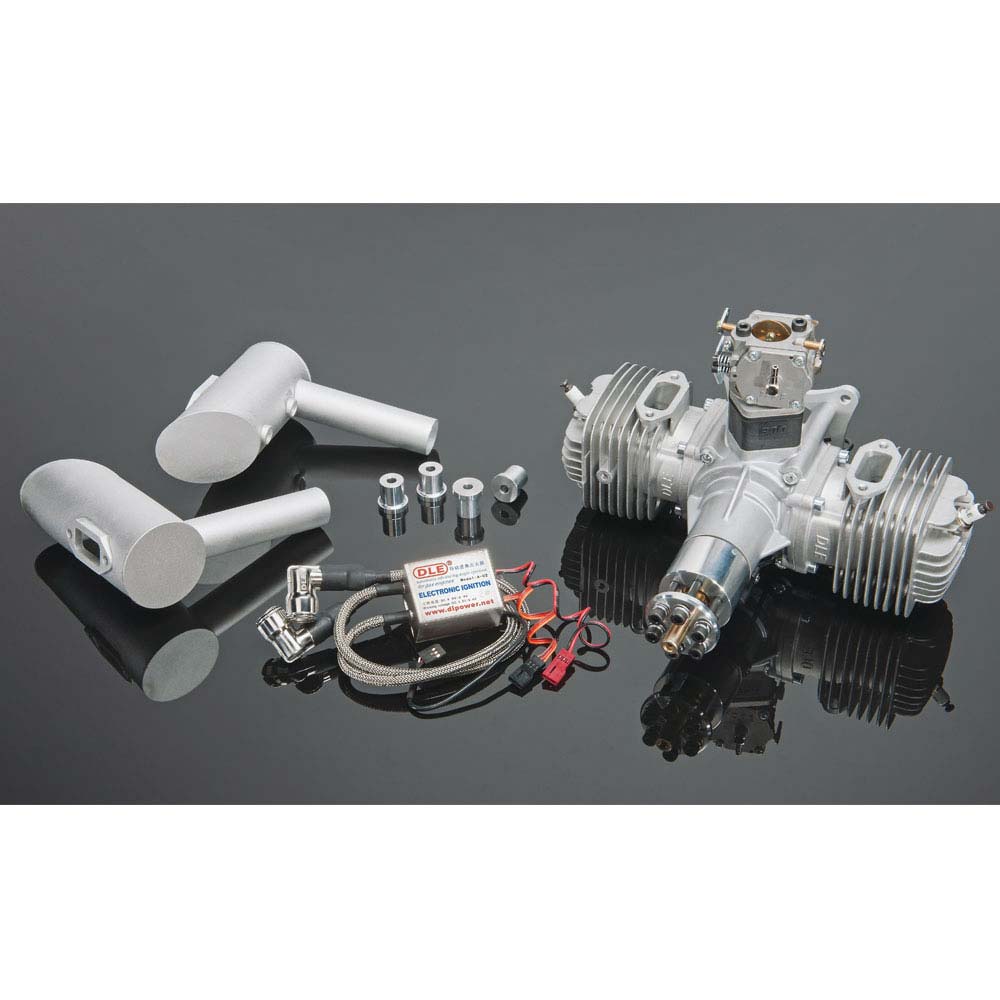

DLE Engines DLE-120cc Twin Gas Engine - includes
The DLE-120 includes a pair of mufflers, electronic ignition gear, spark plugs, spiral wire wrap and connector safety clips.
  • 50 lbs of static thrust-ideal for intense 3D manuevers
  • Electronic ignition for faster first time starts, smooth idling and superb throttle transition
  • Twin opposed cylinders reduce vibration and increase performance
  • Sealed crankshaft ball bearings
  • Alloy crankcase
  • Matched aluminum mufflers

Product Specs

Bore
1.85" (47mm)
Crankshaft Type
Threaded
Cylinder Type
Opposed
Cylinders
Twin
Displacement
7.32 cu in (120cc)
Engine (Only) Weight
5.08 lbs (2306g)
Ignition Weight
5.3oz (149g)
Muffler Type
2-piece aluminum
Muffler Weight
3.9oz (149g )
Oil Type & Content
30:1 2-cycle oil mixture
Plug Type
NGK CM6
Power Type
Gas
Product Height
4.6" (116mm) crankshft center to to p of carb
Product Length
6.5" (166mm), back of crankcase to prop hub
Product Width
9.8" (250mm)
Prop Range
26 x 10 - 28 x 10
Starter Type
Hand Held Starter
Stroke
1.38" (35mm)
Total Weight
5.9lbs (2669g)

Compatibility

No results for your given fitment filters

Product Details

icon-box
In The Box
  • (1) DLE 120cc Gasoline Engine
  • (2) Mufflers
  • (1) Ignition Module
  • (2) Spark Plugs
  • (1) Spiral Wire Wrap
  • Connector Clips
  • (4) 0.98" (25mm) Standoffs
  • (1) Product manual
icon-how-to
Needed to Complete
  • 87- 93 octane gasoline
  • 2-cycle oil, mix ratio for this engine is 30 parts gas to one part oil and must be followed exactly for warranty consideration and optimum performance
  • Propeller: 26 x 10, 26 x 12, 27 x 10, or 28 x 10 depending on aircraft
  • 4.8 - 6V NiMH/NiCd, or 6.6V LiFe or 7.4V LiPo battery for ignition (separate receiver style pack can be used)
  • NOTE, 1st version ignition is marked 'A-01' on the label and requires a regulator if using 2S LiPo/LiFe battery If ignition module is the A-02 model it has a built-in voltage regulator. Model A-02 designation is located above the word "Ignition" on top of the case
