- Speed: @4.8V .19sec/60' / @7.4V .12sec/60'
- Torque: @4.8V 251oz/in / @7.4V 405oz/in
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
- Coreless Metal Brush Motors
- Nylon Reinforced Plastic Upper and Lower Case
- Diamond Cut Aluminum Heat Sink Center Case
- Dust Resistant and Splash Proof Case
Product Specs
Application
30-40% sport planes, 2 meter+ sailpanes, 30-40% 3D & performance scale aircraft, all 1:8 scale vehicles, 1M & scale sailboats
Bearing
Dual Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Current Draw Idle
30mA
Current Draw Stall
5,200mA
Deadband
1µs
Gear Type
Metal
Input Voltage
4.8V ~ 7.4V
Maximum Servo Speed
0.19 sec/60 deg @ 4.8V, 0.12 sec/60 deg @ 7.4V
Maximum Servo Torque
251oz/in @ 4.8V, 405oz/in @ 7.4V
Motor Type
Brushed
Product Height
1.46" (37 mm)
Product Length
1.57" (40 mm)
Product Weight
2.40 oz (68g)
Product Width
0.78" (20 mm)
Programmable
Yes
Servo Operating Voltage
4.8 - 8.4V (HV)
Servo Size Category
Standard
Servo Type
Digital
Spline Count
25 Teeth
Water-Resistant
No
Wire Gauge
20 AWG
Compatibility
Kyosho - KYO30625
Redcat Racing - RER07118
Redcat Racing - RER07119
Redcat Racing - RER07013
Redcat Racing - RER07014
RC4WD - RC4ZRTR0027
Redcat Racing - RER10682
Redcat Racing - RER09587
Redcat Racing - RER09588
Redcat Racing - RER09586
Redcat Racing - RER09585
Kyosho - KYO34431T1
Kyosho - KYO34418T1
Kyosho - KYO34415T2
Kyosho - KYO34423
Kyosho - KYO34491T1C
Redcat Racing - RER13035
Redcat Racing - RER13034
Redcat Racing - RER03130
Kyosho - KYO30618B
Kyosho - KYO34491T1
Redcat Racing - RER13226
Kyosho - KYO30617B
Kyosho - KYO34362
Redcat Racing - RER10771
Kyosho - KYO30613B
Kyosho - KYO34425T1
Kyosho - KYO30615B
Redcat Racing - RER05923
Kyosho - KYO34471T1
RC4WD - RC4ZARTR0002
RC4WD - RC4ZRTR0030
Kyosho - KYO30619
Kyosho - KYO30616B
Kyosho - KYO30614B
Team Losi Racing - TLR04009
TEKNO RC LLC - TKR9000
TEKNO RC LLC - TKR9003
Kyosho - KYO33019
Kyosho - KYO34109
Kyosho - KYO34110
Kyosho - KYO33017
Kyosho - KYO33022
Kyosho - KYO34111
Kyosho - KYO33021
Kyosho - KYO33012T4
Kyosho - KYO33012T3
Kyosho - KYO33012T5
Kyosho - KYO33012T6
Kyosho - KYO34108T1
Kyosho - KYO34108T2
Kyosho - KYO33016
Redcat Racing - RER14656
Redcat Racing - RER14420
Redcat Racing - RER12376
Redcat Racing - RER09550
Mugen Seiki USA - MUGE2023
Mugen Seiki USA - MUGE2024
Team Associated - ASC20520C
Team Associated - ASC20521C
Redcat Racing - RER14515
Kyosho - KYO33155
Kyosho - KYO34257
TEKNO RC LLC - TKR9600
Mugen Seiki USA - MUGE2027
Mugen Seiki USA - MUGE2028
Kyosho - KYO30619C
Highlights of the D-Series Servos
Get Info From Communities
The power of Hitec’s D-Series servos continues with the introduction of the next Premium Class trio: the D930SW, D954SW and D955TW. As with the entire “D” line, these technologically-advanced servos are powered by a 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. Their unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. Built with incredibly durable steel gears, the D930SW are the perfect upgrade from our popular HS-7954SH servo. Advancing servo technology and providing superior engineering has always been Hitec’s mission and that continues today as Hitec expands their outstanding D-Series product line.
Product Details
In The Box

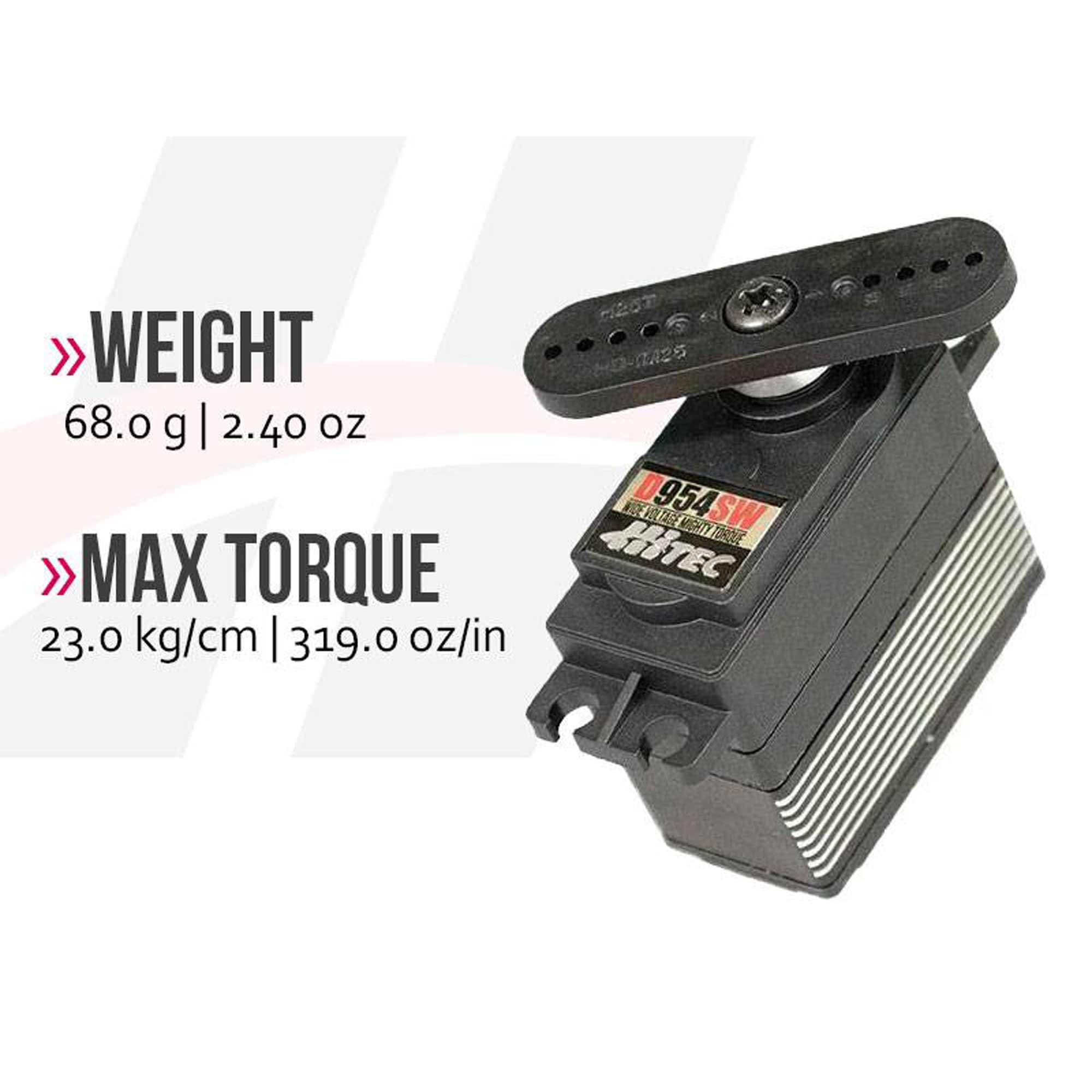

- (1) D954SW Standard Digital High Torque Steel Gear Servo
