Discontinued
|
This Item is No Longer Available
AR631 DSMX 6-Channel AS3X & SAFE Receiver
Item No.
Spektrum -
SPMAR631
Selected Store
AR631+ DSMX 6-Channel AS3X+ & SAFE Receiver
SPM-1031
Introduction

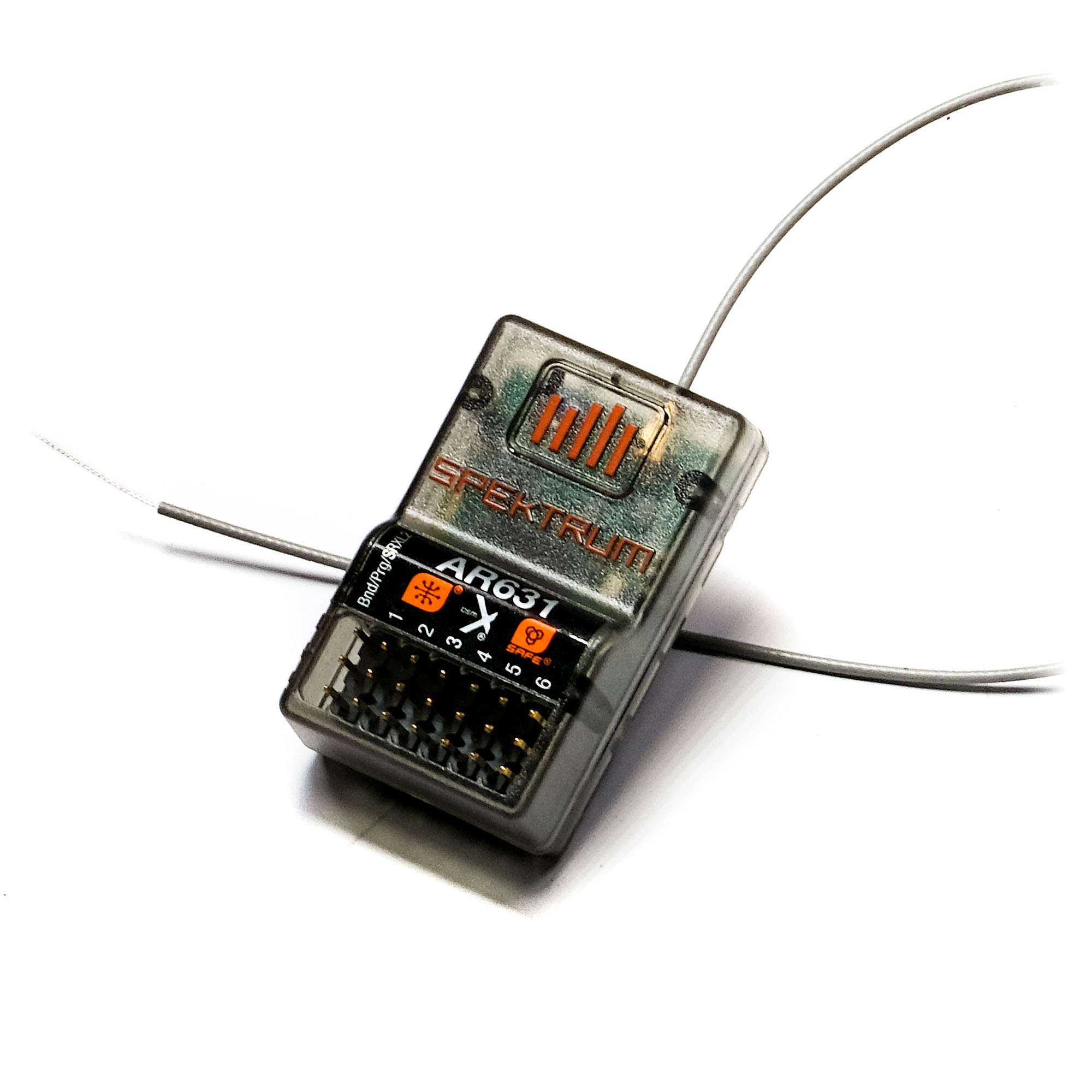

The Spektrum AR631 AS3X Telemetry Receiver is a DSM2 and DSMX capable receiver. Its compact footprint is designed to fit in a wide range of aircraft models including park flyers and larger sport models. The AR631 is a full range 6-channel receiver with built in AS3X and SAFE stabilization, which counters the effects of wind, turbulence and torque using 3-axis MEMS gyro and exclusive flight control software tuned by expert RC pilots. There is no delay in control response or limits on control throws. You'll simply feel like you're flying an expertly tuned model that does exactly what you want.
*Please note – Using this receiver in turbine powered aircraft models is not recommended
Overview
The AR631 features fly-by range telemetry and a bind button that makes it easy to bind with no plugs necessary and offers both SmartSafe technology and Hold Last as well as preset failsafe types set through forward programming. A long 230mm 2.4gHz antenna, perfect for getting optimal reception when installed into tight spaces. The AR631 also features Smart Telemetry support.
With Smart Technology the normal servo connector delivers the throttle signal to the ESC, plus the ESC can send telemetry data like voltage and current back to the receiver. The AR631 receiver throttle port (Channel 1 port only) will automatically detect when a Smart compatible ESC is connected. ESCs with Smart and IC series connectors can also pass along battery data from compatible Spektrum Smart batteries. Spektrum Avian™ ESCs are compatible with the AR631 receiver for Smart Technology features.
For Smart to function you must have a Smart ESC paired with a Smart telemetry receiver, and a Spektrum DSMX transmitter with telemetry. An update for your transmitter may be required for Smart features. Visit spektrum.com to register and update your transmitter. If a standard ESC or servo is plugged into the throttle port on the AR631 receiver, the throttle port will operate normally (PWM signal) like any conventional RC system.
Please Note: These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, Non-computer transmitters
- Extra-long 230mm Antenna for more versatile installation options
- Built in AS3X Stabilization System with SAFE flight envelope protection
- AS3X and SAFE set up through forward programming directly from your Spektrum transmitter
- Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
- DSMX protocol receiver with DSM2 backwards compatibility
Features
- 230mm Antenna for more versatile installation options
- Built in AS3X Stabilization System with SAFE flight envelope protection
- AS3X and SAFE set up through forward programming directly from your Spektrum transmitter
- Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
- Streamlined, top-pin design in a lightweight hard-case
- Bind button allows for easy binding and eliminates the need for bind plug
- DSMX protocol receiver with DSM2 backwards compatibility
- Fly-by range telemetry support
- Standard servo connectors
AS3X® Technology
Exclusive Spektrum™ AS3X® technology enhances flight stability by countering the effects of wind, turbulence, and other outside forces to help your aircraft fly smoothly and with precision. You'll feel like you're piloting an expertly tuned model that performs exactly as you want.
SAFE® Technology
SAFE® (Sensor Assisted Flight Envelope) technology flight modes help pilots avoid over-controlling their models. SAFE uses AS3X to deliver normal flight performance, but with limited bank and pitch angles to prevent the aircraft from getting in extreme attitudes.
Long 230mm 2.4GHz Antenna
The AR631 features an extra-long 230mm 2.4ghz antenna (approximately 9 inches), specifically engineered for use in tight installations. When installing your receiver into an aircraft where there is less then ideal space away from batteries and other devices, a long antenna is key. This allows users to install the receiver in tight spaces and isolate the antenna for optimal reception and link quality. When positioning your antenna, it is best to have it at least 75mm ( approximately 3 inches) away from batteries, electronic speed controls (ESC), ignition systems, and other electronic devices. Use the integrated flight log telemetry to perform a through range test to better evaluate your setup.
Forward Programming
You can configure the AR631 receiver wirelessly, directly from any compatible Spektrum™ transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.
Smart Telemetry
To enjoy the full benefits of Smart™ technology, use the AR631 receiver with a Smart ESC and telemetry capable Spektrum DSMX® transmitter. The AR631 features fly-by telemetry and will provide vital telemetry data such as current, voltage, temperature and RPM is sent directly to your transmitter. The AR631 is not compatible with Spektrum telemetry sensors. For more information on Smart Technology please visit our Spektrum Smart Technology page.
Product Specs
Antenna Length
Application
Band
Bind Method
Channels
Data Port
Flight Log Compatible
Forward Programming
Input Voltage
Integrated Variometer
Modulation
Product Application
Product Height
Product Length
Product Weight
Product Width
Range
Remote Receiver Ports
Resolution
Serial Out
Technology
Telemetry
Telemetry Range
Compatibility
No results for your given fitment filters
AR637T Setup Series
Get Info From Communities
FAQ
SAFE does use a transmitter channel. If you only have six channels available, SAFE can be combined with either the flap or retract function.
If you have the Spektrum DX6G2 (DSMX), this receiver is a great choice to offer SAFE/AS3X. Your DX6G2 is compatible with all DSMX receivers.
No, the receiver cases are not sold separately. I find a dull blade or credit card does well at scraping off that extra glue.
Programming instructions can be found on page 9 of the manual. I will link it below.
https://www.horizonhobby.com/on/demandware.static/-/Sites-horizon-master/default/dwb6e4c90b/Manuals/SPMAR631-Manual-EN.pdf
Yes the AR631 is compatible with the DX6e
Product Details
In The Box
- (1) Spektrum AR631 AS3X Telemetry Receiver
- (1) Product Manual
Needed to Complete
- (1) Spektrum Telemetry Capable Transmitter
