Overview

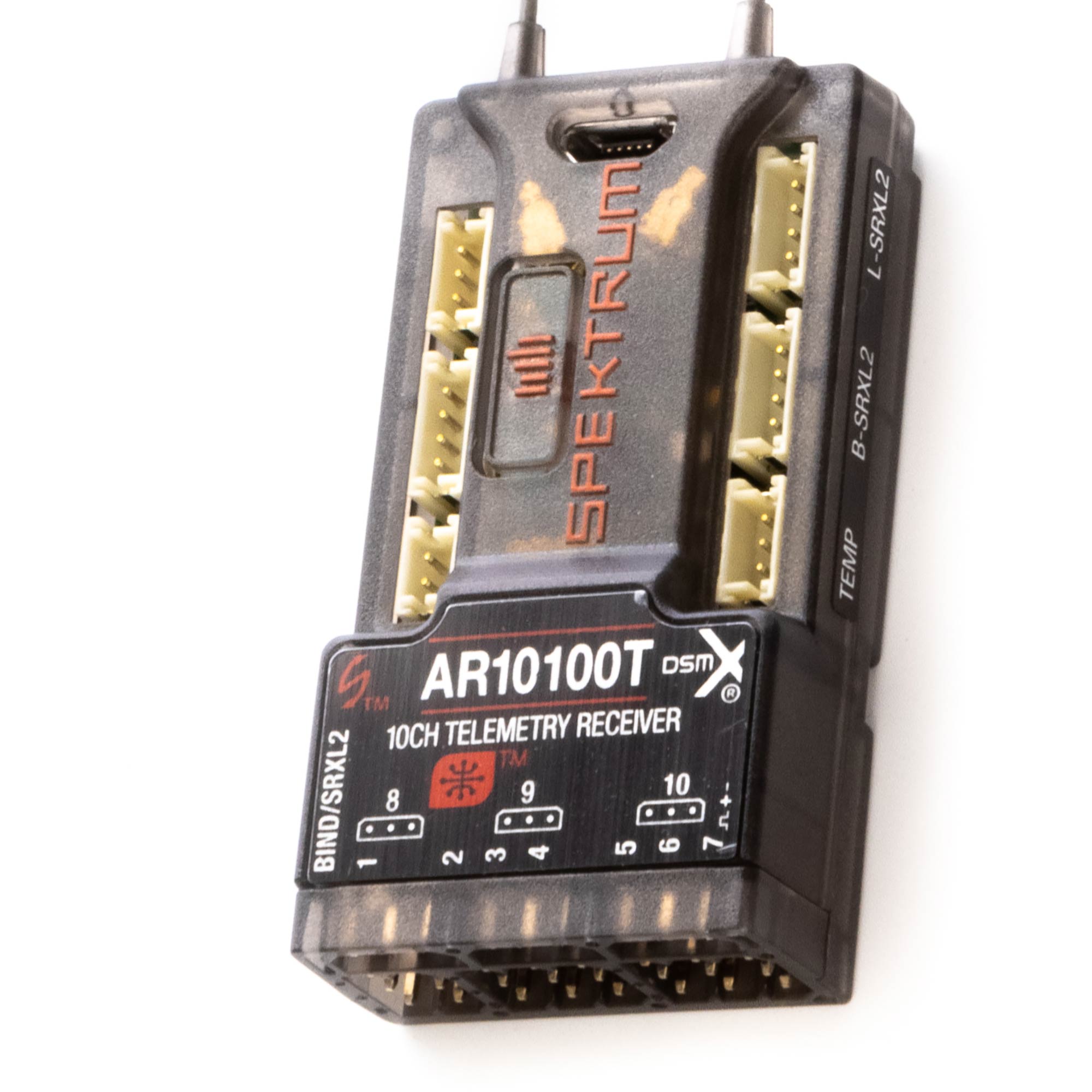

The Spektrum AR10100T 10 Channel Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. It features a full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase. Included XBUS and temperature ports can be used to add additional telemetry sensors available separately. A user-friendly Micro USB port is built into the receiver for easy access to firmware updates via the Spektrum PC Programmer Application. The AR10360T It also features 2 SRXL2 ports for added SRXL2 Remote Receivers (SPM9747 or SPM4651T), available separately, to add additional RF path redundancy. An SRXL2/Bind servo header is available to connect smart devices, bind with a traditional bind plug, or connect a battery. The AR10100T also features a bind button for easy binding with no plugs necessary and offers both SmartSafe'" technology and Hold Last as well as preset failsafe types set through forward programming. Also, the throttle port is Smart ESC compatible right out of the box.
- Compact footprint to fit in a wide range of aircraft
- Full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase
- Features a bind button for easy binding with no plugs necessary
- Features a Micro USB connection for easy registration and updating with any micro USB cable using Spektrum's PC Programmer application
Features
- Compatible with all Spektrum DSM2 and DSMX transmitters
- Compact footprint fits most parkflyer size, sport class and giant scale models
- Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need of additional sensors
- VOLT, RPM and TEMP telemetry ports can be used with traditional Spektrum Telemetry Sensors
- XBUS telemetry port for expandable telemetry capabilities, like GPS, Air Speed, Flight Battery Energy and more
- Micro USB port for easy registration and firmware updating capability
- Bind button allows for easy binding and eliminates the use of bind plug
- Two external antennas will ensure secure RF coverage from all angles of the aircraft
- Additional RF path redundancy with up to 2 additional SRXL2 Remote Receivers, SPM9747 or SPM4651T, sold separately
- Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
- End pin output pins for easy and compact installation
- Forward Programming capable for setting individual failsafe parameters per channel and more
SMART TELEMETRY
To enjoy the full benefits of Smart™ technology, use the AR10100T receiver with a Smart ESC and telemetry capable Spektrum DSMX® transmitter. Vital telemetry data such as current, voltage, temperature and RPM is sent directly to your transmitter in real time.
INTEGRATED BAROMETER
The Spektrum™ AR10100T receiver features an integrated barometer (built-in pressure sensor) to provide altitude and vario telemetry data to your telemetry capable Spektrum Transmitter, without the need to purchase additional sensor modules.
Product Specs
Antenna Length
Band
Bind Method
Channels
Data Port
Dimensions
Failsafe
Forward Programming
Input Voltage
Integrated Variometer
Modulation
Product Application
Product Weight
Programmable
Range
Remote Receiver Ports
Serial Out
Technology
Telemetry
Telemetry Range
Water-Resistant
Compatibility
No results for your given fitment filters
Get Info From Communities
FAQ
The SPM9745 remote receiver is not compatible with the AR10100T. It needs SPM9747 or SPM4651T.
Remote receivers are helpful when the installation has components that could block the RF signal. Examples would be batteries, fuel tanks, engines/motors, or carbon-fiber construction.
Remotes help with signal diversity, as well as physical placement outside these obstructions.
Yes
Yes, the AR10100T receiver is fine for use with a turbine-powered model.
Yes, this is a replacement for the AR9030T. You will still get voice updates as that is a transmitter function, provided you are using a telemetry-capable receiver.
The Spektrum AR10100T 10 Channel Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft.
Product Details
In The Box
- (1) AR10100T DSMX 10-Channel Telemetry Receiver
- (1) Spektrum Flight Pack Voltage Sensor
- (1) Product Manual
Needed to Complete
- (1) Telemetry Capable DSMX Transmitter
- Servo extension(s) may be required
