Spektrum 9.9V 3S Smart G2 LiFe Battery Overview
Drivers and pilots enjoy even more Smart advantages when using Spektrum™ Smart G2 batteries. "Generation 2" features make these powerful LiFe packs even simpler and safer to use together with your Smart charger.
For example, Spektrum Smart G2 technology makes it much easier to balance charge your batteries. Balancing information travels through the unique data wire of each Smart G2 battery's innovative IC3® connector. As a result, only a single connection is needed — no separate balance lead is required.
Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of inactivity. The benefits include longer battery life, better performance over the life of the pack, and the peace of mind that comes from knowing your Smart battery is maintenance-free. You can change the battery's Auto Storage settings based on your own preferences. G2 batteries also offer a storage discharge rate that's three times faster than the previous G1 Smart batteries.
Smart G2 soft-case packs also include thicker internal metal side plates. These plates improve heat dissipation and provide more protection for the cells against punctures during rough landings or in similar impact-prone situations.
As with other Smart batteries, you'll never have to set your own charging preferences for a Spektrum Smart G2 battery until you want to. When a Smart G2 battery is connected to a Spektrum™ Smart charger, its unique charging parameters and health information upload to the charger from the battery's integrated memory microchip. Through the charger you can view and set preferences such as charge rates, so all that's required to charge the pack is connecting it to your Smart charger. Smart technology takes care of the rest.
Spektrum Smart G2 LiPo batteries store a wide variety of essential information, including:
- Battery Brand
- Battery Type
- Battery Capacity
- Battery C Rating
- Individual Cell Voltage
- Battery Temperature
- Charge/Discharge Cycles
Spektrum Smart G2 batteries also maintain an error log, including the number of overheat, overdischarge, and overcharge incidents. This data can help ensure that the battery you've chosen is right for the application. Innovative Spektrum Smart G2 batteries are so easy to use that they nearly take care of themselves. It's easy to achieve peak battery performance, reliability, and longevity with Smart G2 technology!
Note: Smart G2 batteries require the use of a Spektrum Smart Charger. Update your Spektrum Smart Charger for all the latest advancements in Smart Technology.
Spektrum 9.9V 3S Smart G2 LiFe Battery Features
- Simpler and safer to use
- Balance charge through the IC3® connector data wire — with only one connection, no balance lead required
- Faster Auto Discharge at up to 1.5A to safe storage voltage for long battery life and improved performance
- Integrated microchip stores unique parameters for each battery
- Thicker internal metal side plates protect cells and improve heat dissipation
- IC3® and IC5® connectors are also compatible with EC3™ and EC5™ style
- Spektrum Smart charger required
![Diagram of smart battery technology](/on/demandware.static/-/Sites-horizon-master/default/PDPImages/SPMX_DATAWIRE_PP.jpg)
Smart Battery Technology — One Smart Connection
When connected to a Spektrum Smart charger, a Smart G2 battery's unique parameters, health, and balancing information upload automatically from its memory microchip through the IC3® or IC5® connector's data wire. To charge and balance the pack, you simply connect it to your Smart charger. Safe charging begins automatically, and no separate balance lead is needed.
![Screenshot Data rich log diagram with battery information](/on/demandware.static/-/Sites-horizon-master/default/PDPImages/SPMX_Interface-Screen_PP.jpg)
Data Rich
An integrated microchip allows each Smart G2 battery to save vital information such as battery brand, chemistry, cell count, capacity, number of charging cycles, number of discharges, C rating, battery temperature, and internal resistance. Additionally, each battery will save a log of unhealthy events such as over-charge, over-discharge, and over-temperature. This allows you to make the most informed decision about each battery when you are getting your gear ready to go out and have fun.
![Screenshot of smart discharge data helps extend battery life](/on/demandware.static/-/Sites-horizon-master/default/PDPImages/SPMX-Auto-Storage-Screen_PP.jpg)
Smart Auto Storage Discharge
Spektrum Smart G2 batteries practically take care of themselves. G2 batteries come from the factory programmed to automatically discharge to a safe storage voltage of 3.90V after 72 hours of inactivity. The results are longer battery life, better performance over the life of the pack and peace of mind that your Smart battery comes maintenance-free. The battery's Auto Storage settings can be changed by the user based on preferences.
![Quick and easy setup between smart battery and Spektrum Smart device](/on/demandware.static/-/Sites-horizon-master/default/PDPImages/SMART_BATT_PP_3.jpg)
Simple and Quick
Preset charge, discharge, and storage parameters are automatically relayed from your Spektrum Smart G2 battery to your Smart charger, making charging as simple as plugging in the pack. Charge rate of individual batteries can also be user-customized, allowing you to take full advantage of packs with faster charge ratings. The battery's integrated microchip remembers the last charging rate you set, so the next time you plug it in, these settings will automatically take effect.
![IC3 connector feeds battery information](/on/demandware.static/-/Sites-horizon-master/default/PDPImages/SMART_BATT_PP_4.jpg)
IC3® Connector
The innovative Smart connection is made possible by a microchip installed in every battery, which feeds the battery's unique information through a data cable to its IC connector. Spektrum Smart IC3® connectors have been designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. IC connectors are also backwards compatible with EC connectors so you can use Smart batteries with older systems. Smart G2 batteries can be charged only with Smart chargers.
Product Specs
![Prop 65 Warning Prop 65 Warning Icon](/on/demandware.static/-/Sites-horizon-master/default/dw9d982ccb/Service/Prop65/warning-icon.png)
Compatibility
Spektrum Smart G2 Family
Get Info From Communities
Product Details
In The Box

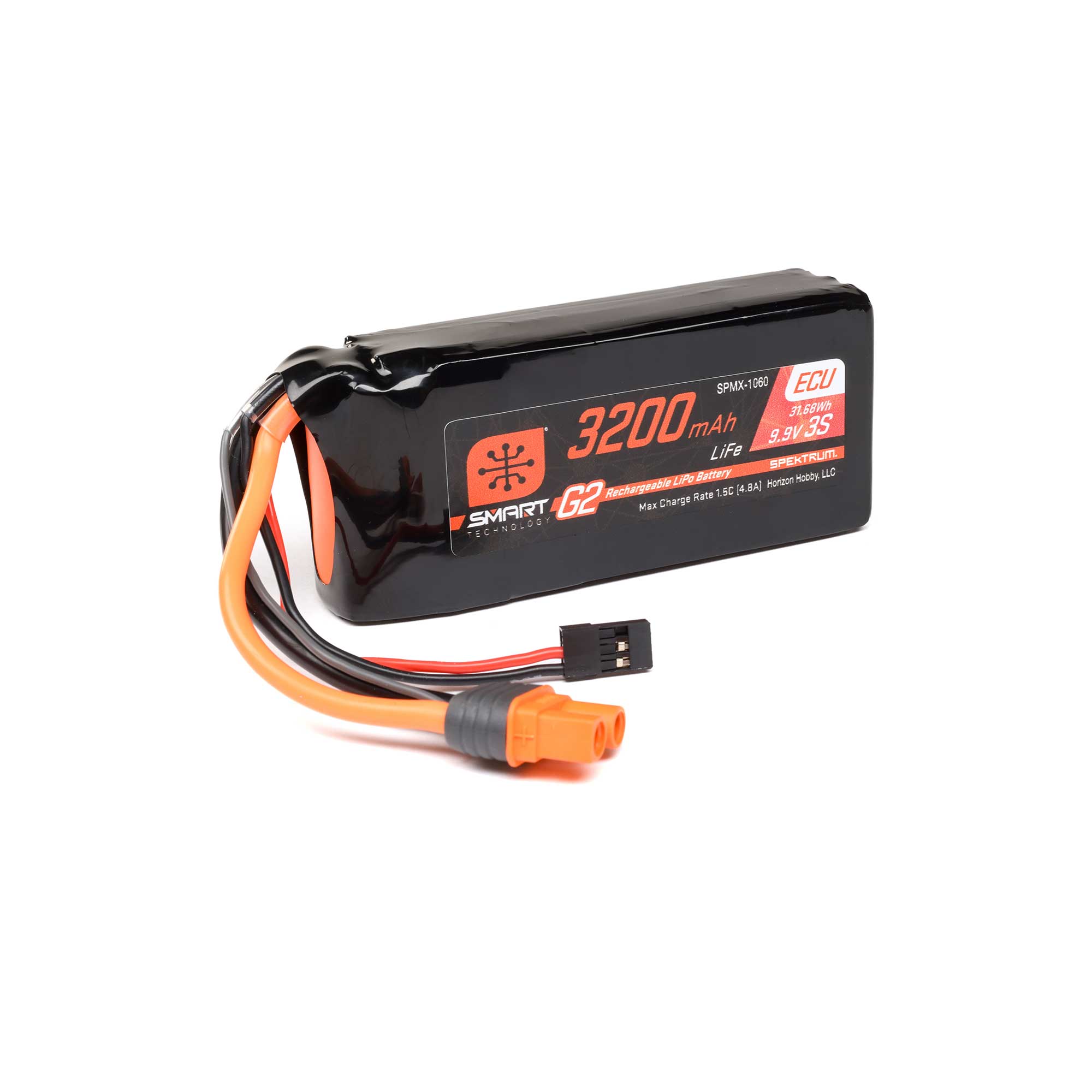

- (1) 9.9V 3200mAh 3S 10C Smart G2 ECU LiFe Battery: IC3
