Discontinued | This Item is No Longer Available

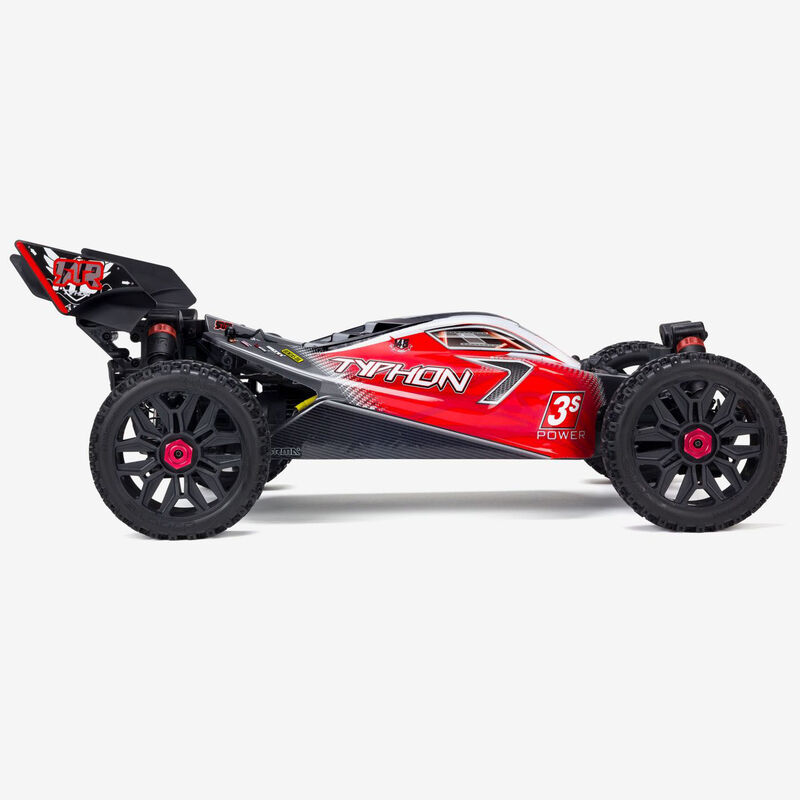

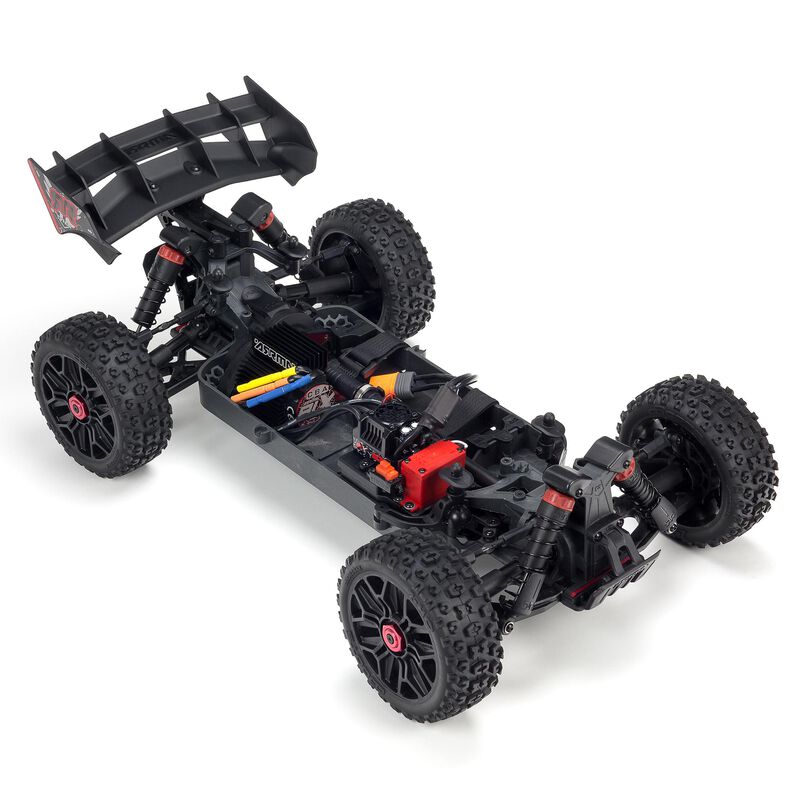

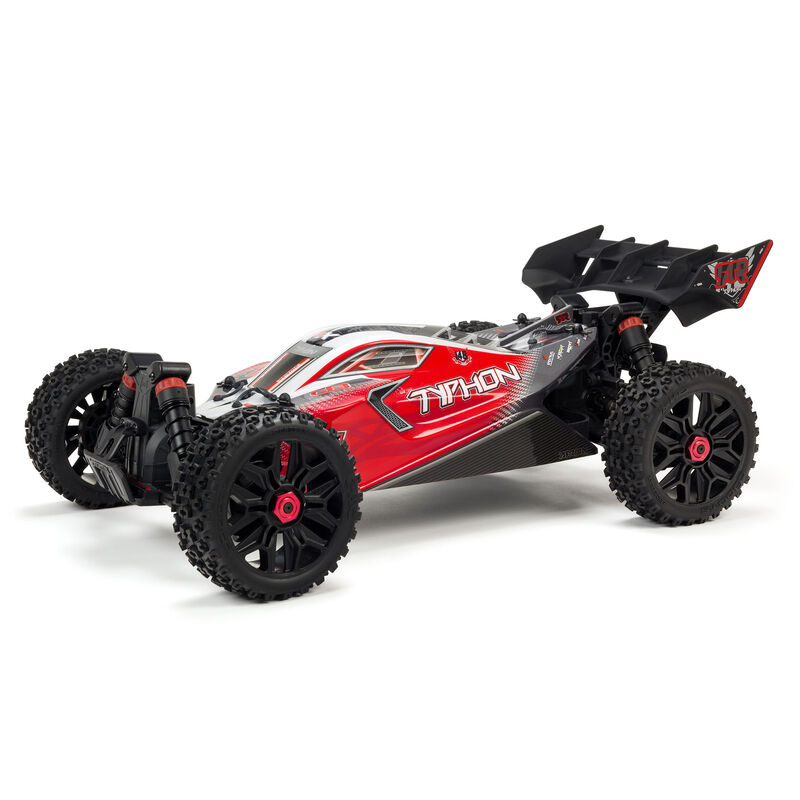

1/8 TYPHON 3S BLX 4WD Brushless Buggy with Spektrum RTR, Red

Item No.
ARRMA - ARA102722
Selected Store
1/8 TYPHON 4X4 V3 3S BLX Brushless Buggy RTR, Red
1/8 TYPHON 4X4 V3 3S BLX Brushless Buggy RTR, Red
ARA4306V3
View Alternate Product Details

Introduction

The original, 3S-capable TYPHON™ 4X4 BLX RTR Speed Buggy delivered power, strength, style — and the ability to reach extreme 50+ mph speeds. Now equipped with the high-quality Spektrum™ STX2 radio, it's an even smarter move into 1/8 scale buggy bashing!

Needed to Complete
  • 35C 2S or 3S 35C+ LiPo or 6 to 8 Cell NiMH Hardcase Battery with IC5â„¢/EC5â„¢ Connector
  • Suitable LiPo or NiMH Balancing Charger
  • (4) AA Batteries
  • LiPo Charging Bag (recommended)
What's in the Box?
  • (1) ARRMA 1/8 TYPHONâ„¢ 4X4 BLX RTR Speed Buggy with:
    • (1) Spektrumâ„¢ SRX200 2-Channel Waterproof Receiver (installed)
    • (1) ADS-7M Waterproof, Metal Gear Servo (installed)
    • (1) ARRMA BLX3660 3200Kv Brushless Motor (installed)
    • (1) BLX100 ESC 2S/3S with IC5â„¢ connector (installed)
  • (1) Spektrumâ„¢ STX2 2.4GHz 2-Channel Transmitter
  • (1) Product Manual

Overview

The new Spektrum STX2 2.4GHz 2-channel radio system provides many of the features found in high-end 2.4GHz radio systems, including throttle and steering reversing, throttle and steering travel adjust, and throttle limiting. The radio system also includes the Spektrum SRX200 2-channel waterproof receiver.

ARRMA® powers the 1/8 TYPHON 4X4 3S BLX with its BLX100 brushless system for incredible torque, acceleration, and speed. This 3S LiPo-capable setup has already proven the speed and toughness of its 3200Kv brushless motor and 100A ESC, now equipped with an IC5™ connector (EC5™ compatible). The transmission and chassis are ruggedly engineered to take full advantage of the electronics' power — in ARRMA tradition, DESIGNED FAST, DESIGNED TOUGH.

The low center of gravity, with wide arms and narrow buggy wheels and tires, improves handling over all of your favorite bashing terrain — race tracks, trails, muddy courses, skate parks, and more. With its metallic-finish body and forged composite detail, the TYPHON 4X4 3S BLX also looks as great as it performs. A stylish, high-downforce wing keeps all four wheels planted as you explore the upper limits of its outrageous speed range!

Features

  • Extremely durable — DESIGNED FAST, DESIGNED TOUGH!
  • Fast, 50+ mph speeds
  • Ideal entry into brushless buggy bashing
  • Spektrumâ„¢ STX2® 2.4GHz Radio System:
  • BLX100 Brushless System
  • Easy-access power module
  • Easy-access electronics module
  • Metal-geared differentials
  • Double wishbone front and rear suspension
  • Oil-filled shocks with adjustable links
  • High-speed center driveshaft support
  • Built-in servo saver for robust, responsive steering
  • Adjustable turnbuckles
  • Adjustable ride height
  • Adjustable body mounts
  • Tough multi-spoke matte black wheels
  • Multi-terrain dBoots® 2-HQ tires
  • 17mm red-anodized aluminum hexes
  • Durable composite C-hubs
  • Accepts standard 1/8 scale buggy wheels and tires
  • Metallic-look body with forged composite detail

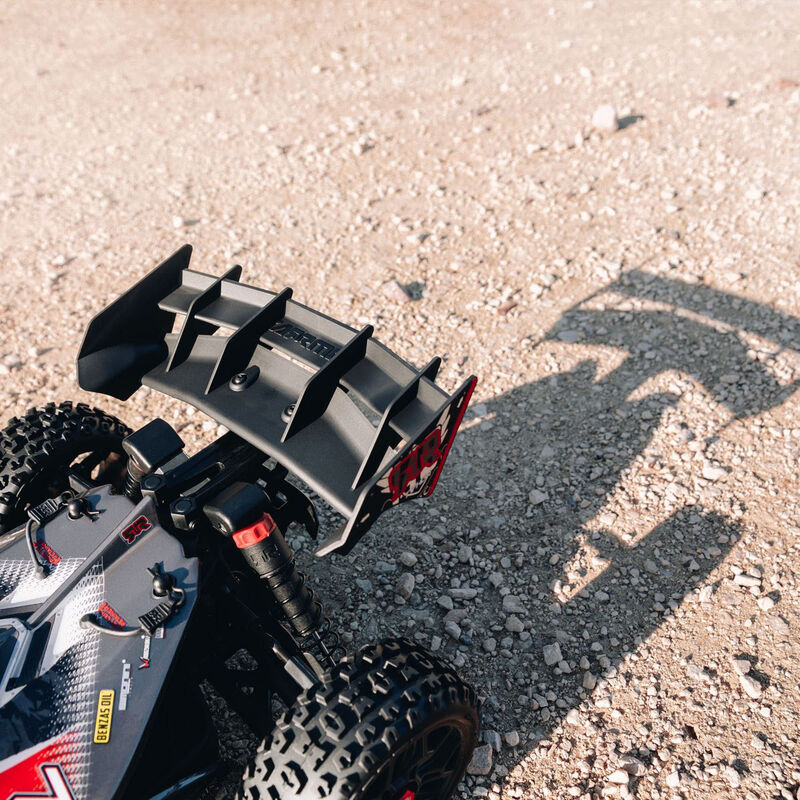

  • High-downforce wing
  • Realistic decals
  • Waterproof electronics *
  • 2-year limited warranty **
    • * For details on waterproof standards, please refer to the product instruction manuals

      ** Please see the product manual for warranty details

Spektrum™ STX2<sup>®</sup> 2.4GHz Radio System
Spektrum™ STX2® 2.4GHz Radio System
  • 2-Channel SRX200 waterproof receiver
  • Built-in 3-position throttle limiter
  • Extended range and interference-free performance
  • Throttle/steering reversing
  • Throttle/steering travel adjust
  • Throttle limiting
  • ADS-7M waterproof, metal gear servo
    • Max. Servo Torque @6V: 84 oz-in (6 kg-cm)
    • Max. Servo Speed @6V: 0.14 s

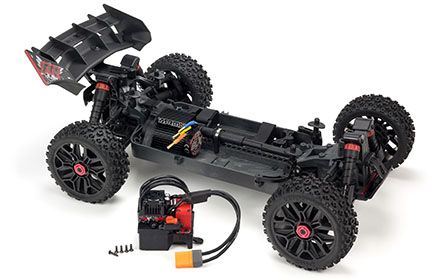

BLX100 Brushless System
BLX100 Brushless System
  • BLX3660 3200Kv brushless motor
  • BLX100 ESC 2S/3S with IC5â„¢ connector (EC5â„¢ compatible)

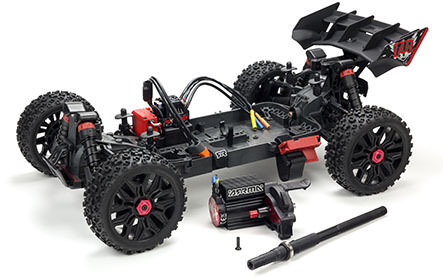

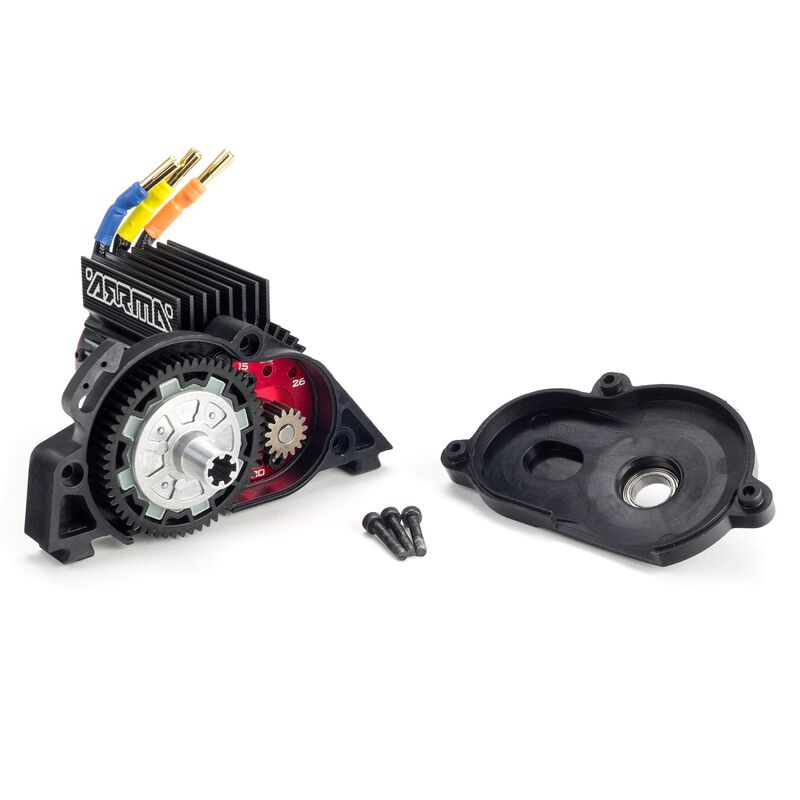

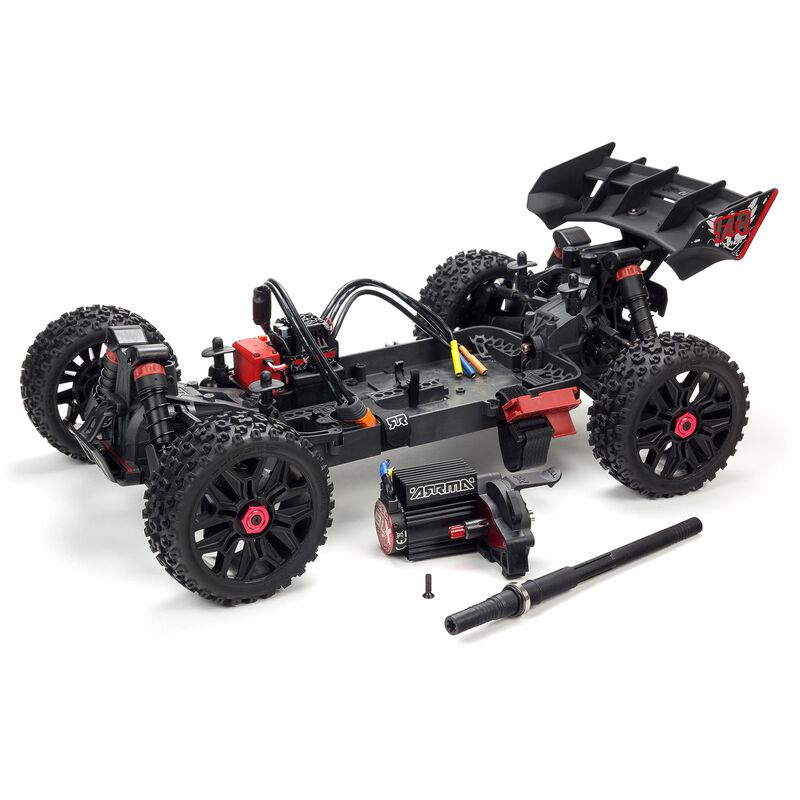

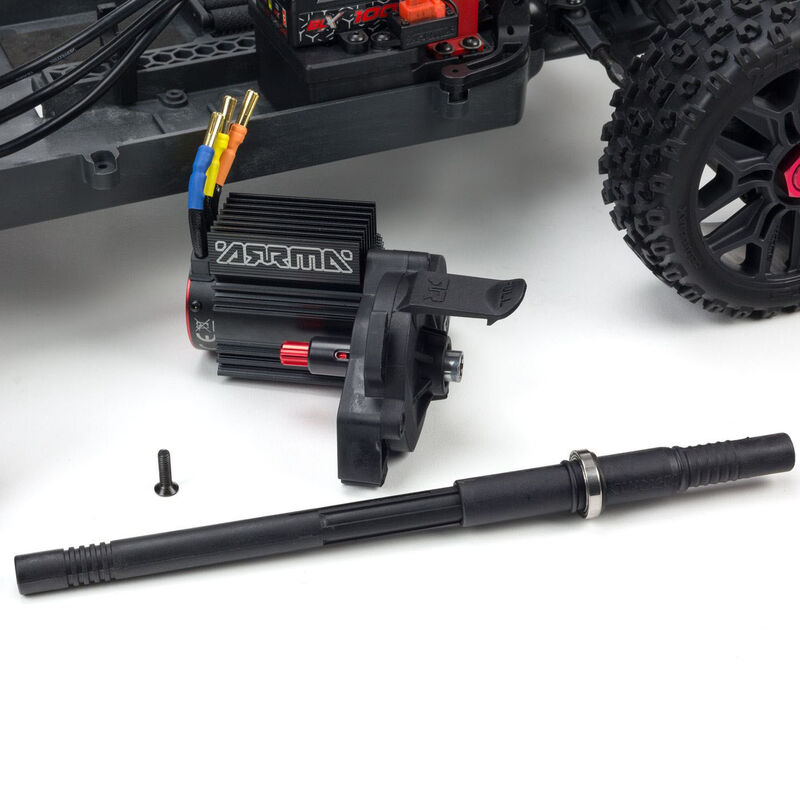

Easy-access Power Module
Easy-access Power Module
  • Detaches from chassis as a complete unit by removing one screw
  • Contains motor, motor plate, slipper clutch assembly and gear cover

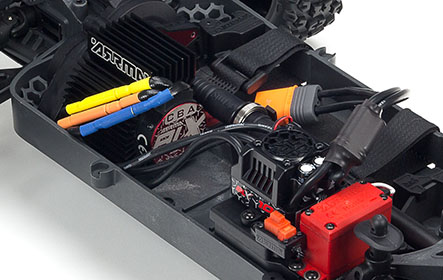

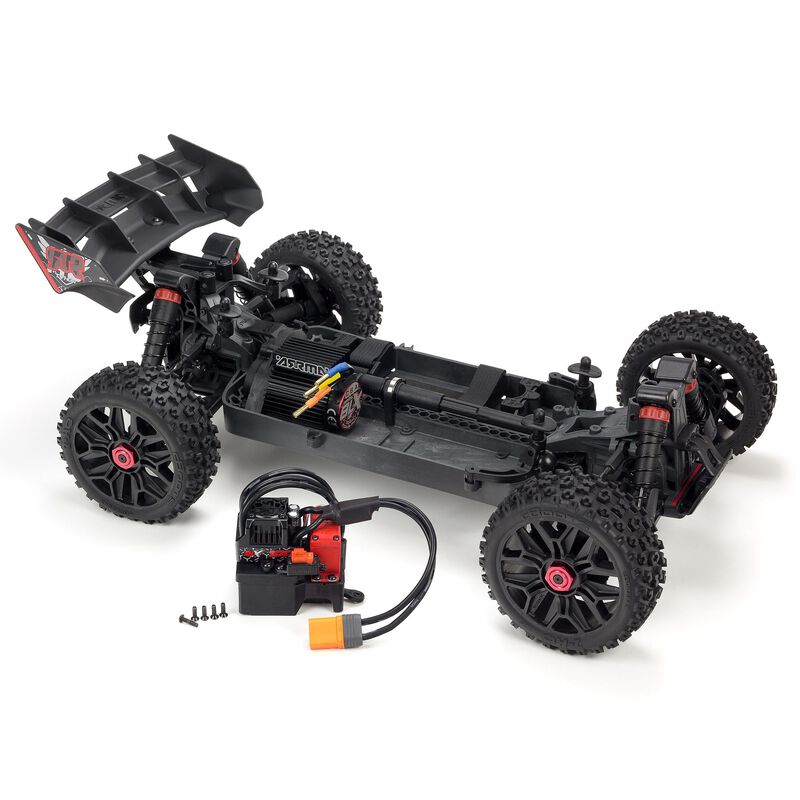

Easy-access Electronics Module
Easy-access Electronics Module
  • Two-piece molding screwed to the chassis contains a waterproof receiver box, servo mount, and ESC tray
  • Receiver mounts inside sealed module for protection from dirt and moisture
  • ESC screws to the top for easy maintenance and switch access
  • Servo mounts on the side for quick servicing

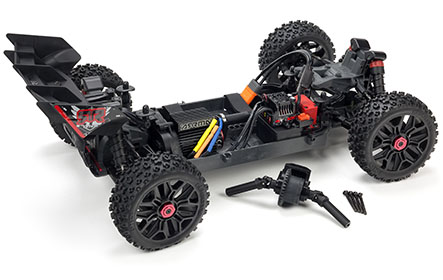

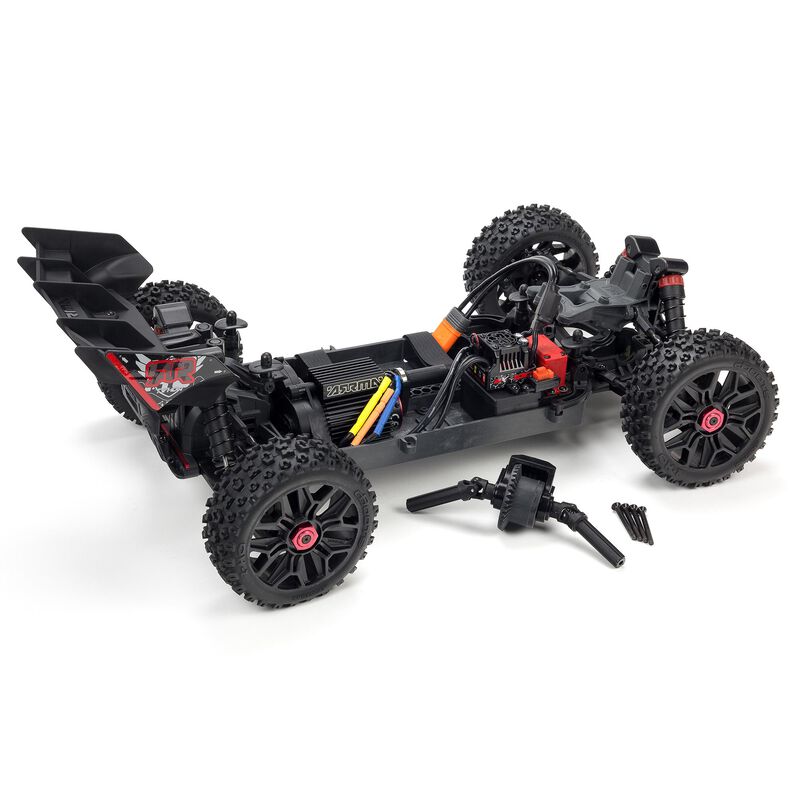

Metal-geared Differentials
Metal-geared Differentials
  • Large pitch gears engineered to handle BLX brushless power
  • Internal metal gears chosen for extreme bashing, longevity and reliability
  • Easy-access front and rear diff module removal

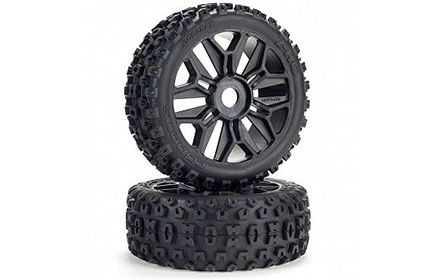

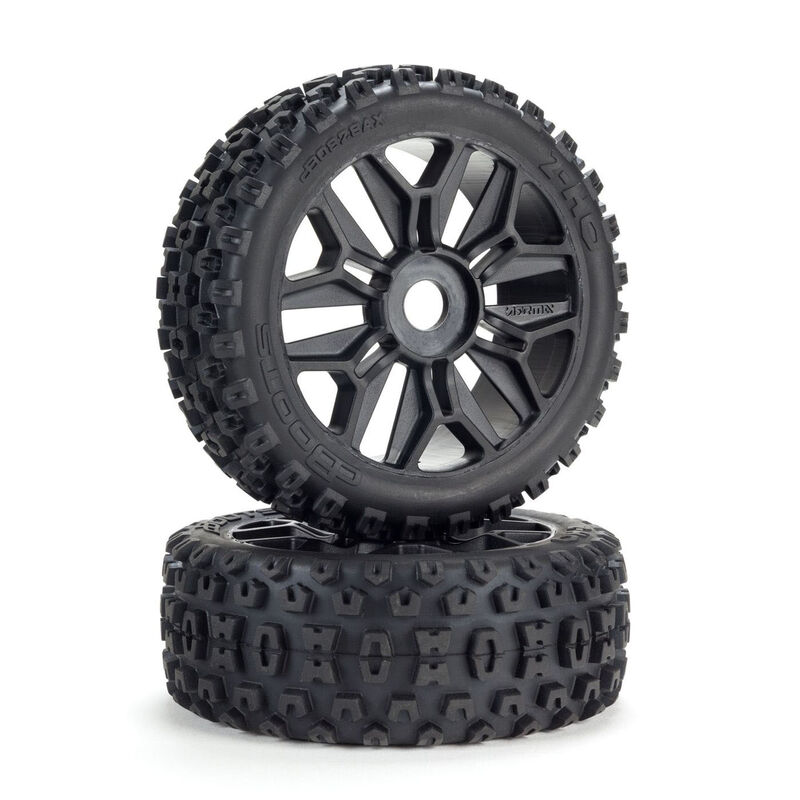

dBoots® 2-HQ Multi-terrain Tires on Tough Multi-spoke Wheels
dBoots® 2-HQ Multi-terrain Tires

Black multi-spoke wheels and 2-HQ all-terrain tires for superb traction and cornering wherever you may roam.



Product Specs

Approximate Assembly Time
Less than 1 Hour
Ball Bearings
Transmission only
Battery
5000mAh+ 35C+ 2-3S LiPo or 6-8 Cell NiMH Hardcase Battery with IC5/EC5 Connector (sold separately)
Battery Tray Dimensions
5.5 x 2 x 1.9" (140 x 51 x 48mm) with battery mounting blocks in place
Body
Painted, decals applied, and trimmed
Brakes
Electronic
Bushing Material
Plastic
Charger
Sold Separately
Chassis
Molded composite
Completion Level
Ready-To-Run
Differential
Oil filled, metal internal geared differentials
Drivetrain
4WD
Final Drive Ratio
10.83:1
Gear Pitch
0.8 Module
Ground Clearance
1.65 in (42mm)
Internal Gear Ratio
2.85:1
Max Battery Dimensions
6.50 x 2 x 1.9" (165 x 51 x 48mm) with battery mounting blocks removed
Motor Size
3660
Outer Diameter
4.60 in (117mm)
Pinion
15T
Power Type
Electric
Product Height
7.68 in (195mm)
Product Length
20.12 in (511mm)
Product Weight
5.68 lb (2.58kg)
Product Width
12.05 in (306mm)
Radio
Included
Scale
1/8
Servos
Waterproof, metal gear
Shock Type
Coil-over-oil, Molded Composite
Spur Gear
57T
Suspension
Independent
Tire Tread
2-HQ
Vehicle Type
Buggy
Water-Resistant
Yes
Wheel Type
1/8th Buggy, 17mm Hex
Wheelbase
12.91 in (328mm)
