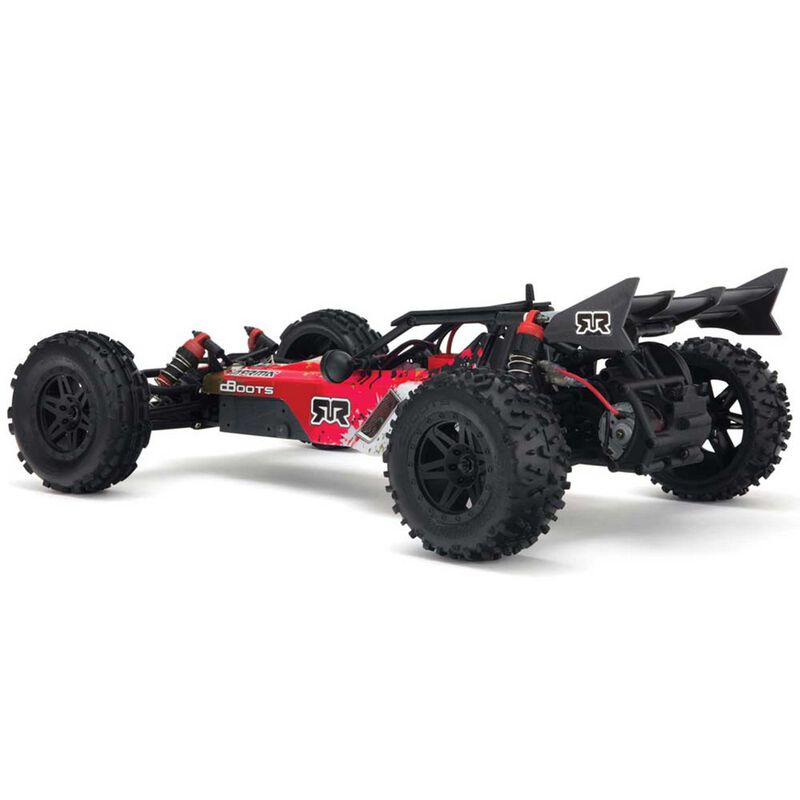

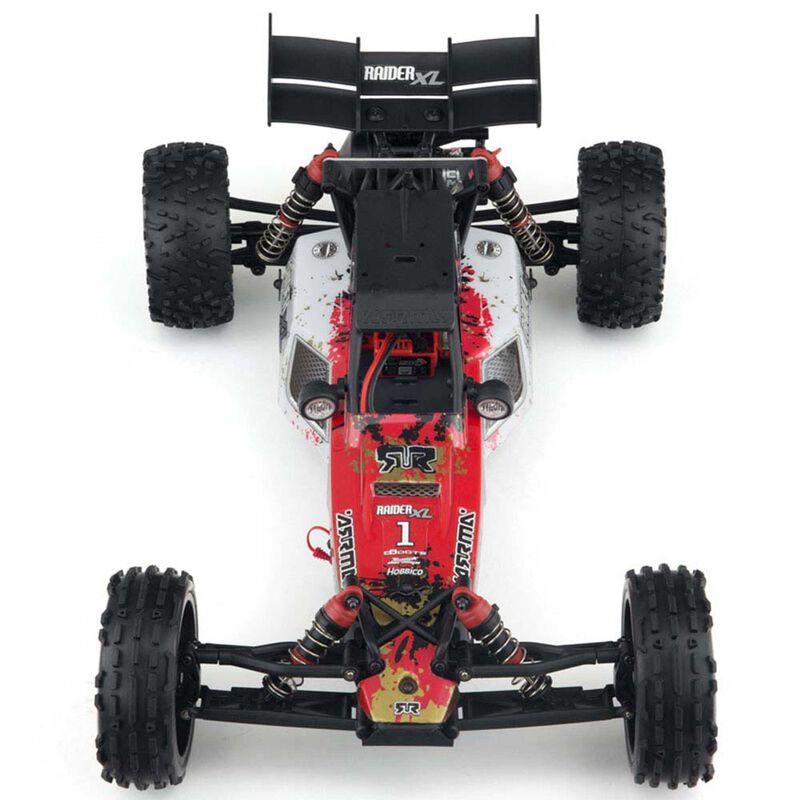

1/8 RAIDER XL 2WD Mega Brushed Buggy RTR, Red/White
1/8 RAIDER XL 2WD Mega Brushed Buggy RTR, Red/White
1/8 RAIDER XL 2WD Mega Brushed Buggy RTR, Red/White
Discontinued | This Item is No Longer Available

1/8 RAIDER XL 2WD Mega Brushed Buggy RTR, Red/White

Item No.
ARRMA - ARAD85RW
4.3
Selected Store
Needed to Complete
  • AA Batteries: Four for transmitter
  • Track equipment
What's in the box?
  • (1) Raider XL Mega Buggy with Brushed Motor, ESC, Battery, Charger Radio and printed Body
  • (1) User Manual

Specifications

    Vehicle
  • Length: 18.3" (465mm)
  • Front Width: 11.4" (290mm)
  • Rear Width: 11.8" (300mm)
  • Height: 2.9" (75mm)
  • Weight: 4.16 lb (1.89 kg) with supplied battery 3.59 lb (1.63 kg without battery
  • Wheelbase: 13.0" (330mm)
  • Internal Gear Ratio: 2.6
  • Standard Final Gear Ratio: 12.56
  • Final Gear Ratio Range: 7.02 - 17.4
  • Front Spring Rate: 73.5
  • Rear Spring Rate: 47
  • Maximum Battery Dimensions: 7.9 x 1.9 x 1.1" (200 x 48 x 27mm)
    Body
  • Length: 11.3" (287mm)
  • Width: 6.7" (170mm) at widest point
  • Height: 2.5" (63.5mm)

Key Features

  • Chassis: Composite, battery access on bottom of chassis, composite side bumpers for maximum protection
  • Drive: Rear wheel with dogbone style driveshaft
  • Differential: Metal planetary gears
  • Radio: Tactic TTX300 with user programmable 3rd channel, steering rate adjustment, 70/30 throttle setting, and 3-channel TR326 high voltage (7.4V) micro receiver with failsafe, waterproof receiver box
  • Steering Servo: ADS-5 V2, 70oz/inch (5kg/cm) torque @6V, waterproof, dual ball bearing
  • Motor: MEGA 15 turn brushed
  • Motor Mount: Composite
  • Electronic Speed Control: Arrma MEGA waterproof 6-7 cell NiMH and 2S LiPo compatible, male T-plug battery connector
  • Shocks: Oil filled, composite body
  • Battery: 2000mAh NiMH 7.2V
  • Battery Charger: Arrma ADC-N6 wall type charger, charges 6-cell NiMH batteries only, multi-region socket adapter adapts to different types of wall sockets around the world
  • Wheels: Multi-spoke nylon, matte black in color with 12mm hex, 2.2 - 2.9" (56 - 76mm) bead diameter
  • Tires: dBoots 4.3" (110mm) diameter, soft inserts
  • Body: Trimmed and printed polycarbonate, red and white color scheme
  • Spur Gear: 87T 48 pitch plastic
  • Pinion Gear: 18T 48 pitch metal
  • Caster: Non-adjustable caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
  • Camber: Non-adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle

Product Specs

Manufacturer #
AR102642

Compatibility

No results for your given fitment filters

Video Overview
