Mini-Z Buggy Overview
The advanced compact design includes a 4x4 drive train with a slipper clutch to protect the gear system, and 4-wheel independent double wishbone suspension with oil-filled shocks to deliver true racing buggy performance. Most critical components are protected within the high-rigidity dustproof chassis shell. 7-stage geared steering servo provides plenty of torque for precision steering response and combines with the control program to realize the MINI-Z’s signature linear handling and light feel. The circuit board also features manual left/right volume adjustment for the optional gyro unit that stabilizes straight line running and improves cornering control. Modeled on the popular Inferno MP9, the MINI-Z buggy body matches performance with style featuring a distinctive printed color scheme complimented by black wheels for the sharpest looking machine on the track. The fully pre-assembled ready-to-run package makes it simple and enjoyable for anyone to experience advanced R/C buggy performance, whether it’s your first car or as fun-driving second car.
- Fully Pre-Assembled Chassis
- Real Racing Performance
- Great For Indoor Practice
- Includes Syncro KT-531P Transmitter
- Most Optional Parts Already Released
Features
- Readyset package allows model to be enjoyed straight after purchasing batteries
- Fully pre-assembled chassis with printed polycarbonate body
- Real racing performance will please buggy owners. Great for indoor practice
- Includes Syncro KT-531P transmitter. Allows various setting adjustments such as steering angle
- FHSS 2.4GHz R/C system removes the need to manage frequency bands
- Frequency crystals are not required and up to 40 cars can be run at the same time
- Optional gyro unit set can be installed. Gyro sensitivity can be manually adjusted on the chassis
- Most optional parts already released for MINI-Z Buggy can be installed

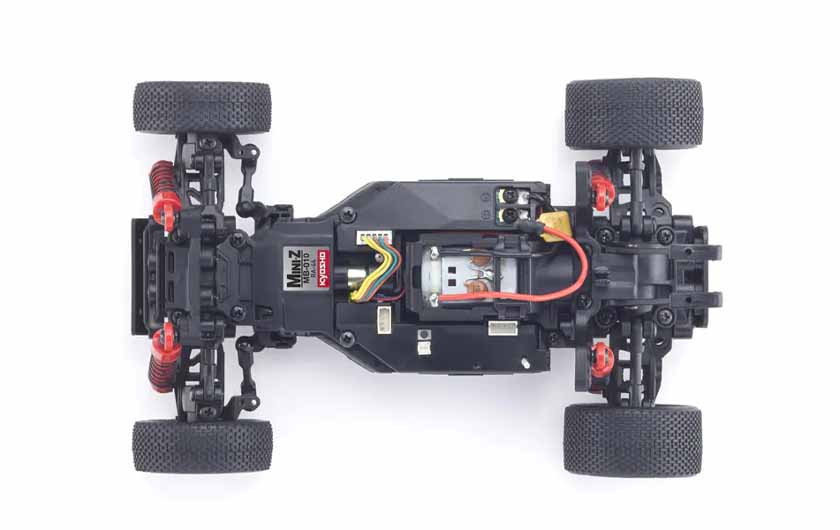

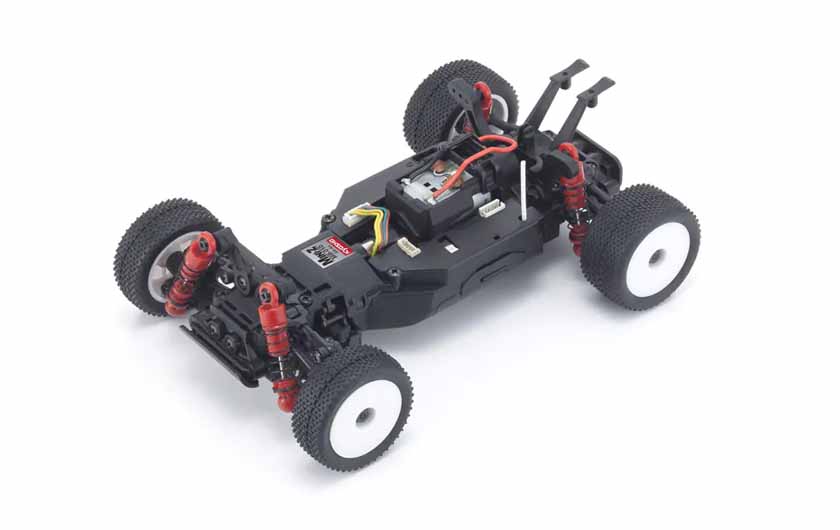

Drivetrain
Shaft driven 4WD and 4-wheel independent suspension are condensed in the MINI-Z’s compact size. The chassis powers easily over small bumps and gaps.

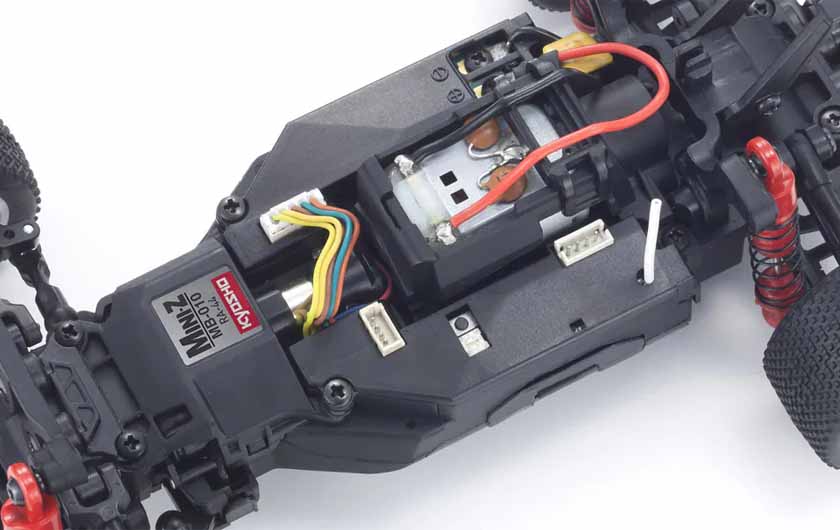

Dust Proof Chassis
Main parts including sealed diff gearbox are contained within the dust proof structure. 15 ball bearings and a slipper clutch make this machine ready for serious action.

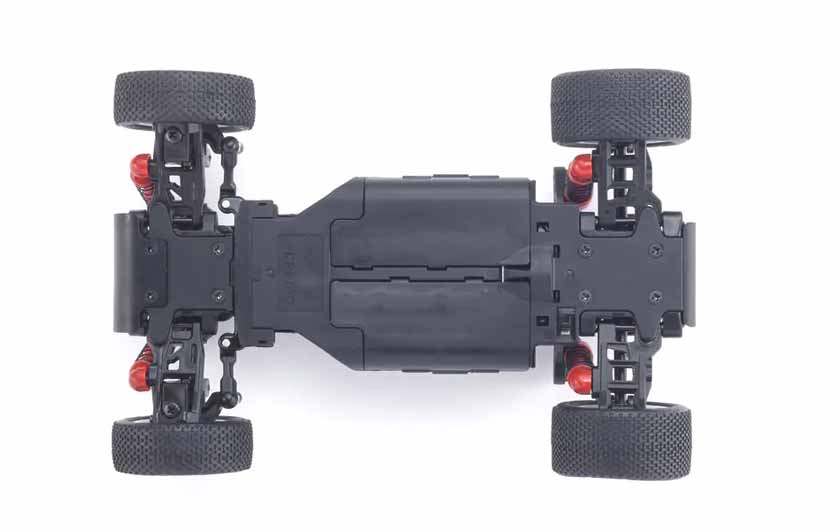

Chassis Underside
Flat finish to underside of chassis is achieved with contours for each part shape. Efficient design allows tie-rods to be changed simply by removing the chassis cover.
Optional Gyro
Includes connector for optional gyro unit and the tiny volume allows gyro unit’s sensitivity to be manually adjusted.

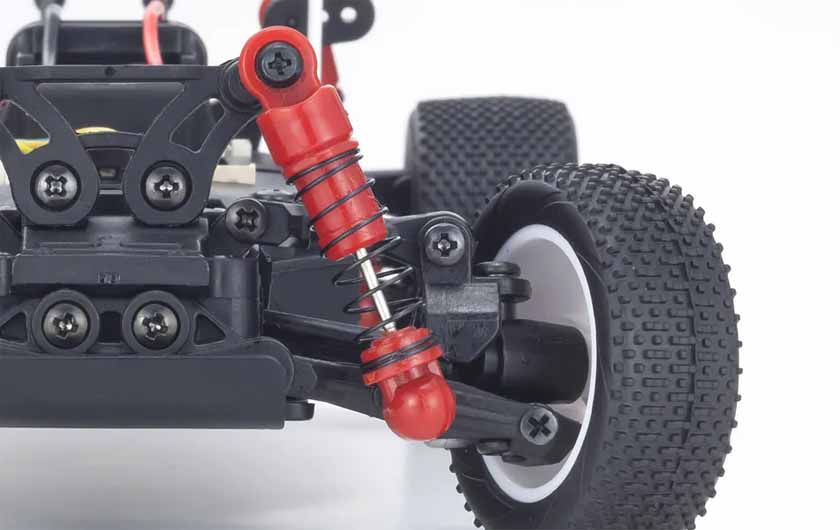

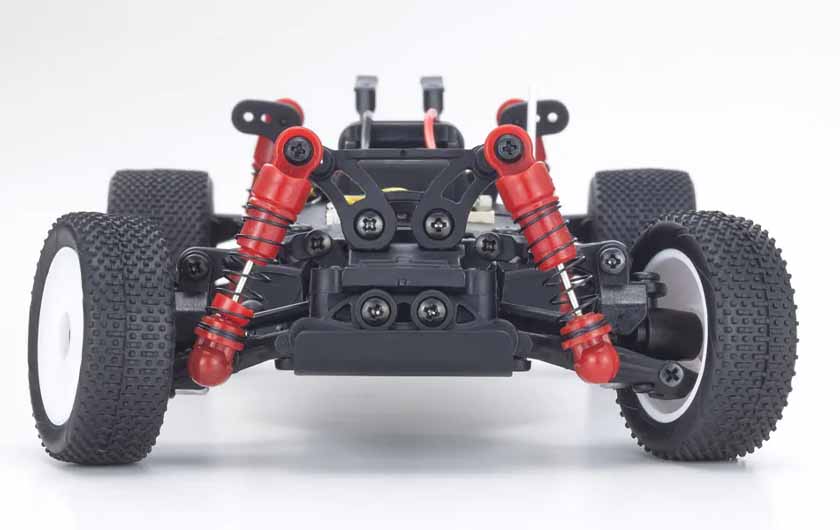

Suspension
4-wheel independent double wishbone suspension equipped with oil shocks. Delivers surefooted road holding over a variety of different road surface conditions.
Driveshafts
Realizes integrated coupling of drive shafts despite the constraints of its size. Also front suspension arms produce a 10-degree skid angle for improved rough-road performance.

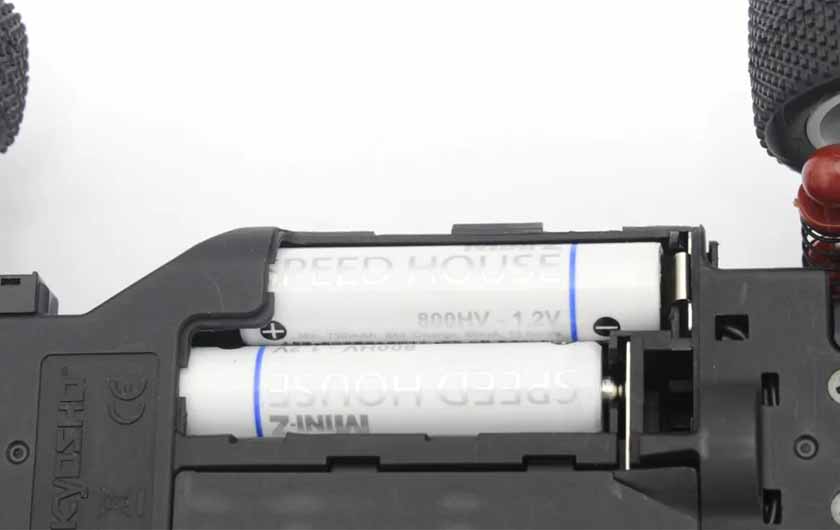

Battery Placement
Chassis features shell structure with battery boxes on each side. High rigidity extracts full effectiveness from the suspension.

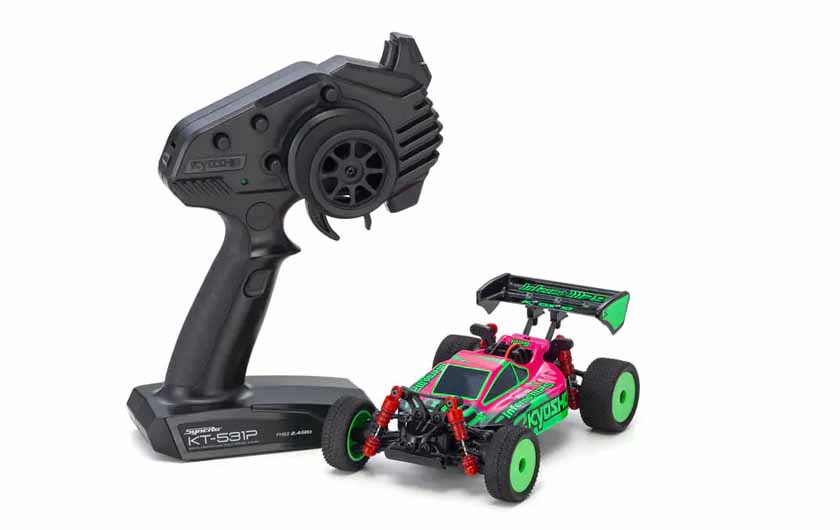

KT-531P Transmitter
RTR includes KT-531P transmitter and other items. Requires only 4 batteries for the transmitter to start enjoying realistic buggy performance.
Product Specs
Get Info From Communities
Product Details
In The Box
- (1) 1/28 Inferno MP9 Mini-Z 4x4 Off-Road Buggy RTR
Needed to Complete
- (4) AAA Batteries for Chassis
- (4) AAA Batteries for Transmitter
