Discontinued
|
This Item is No Longer Available
1/10 VS4-10 Ultra Black Anodized Axles, Origin Halfcab, Kit
Item No.
Vanquish Products -
VPS09006
Selected Store
Overview
The VS4-10 Ultra represents the top tier of RC scale vehicle kits, providing the highest quality materials, superior design, and the most durable portal axle platform available in its market. The VS4-10 Ultra offers a list of features that have never been matched, providing a building and driving experience out of the box that are sure to impress.
- VFD Spec Full Ball Bearing Transmission
- Currie Enterprise Portal Axle Housings
- Chromoly VVD Axle Shafts and Portal Overdrive Gears
- VXT 4.65" Tires with Firm Foam Inserts
- Origin Halfcab Clear Polycarbonate Body
Features
- Full ball bearing transmission with scale molded housing
- 80mm Incision scale shocks with tops captured to shock towers in double shear for maximum support
- Currie Enterprises Portal F9 front and rear axles
- Wide profile steel machined gears and hardened chromoly shafts
- Low motor position with extended skid plate for protection (motor not included)
- Retro Origin halfcab laser cut body with separate dash and many scale details
- 3-link Panhard front suspension
- 4-link double triangulated rear suspension

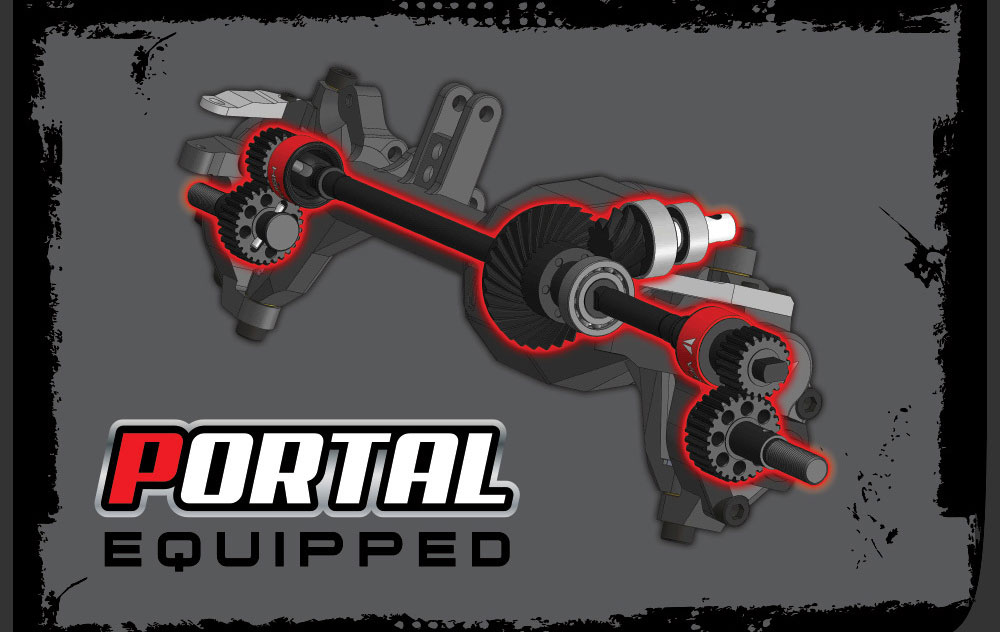

Portal Drivetrain
The VS4-10 Ultra drivetrain utilizes the VFD Spec transmission and our proven portal axle design you already know and trust. The licensed Currie Enterprises Portal F9 style front axle features an offset front differential housing and uses chromoly VVD axle shafts, chromoly portal box gears, 6mm output shafts, high-pinion hypoid ring gear, chromoly 6 bolt spool and patent pending one-piece bearing retainers to create an incredibly scale and durable front axle assembly. Integrated inner c-hubs create an unmatched scale look and are strengthened to provide the most durable axle housing possible, with easily replaceable chromoly threaded inserts for the knuckle kingpin screws. The rear Currie Portal F9 style axle features a centered differential housing and equal length chromoly axle shafts, with the same gears and spool found in the front axle.

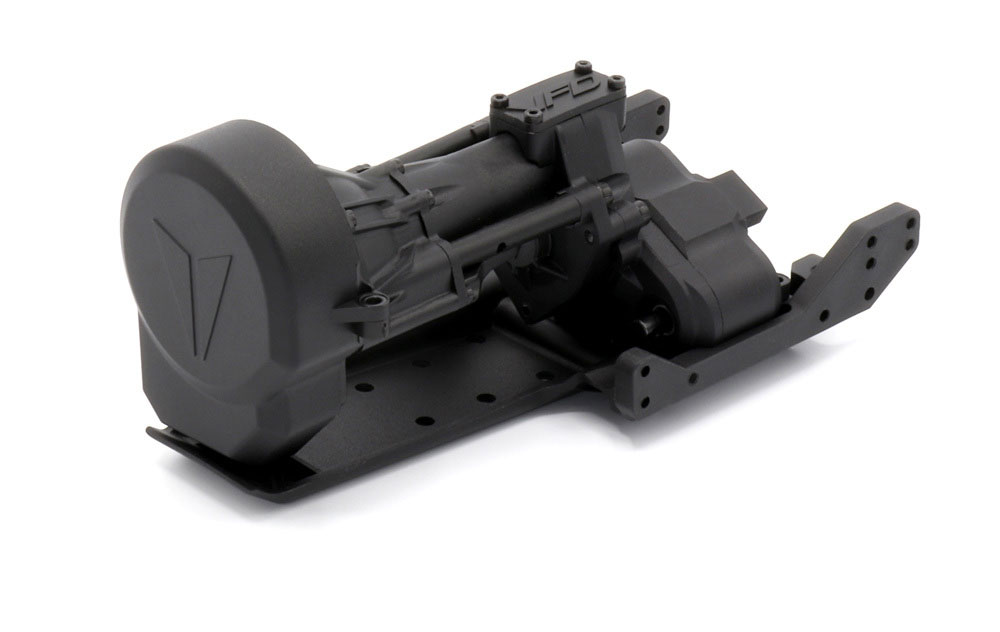

Transmission
The VFD Spec Transmission from Vanquish Products is designed to provide an optimal balance of performance, scale appearance, strength and versatile optional accessories. The VFD’s design places the motor forward and as low as possible to keep the weight where you want it. The VFD’s combination of offset front T-case output and offset pumpkin of the Currie front axle make this possible. The T-case utilizes unique bearing plates for high strength bearing positioning and the elimination of flex found in traditional housings. The modular design of the bearing plates allow for optional gear ratios to be used inside the T-case.

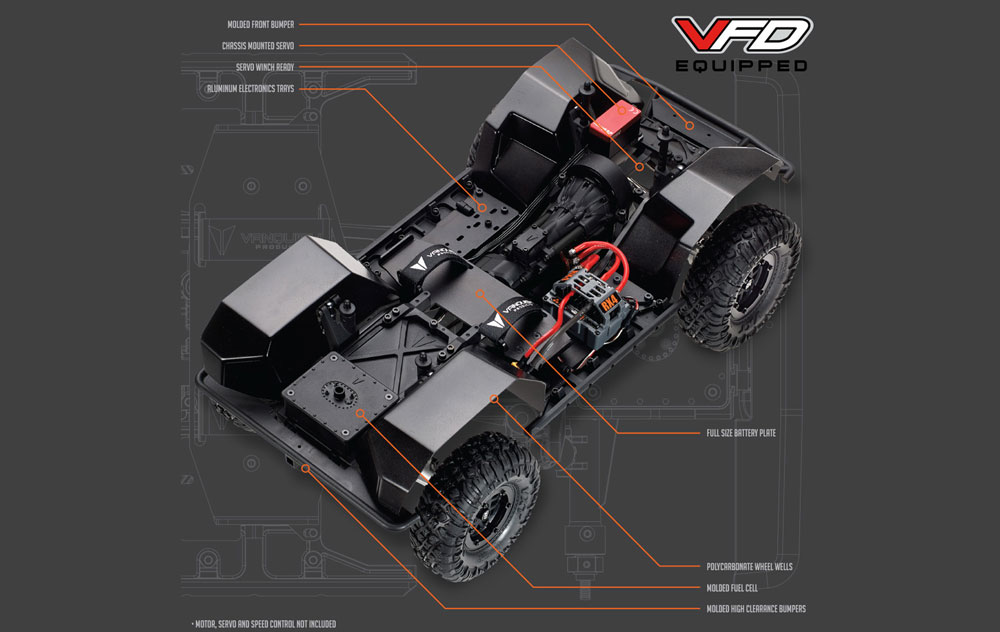

Chassis
Vanquish Products VS4-10 Chassis is made to provide you with a balance scale looks and unhindered performance. The steel C-channel design provides scale detail, molded front and rear cross members fill the chassis rails in the highest stress locations for ultimate strength and provide features like dual servo mounts, winch line routing, and a fuel cell. The molded rock sliders come with a replaceable outer portion that perfectly fits the Origin Halfcab body. The VS4-10 chassis is developed to work with the included Vanquish Products VFD Spec transmission. The panhard mount on the chassis is made from machined aluminum to withstand the impacts of severe trail conditions. Molded shock towers capture the top of the 80mm Incision Scale Shocks in double shear for maximum support. The aluminum battery and electronics trays provide multiple locations for battery and electronics placement. Full width molded front and rear bumpers increase approach and departure angles and allow for flexibility during impacts on the trail.

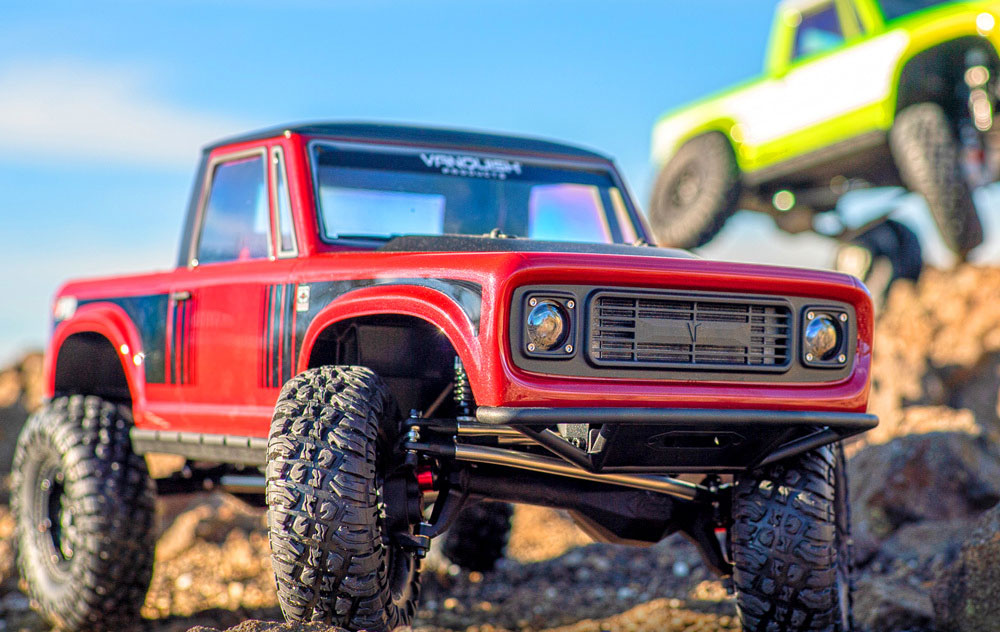

Halfcab Body
The Origin Halfcab polycarbonate body offers retro styling with a modern flair. The full polycarbonate interior was designed by Knight Customs with front bucket seats, a detailed dash and large cargo area in the back. The dash attaches to the interior and molded plastic details like steering wheel and gear shifter help bring the interior to life. The detailed front grill assembly is injection molded and features 10mm LED ready headlight buckets, with a scale radiator assembly, fans, and fan shrouds. In addition, the front light buckets can be replaced with optional Vanquish Rigid Industries Q-Series light pods for even more light! The rear light buckets fit 5mm LEDs, so everyone will take notice when you are coming or going. Other scale details like windshield wipers, door handles and fuel filler cap are included to step up the appearance even further. The entire body, interior and mounting holes are all laser cut – so all you need to worry about is paint.

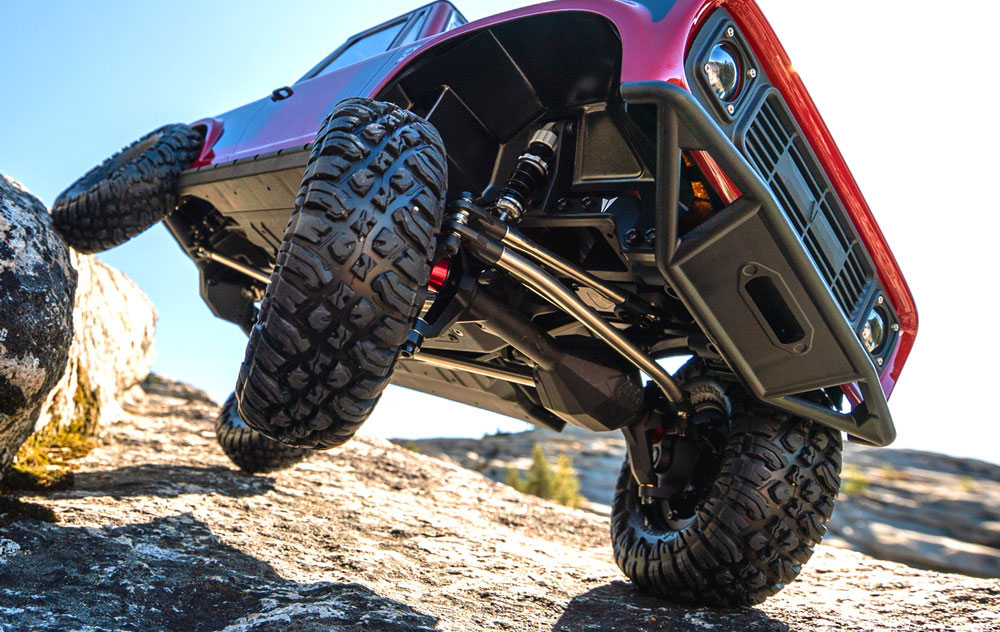

Suspension
The VS4-10 features Incision 80mm Scale shocks with aluminum threaded bodies, dual X-ring seals, locking preload collars, keyed spring cups, polished steel shock shafts, and machined pistons. The front 3-link with panhard suspension provides scale looks by keeping the servo out of sight, while still providing room for large suspension travel. The suspension pivots on a full set of stainless steel links to keep the weight down low with a smooth transition from the link to the rod ends. All suspension mounts are sized to fit to the rod end pivot ball perfectly and eliminate excess side to side play.

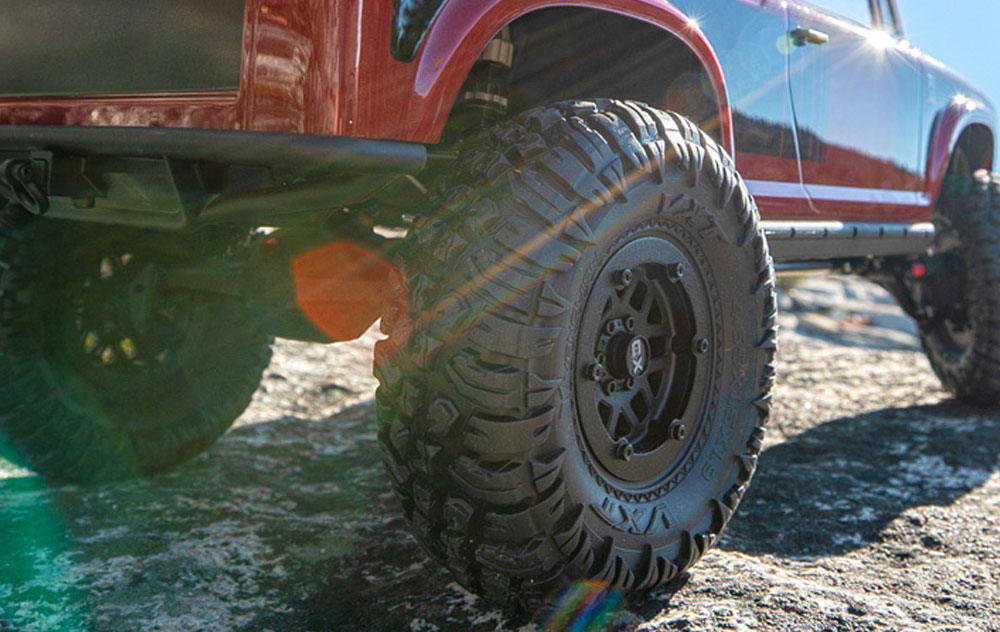

Tires and wheels
The VS4-10 includes Incision KMC Machete plastic beadlock wheels and Vanquish VXT tires. The wheels are true beadlocks and are compatible with all Incision aluminum hub options. The VXT tires are 4.65" tall and are molded in a soft and sticky natural rubber compound for performance right out of the box. Firm foams are used to provide sidewall support that helps prevent the tire from rolling over, while keeping the tread in contact with the terrain.
Product Specs
Ball Bearings
Battery
Body
Charger
Chassis
Completion Level
Differential
Drivetrain
Gear Pitch
Gear Ratio
Internal Gear Ratio
Pinion
Power Type
Product Height
Product Length
Product Width
Radio
Receiver
Scale
Servos
Shock Type
Speed Control
Spur Gear
Suspension
Vehicle Type
Wheelbase
Compatibility
No results for your given fitment filters
Video Overview
Get Info From Communities
Product Details
In The Box
- (1) VS4-10 Ultra Black Anodized - Origin Halfcab Kit
- (4) Incision KMC Machete Plastic Beadlock Wheels and Vanquish VXT Tires with Foam Inserts
- Instruction Manual and Paint Masks
Needed to Complete
- 2-3ch Radio with High-Torque Steering Servo
- 540 Size Motor with 3mm Diameter Shaft
- ESC
- Battery and Charger
- 20mm Servo Horn
- Paint, Shock Oil, Grease and Tools
