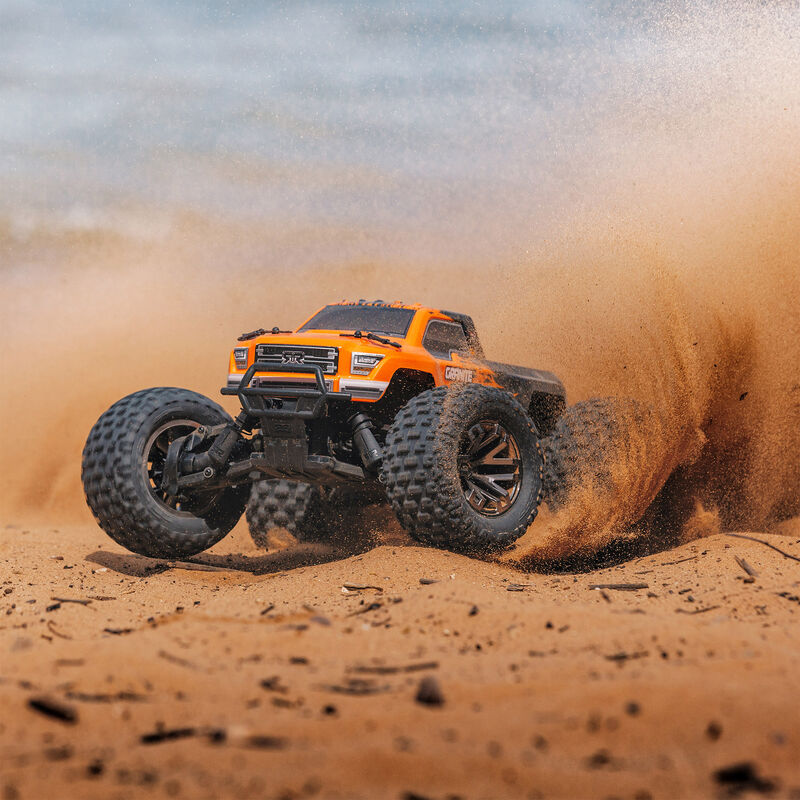

1/10 GRANITE 3S BLX 4WD Brushless Monster Truck RTR, Orange/Black

Item No.
ARRMA - ARA102666
Selected Store
1/10 GRANITE 3S BLX 4WD Brushless Monster Truck with Spektrum RTR
1/10 GRANITE 3S BLX 4WD Brushless Monster Truck with Spektrum RTR
ARA102720
View Alternate Product Details

A monster with plenty of power!

The GRANITE 4x4 BLX will rock you to the core with its jaw-dropping power and brushless performance. A brushless ESC and motor combo gives you unsurpassed speed, while a Tactic TTX300 3-channel transmitter provides confident control. The included wheelie bar is adjustable, so you can fine-tune rake settings to your preference. Drop in your choice of 6-8 cell NiMH battery, 2S LiPo, or 3S LiPo, and get bashing.

Needed to Complete
  • 5000mAh 50C 2S or 3S Hardcase LiPo with EC5 Connector
  • Suitable LiPo Charger with Banana to EC5 Adapter
  • (4) AA Batteries
What's in the box?
  • (1) GRANITE 4x4 3S BLX Monster Truck RTR
  • (1) User Manual
ARRMA 1/10 Granite 4x4 BLX Monster Truck RTR, Orange/Black

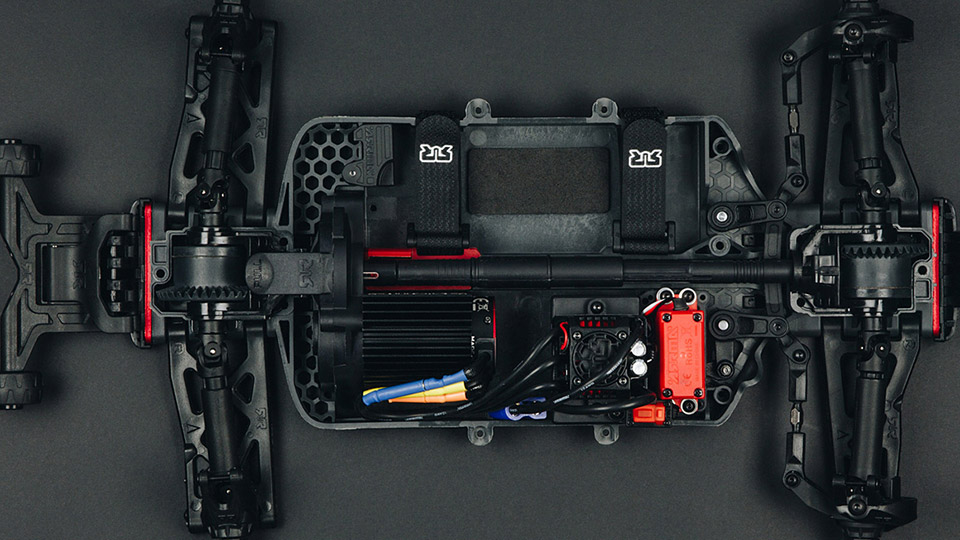

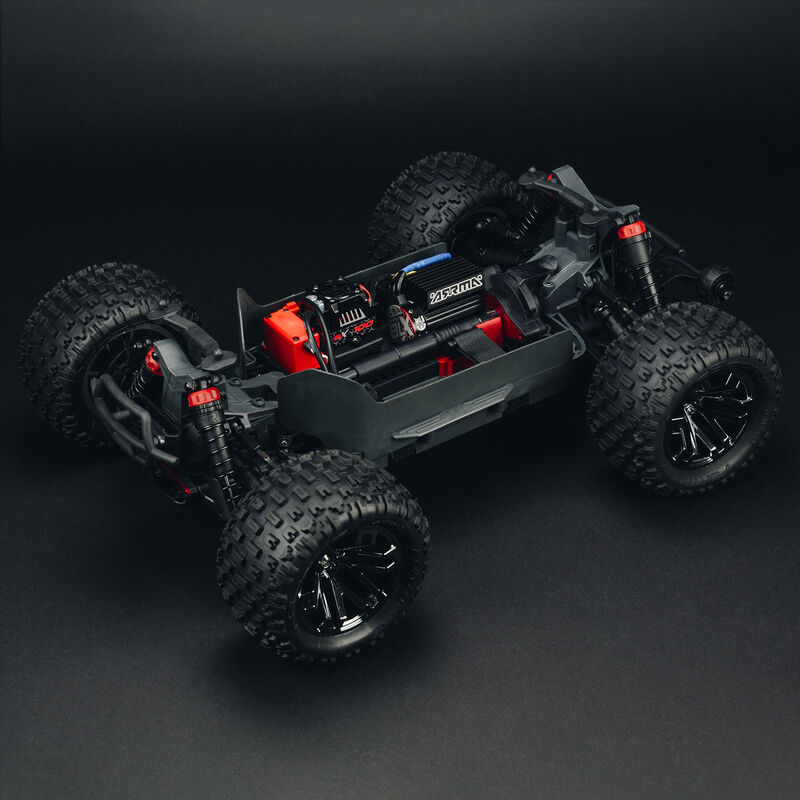

ARRMA GRANITE 4x4 3S BLX Monster Truck: RTR - Chassis

Full-time four-wheel drive (4X4) transmission with front and rear differentials. Telescopic driveshafts in the front, rear and centerline transmit drive from the slipper clutch to each wheel

ARRMA 1/10 Granite 4x4 BLX Monster Truck RTR, Orange/Black

Key Features

  • Tactic TTX300 3-channel transmitter.
  • BLX100 brushless ESC and motor combo.
  • Electronics module with BLX100 brushless ESC, ADS-7 steering servo and Tactic TR326 receiver.
  • Easy-access drivetrain.
  • Three-plate slipper clutch.
  • Servo horn with built-in servo saver.
  • Power module with pinion indicators.
  • Aluminum motor plate.
  • Adjustable wheelie bar.
  • Adjustable steel turnbuckles.
  • dBoots Fortress MT tires.
  • Multi-spoke wheels.
  • Oil-filled shocks.
  • Extended height dirt defenders.
ARRMA Differential Module
ARRMA Differential Module

Each assembled differential unit is housed in ARRMA's innovative 'yoke' design

ARRMA Electronics Module
ARRMA Electronics Module

Ultra-compact ESC, servo and receiver packaging

Waterproof BLX100 Brushless Power System
Waterproof BLX100 Brushless Power System

3S capable for incredible torque, acceleration and speed

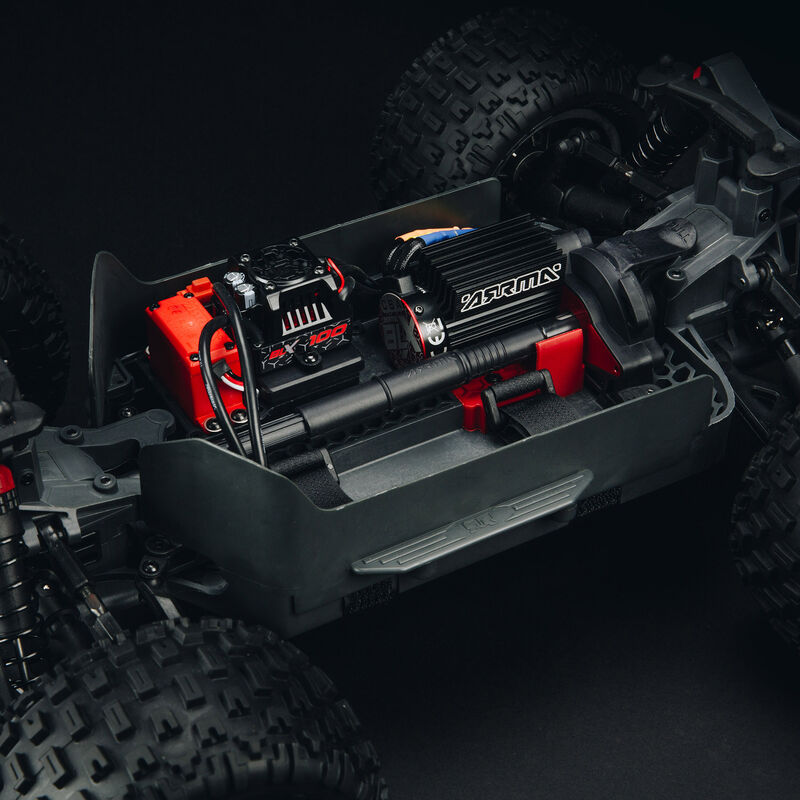

ARRMA Power Module
ARRMA Power Module

Consists of motor, motor plate, slipper clutch assembly and gear cover

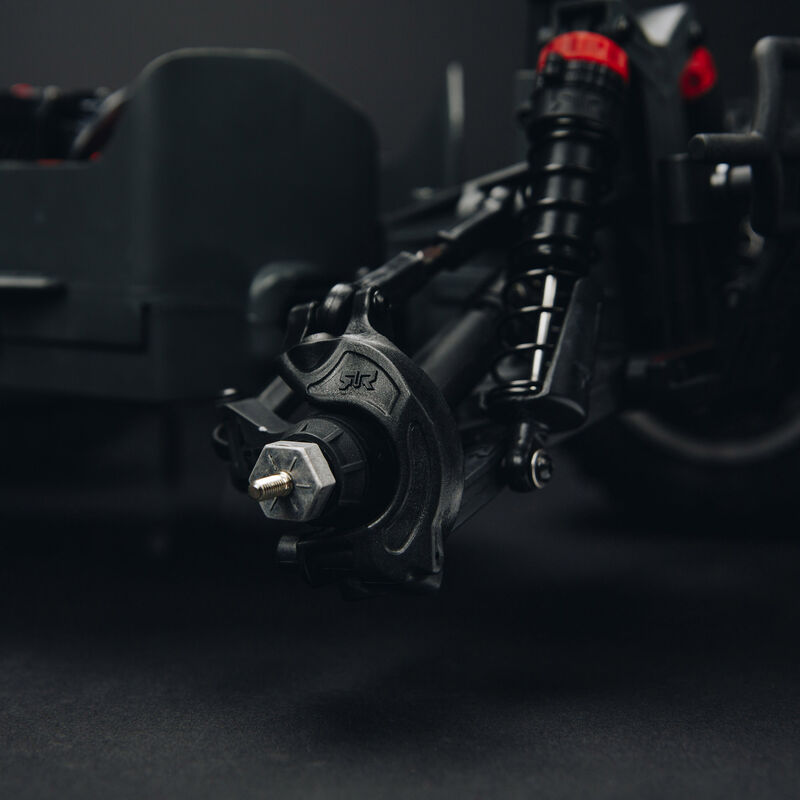

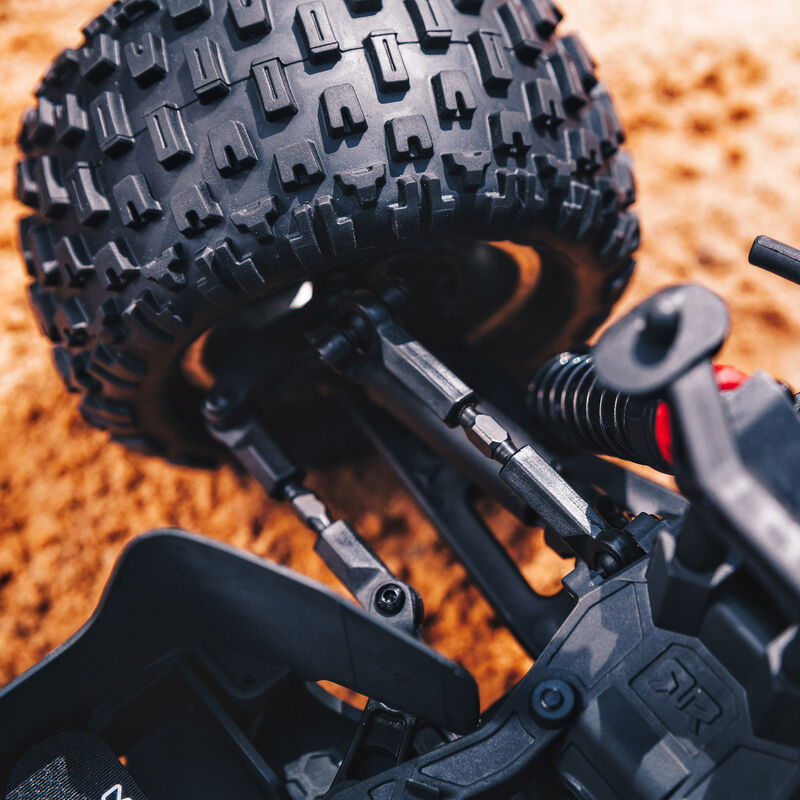

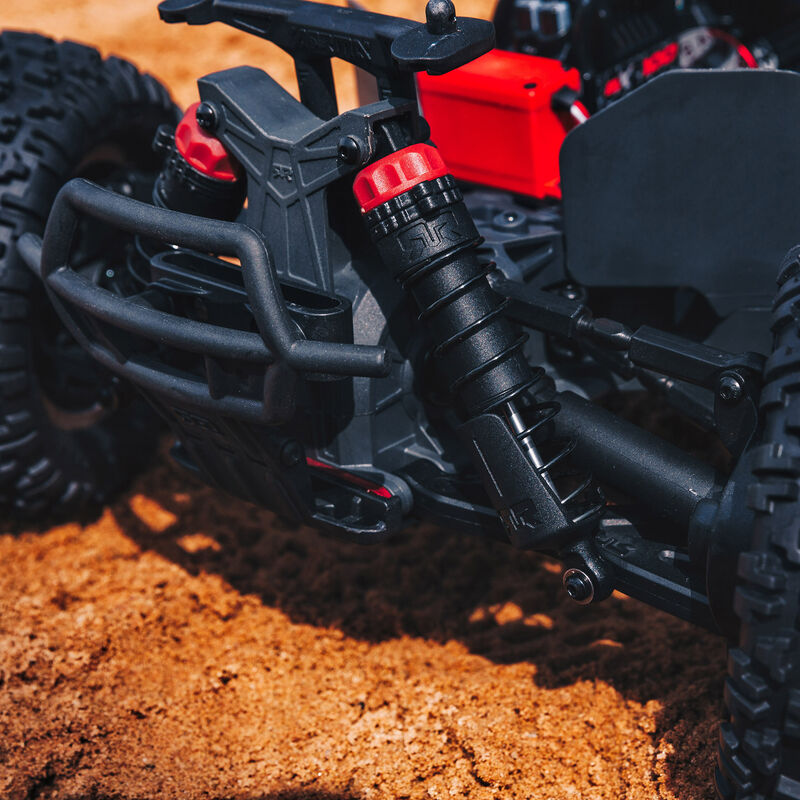

Durable Shocks & Adjustable Links
Durable Shocks & Adjustable Links

Run how you want with easy bleed shocks and length adjustable geometry

Easy-Access Slipper Clutch
Easy-Access Slipper Clutch

For quick and simple maintenance

Wheelie Bar
Wheelie Bar

With 3S brushless power, you're gonna need it

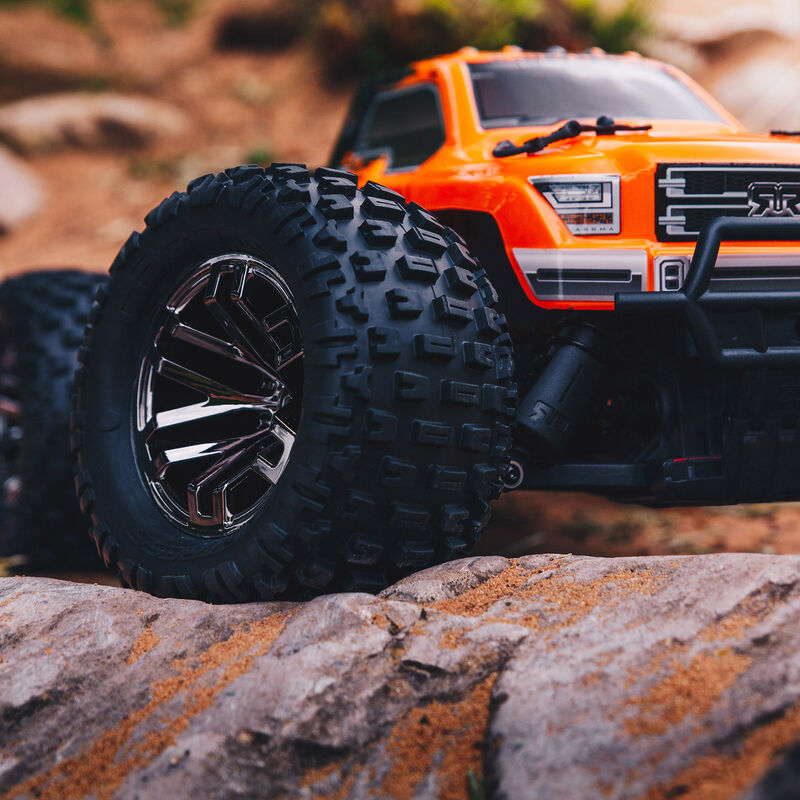

Black Chrome Wheels
Black Chrome Wheels

Fortress short course tire design

The TTX300 radio system will provide fast and consistent control
The TTX300 radio system will provide fast and consistent control

  • Using 2.4Ghz technology, your ARRMA vehicle is controlled by a wheel and trigger style radio transmitter
  • Ideal for new RC users and experienced bashing fans alike
  • Adjustable steering and throttle trim will allow you to easily tune your control experience to suit your individual needs
BLX3660 3200Kv Brushless Motor
BLX3660 3200Kv Brushless Motor

  • 3200kV brushless motor
  • 3S LiPo ready (2S and 3S LiPo compatible)
  • Beautifully etched aluminium can
  • 4-pole construction for smooth and consistent power
  • Gold 4mm bullet connectors for reliable and efficient connection to ESC
  • Finned motor can for increased heat dissipation
  • Super strong 5mm shaft
WB8 HD Wild Boarâ„¢ Driveshafts
ADS-7M 7KG Waterproof Servo

  • Strong and super-durable, the waterproof ADS-7M Metal Geared Steering Servo provides fast and reliable control
  • This super-tough steering servo can reach full articulation in 0.14 sec/0.12 sec 6V/7.2V
  • All-metal gears for increased strength and long-lasting durability
Waterproof Receiver Box / ESC Tray
BLX100 Waterproof ESC

  • Waterproof and dust proof design
  • 100A, 3S LiPo ready (2S and 3S LiPo compatible)
  • Fitted with reliable EC5 battery connector
  • Integrated fan for reduced heat during extreme running
  • Gold 4mm bullet connector for motor wires
  • Low voltage cut off and thermal overload protection
  • User programmable punch and brake settings

Product Specs

Completion Level
Ready-To-Run
Drivetrain
4WD
Motor Type
Brushless
Power Type
Electric
Product Height
7.7" (196mm)
Product Length
18.74" (476mm)
Product Weight
6lbs 4oz / 2.83kg (No Battery)
Product Width
13.5" (342mm)
Scale
1/10
Suspension
Independent
Vehicle Type
Monster Truck
Wheel Type
MT (2.8" 14mm hex)
Wheelbase
11.3" (287mm)
