1/10 Audi Quattro AZ 4WD TT-02 Kit

4X4
Brushed
Item No.
Tamiya - TAM58667
4.5
$142.80
RC Club points earned on this item shown at checkout.
Product $142.80
Add Ons
Estimated Total: $142.80
Estimated Total: $142.80
The link to 1/10 Audi Quattro AZ 4WD TT-02 Kit has been copied
Selected Store

TT-02: Adaptable, Balanced Shaft Driven 4WD

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

  • Body Is Molded Accurately In Durable Polycarbonate
  • Features Separate Metal-Plated ABS Parts
  • 5-Spoke Wheels Are Molded In Silver
  • Includes Tamiya Torque Tuned Motor
  • Includes Tamiya TBLE-02S ESC

Features

  • A2 body is molded accurately in durable polycarbonate
  • Features separate metal-plated ABS parts for front and rear light cases, plus fog lamps. Side mirrors, wing and wing caps are molded in white ABS
  • Light cases are compatible with separately sold LEDs; fog lamps are not
  • 5-spoke wheels are molded in silver, and paired with racing radial tires
  • The TT-02 chassis is an adaptable and balanced design with excellent stability, plus features such as identical suspension arm and upright components for ease of assembly
  • 4-bevel differential gears and 4-wheel double wishbone suspension
  • Includes Tamiya Torque Tuned Motor
  • Includes Tamiya TBLE-02S ESC, capable of running sensor brushless motors and brushed motors alike

Product Specs

Battery
Sold Separately
Battery Tray Dimensions
5.3 x 1.8 x 0.9" (135 x 46 x 24mm)
Body
Clear polycarbonate
Bushing Material
Plastic
Charger
Sold Separately
Chassis
Tamiya TT-02 ABS resin
Completion Level
Kit
Differential
Bevel gear
Drivetrain
4WD
Manufacturer #
58667
Motor Size
540
Motor Type
Brushed
Power Type
Electric
Product Length
18" (458mm)
Product Width
7.4" (187mm)
Radio
Sold Separately
Receiver
Sold Separately
Scale
1/10
Shock Type
Friction
Speed Control
Included
Suspension
Four wheel double wishbone
Tire Tread
Radial
Vehicle Type
Rally Car
Water-Resistant
No
Wheel Type
5-spoke nylon

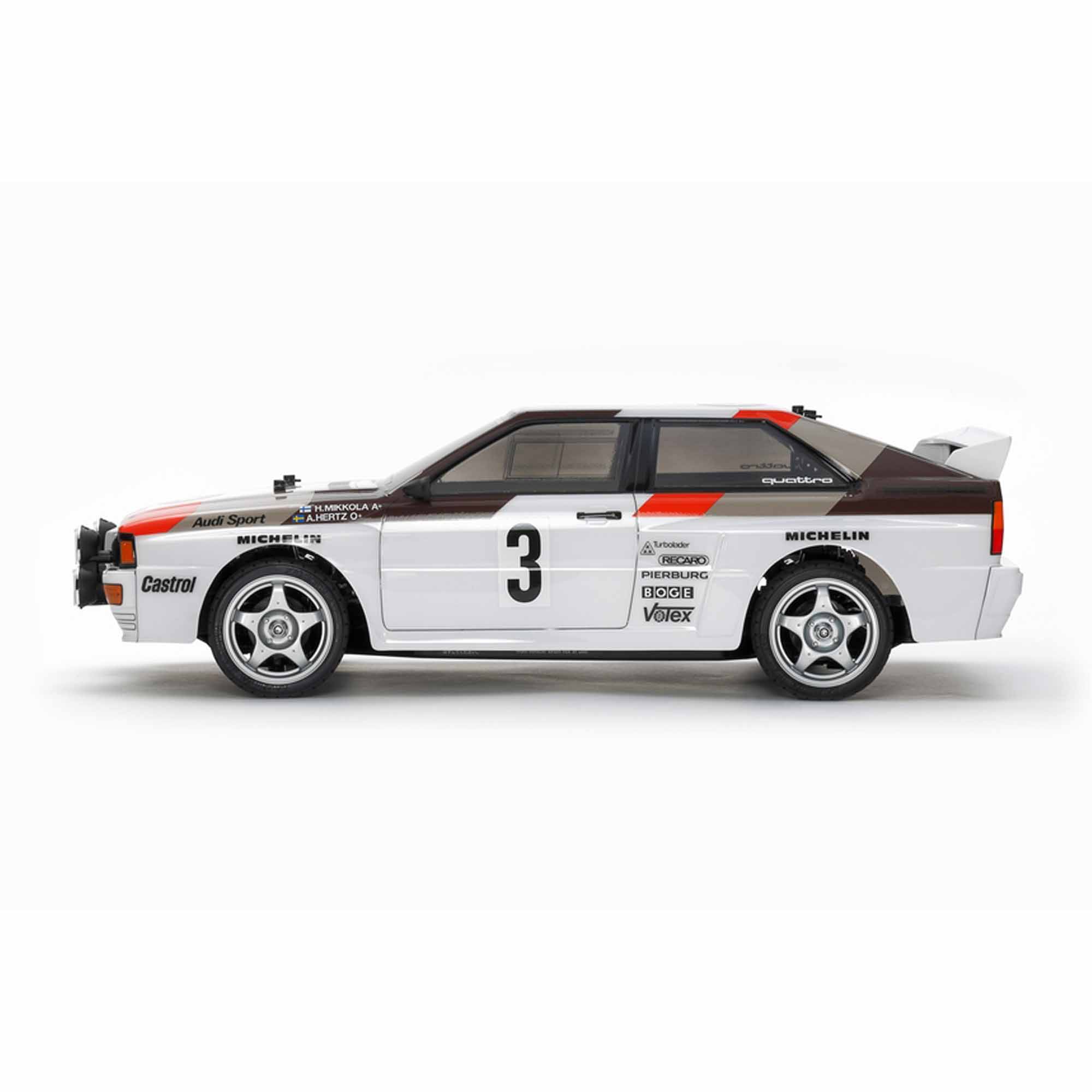

The Audi Quattro A2 is an iconic Rally Race Car that made its mark in the 1980’s. Tamiya’s 1/10 scale radio control replica brings rally racing fun to hobbyists on the adaptable and easy-driving TT-02 chassis.

Product Details

icon-box
In The Box
  • (1) 1/10 Audi Quattro AZ 4WD TT-02 Kit
  • (1) Tamiya Torque Tuned Motor
  • (1) TBLE-02S Electronic Speed Control
  • (1) 1/10 Audi Quattro Manual
icon-how-to
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) Standard-Size Steering Servo
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger
