Fusion 270 BNF Basic with SAFE
Selected Store
The Blade® Fusion™ 270 BNF® Basic helicopter begins a new era of high-end Blade products, with all the features, style, and performance intermediate through advanced pilots demand. This powerhouse features a lightweight and strong carbon fiber frame and landing gear, black anodized aluminum components, and an all-new, high-torque power system optimized for 4S LiPo power that can be run with either 3S or 4S LiPo batteries. Combined with Spektrum™ metal gear servos, helical main gear and the durable belt driven tail design, there is nothing stopping you from trying the most aggressive maneuvers imaginable. If you push things a little too far, the Fusion 270 is equipped with a Spektrum AR636A flight controller with SAFE® Technology Panic Recovery mode to prevent a crash. You can even practice flying this heli in the RealFlight simulator! For seasoned pilots, the Fusion 270 delivers leading-edge heli action straight out of the box leaving the competition missing in action.
Video Overview
- 6+ Channel Spektrum™ Transmitter
- 1300mAh 11.1V-14.8V 3S-4S 30C LiPo Flight Battery
- Suitable Li-Po Battery Charger
- (1) Fusion 270 BNF Basic Helicopter
- (1) Carbon Fiber Main and Tail Blades
- (1) Spektrum AR636A Flight Controller
- (1) 45A ESC with Built in Governor
- (1) 2950Kv Brushless Outrunner Motor
- (4) Spektrum Metal Gear Servos
- (1) User Manual
SAFE® Technology with Panic Recovery
The Panic Recovery feature allows pilots to prevent a crash and recover the heli to level flight at the press of a button.
![SAFE Technology with Panic Recovery](/on/demandware.static/-/Sites-horizon-master/default/Scene7Images/BLH5350_PP_1.jpg)

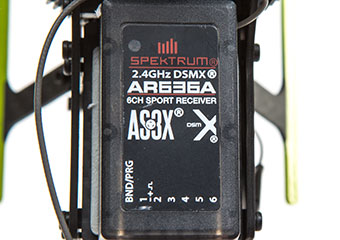

Spektrum™ AR636 Receiver
Newly refined algorithms within this receiver and 6 axis flybarless system make the Fusion 270 handle with cutting -edge precision and stability. New aluminum lower case on the receiver offers improved dampening increases tolerance to vibration.
![Spektrum™ AR636 Receiver](/on/demandware.static/-/Sites-horizon-master/default/Scene7Images/BLH5350_PP_2.jpg)
Carbon Fiber & Anodized Aluminum Construction
Stylish black anodized head, swashplate, servo block, and blade grips give a high-end finish that stands out from the pack. Rigid carbon fiber and aluminum frame construction features carbon fiber landing gear for a new stance that is light and durable.
![Carbon Fiber & Anodized Aluminum Construction](/on/demandware.static/-/Sites-horizon-master/default/Scene7Images/BLH5350_PP_3.jpg)
Optimized Servo Geometry
Proven optimized servo geometry provides exceptional response and control, while improving servo efficiency and minimizing mechanical loss to the swashplate.
![Optimized Servo Geometry](/on/demandware.static/-/Sites-horizon-master/default/Scene7Images/BLH5350_PP_4.jpg)

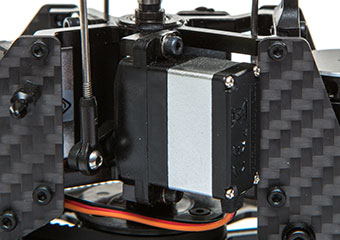

Spektrum™ High-Speed Metal Geared Servos
High speed metal geared servos drive the cyclic and tail, featuring robust gear movement and digital precision to meet the demands of this flybarless machine.
![Spektrum™ High-Speed Metal Geared Servos](/on/demandware.static/-/Sites-horizon-master/default/Scene7Images/BLH5350_PP_5.jpg)
Oversized Mechanics
Triple ball-bearing support offers the oversized main shaft, spindle and blade grip components the ability to deliver the precision of Blade optimized servo geometry even under heavy flight loads.
![Oversized Mechanics](/on/demandware.static/-/Sites-horizon-master/default/Scene7Images/BLH5350_PP_6.jpg)
Belt-driven Tail
A robust belt driven tail design provides rock solid tail performance and control, while minimizing collateral gear damage in a crash.
![Belt-driven Tail](/on/demandware.static/-/Sites-horizon-master/default/Scene7Images/BLH5350_PP_7.jpg)
Tail Case Assembly
Newly designed tail case and new metal pulley tail shaft with larger bearings reduces vibrations and adds durability and support.
![New Tail Case Assembly](/on/demandware.static/-/Sites-horizon-master/default/Scene7Images/BLH5350_PP_8.jpg)
45A ESC with Governor
The all new, 45A brushless ESC with built in governor provides reliable performance tuned for a 4S power system.*
*The Fusion 270 is optimized for a 4S LiPo battery, but can be run on either a 3S or 4S battery.![New ESC](/on/demandware.static/-/Sites-horizon-master/default/Scene7Images/BLH5350_PP_9.jpg)
Redefined Power System
Optimized power system utilizes common 4S 1300mAh LiPo batteries* to drive a top-mounted 2950Kv brushless motor.
*The Fusion 270 is optimized for a 4S LiPo battery, but can be run on either a 3S or 4S battery.![Redefined Power System](/on/demandware.static/-/Sites-horizon-master/default/Scene7Images/BLH5350_PP_10.jpg)
Helical Main Gear
Low wear and quiet main gear provides consistent power and rotation in a more durable design.
![Helical Main Gear](/on/demandware.static/-/Sites-horizon-master/default/Scene7Images/BLH5350_PP_11.jpg)
High Visibility
Newly designed fiberglass canopy features a bright trim scheme and matching vertical fin for unsurpassed visibility.
![High Visibility](/on/demandware.static/-/Sites-horizon-master/default/Scene7Images/BLH5350_PP_12.jpg)
