- Speed: @4.8V .08sec/60' / @6.0V .06sec/60'
- Torque: @4.8V 111oz/in / @6.0V 153oz/in
- Voltage Range is 4.8V - 8.4V
- Full Programmability
- IP-67 Waterproof Rated
- Ultra Efficient Brushless Motor
- 32-Bit MCU Technology / 4096 Resolution
- Smart Sense Technology for Servo Analytics
- High Response, High Resolution Circuitry
- Full Metal Case
- 1M Cycle, Long-Life Potentionmeter
- H25T -Industry Standard Output Spline
- Compatible with Fully Charged 2S LiPo Batteries
Product Specs
Application
1/8 Cars and Trucks
Bearing
Dual Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Current Draw Idle
35mA
Current Draw Stall
4500mA
Deadband
1µs
Gear Type
Metal
Input Voltage
6.0V ~ 7.4V
Maximum Servo Speed
0.08 sec/60 deg @ 6.0V, 0.06 sec/60 deg @ 7.4V
Maximum Servo Torque
111oz/in @ 6.0V, 153oz/in @ 7.4V
Motor Type
Brushless

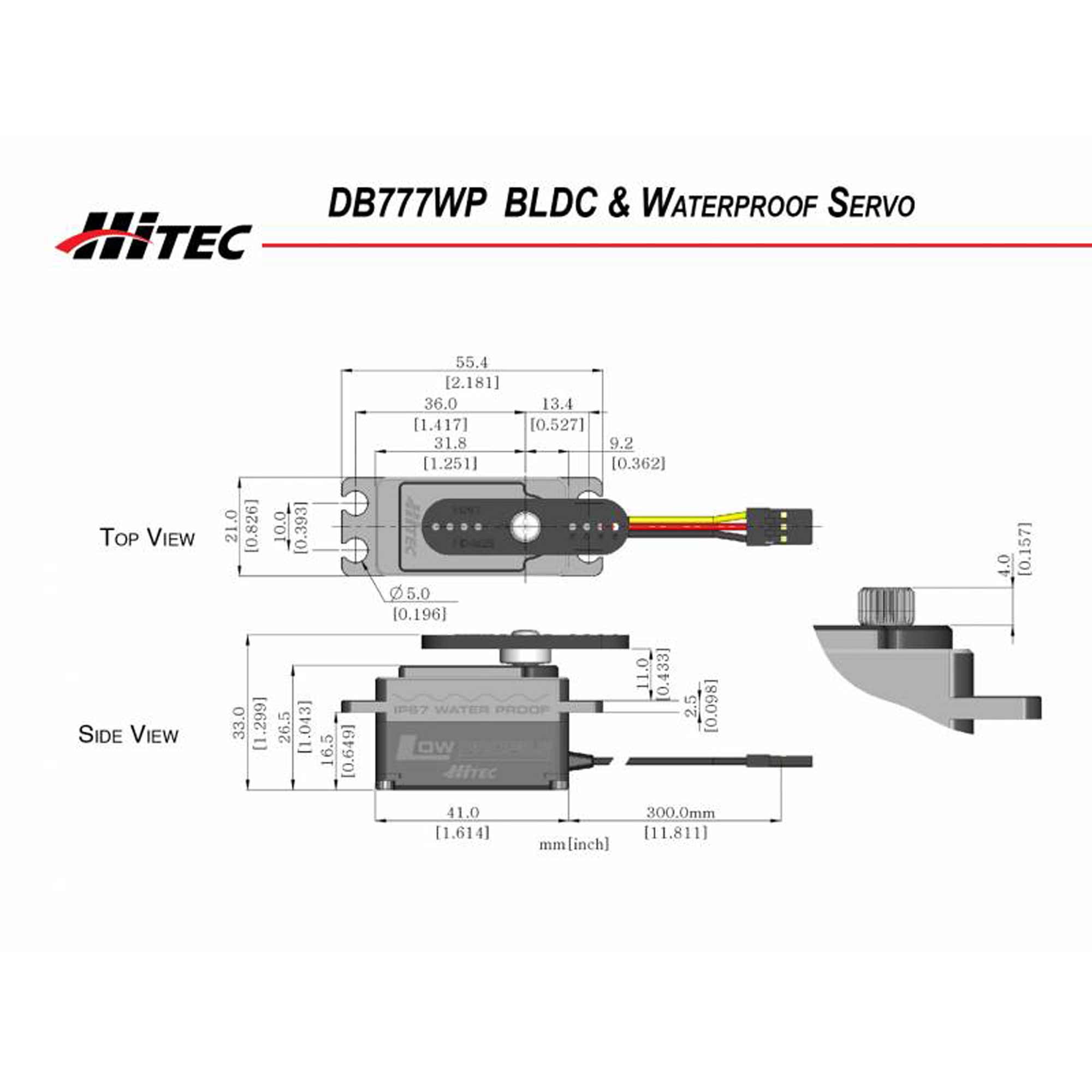

Product Height
1.04" (26 mm)
Product Length
1.61" (41 mm)
Product Weight
2.4oz (68g)
Product Width
0.83" (21 mm)
Programmable
Yes
Servo Operating Voltage
6.0 - 7.4V (HV)
Servo Size Category
Standard
Servo Type
Digital
Spline Count
25 - Tooth
Water-Resistant
Yes
Wire Gauge
20 AWG
Compatibility
Tamiya - TAM47443
Tamiya - TAM58631A
Tamiya - TAM58702A
Tamiya - TAM58618A
Tamiya - TAM58708A
Tamiya - TAM58667A
Tamiya - TAM58633A
Tamiya - TAM58678
RJ Speed - RJS2003
RJ Speed - RJS2002
RJ Speed - RJS2021
RJ Speed - RJS2030
RJ Speed - RJS2004
RJ Speed - RJS2001
RJ Speed - RJS2011
RJ Speed - RJS2033
RJ Speed - RJS2020
RJ Speed - RJS2006
Tamiya - TAM58687A
Tamiya - TAM58681
Tamiya - TAM58470A
Tamiya - TAM58569
Tamiya - TAM58698A
Tamiya - TAM58669
Tamiya - TAM58639A
Tamiya - TAM58692
RJ Speed - RJS2104
Tamiya - TAM58649A
Tamiya - TAM47446
Tamiya - TAM58630A
Tamiya - TAM47429A
Tamiya - TAM58690
Tamiya - TAM47471
Tamiya - TAM47451
Tamiya - TAM46702
Tamiya - TAM58416
Tamiya - TAM58374
Kyosho - KYO34425T1
RJ Speed - RJS2036
RJ Speed - RJS2014
Tamiya - TAM58384
Tamiya - TAM58636
Tamiya - TAM58632A
Tamiya - TAM58706A
Tamiya - TAM58674A
Tamiya - TAM47433A
Tamiya - TAM58650A
Tamiya - TAM58695A
Calandra Racing Concepts (CRC) - CLN3220
Tamiya - TAM58683
Tamiya - TAM58660
Tamiya - TAM58653
Tamiya - TAM58646
Tamiya - TAM57409
Tamiya - TAM46706
Tamiya - TAM57412
Tamiya - TAM58676
Tamiya - TAM48216
Spektrum - SPMSLR300
Spektrum - SPMSR215
Spektrum - SPMSR315
Spektrum - SPMSTX300
Highlights of the D-Series Servos
Get Info From Communities
Hitec is excited to introduce the new addition to the D-Series servo line, the high-performance, low profile DB777WP. Designed with a full metal, IP-67 rated waterproof case, this advanced, programmable servo is our fastest, low profile option for 1/10 buggy and touring car drivers. The DB777WP is powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter), bringing high resolution, rapid response, and patented Smart Sense technology to kick your ride into top gear!
Product Details
In The Box
- (1) DB777WP Standard Digital Brushless Waterproof Metal Gear Surface Servo
